"Machined race needle bearing
Retained (caged) needle rolling elements
Annular lubrication groove
Single rubber-lipped seal with lip turned in
"

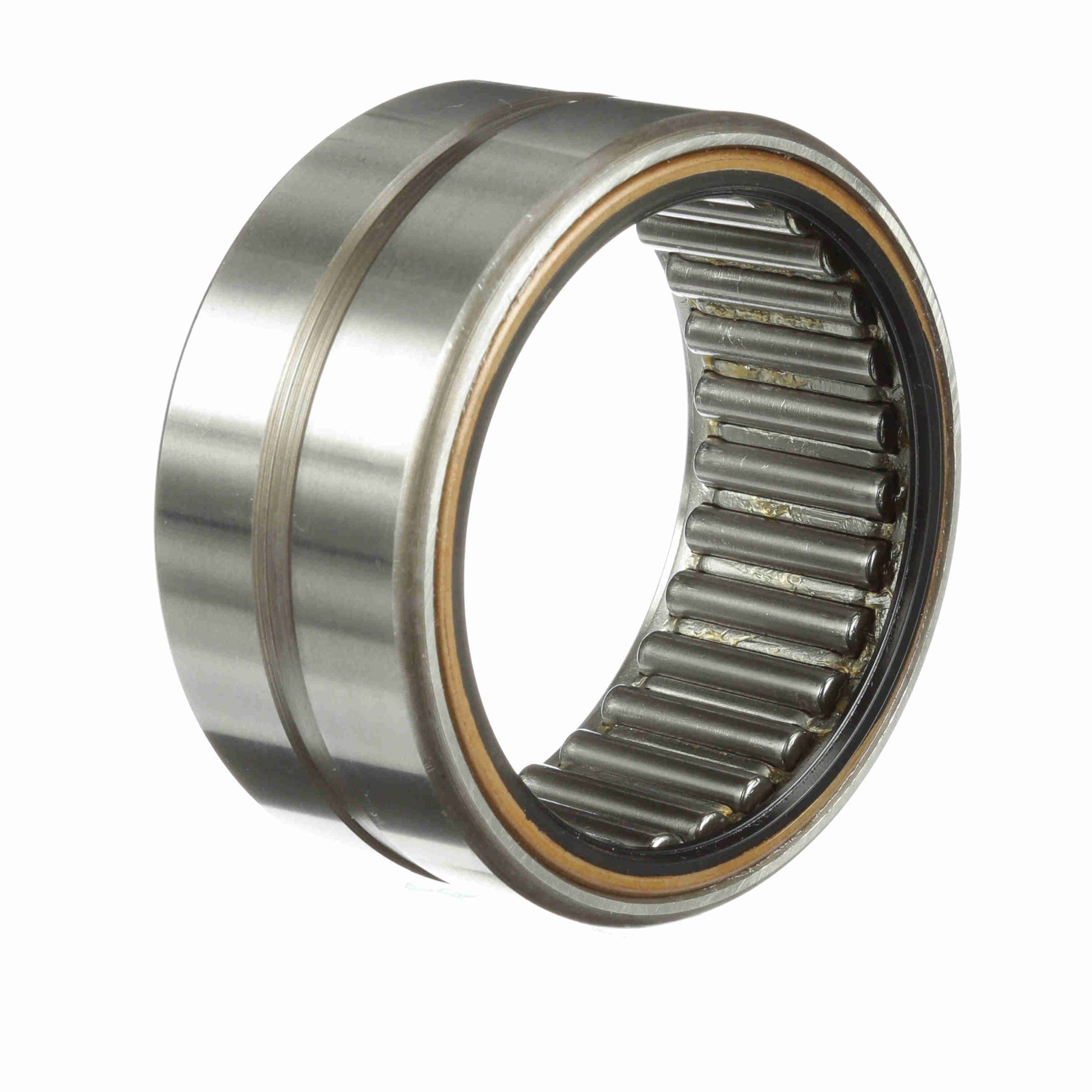

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 48 S
General Specifications
| UPC: | 726166068011 | Weight: | 1.36 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.125 | Bore Size - Inch: | 3 in |
| Outside Diameter - Inch: | 3.75 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Duplexing: | No | Static Load Rating (lb): | 52,300 lb |
| Dynamic Load Rating: | 26,100 | Full Complement/Caged: | Caged |
| Sealed: | Sealed - One Side | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 1,270 | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 38, MI 39, MI 40 |
| Flanges: | No Flanges | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes |
