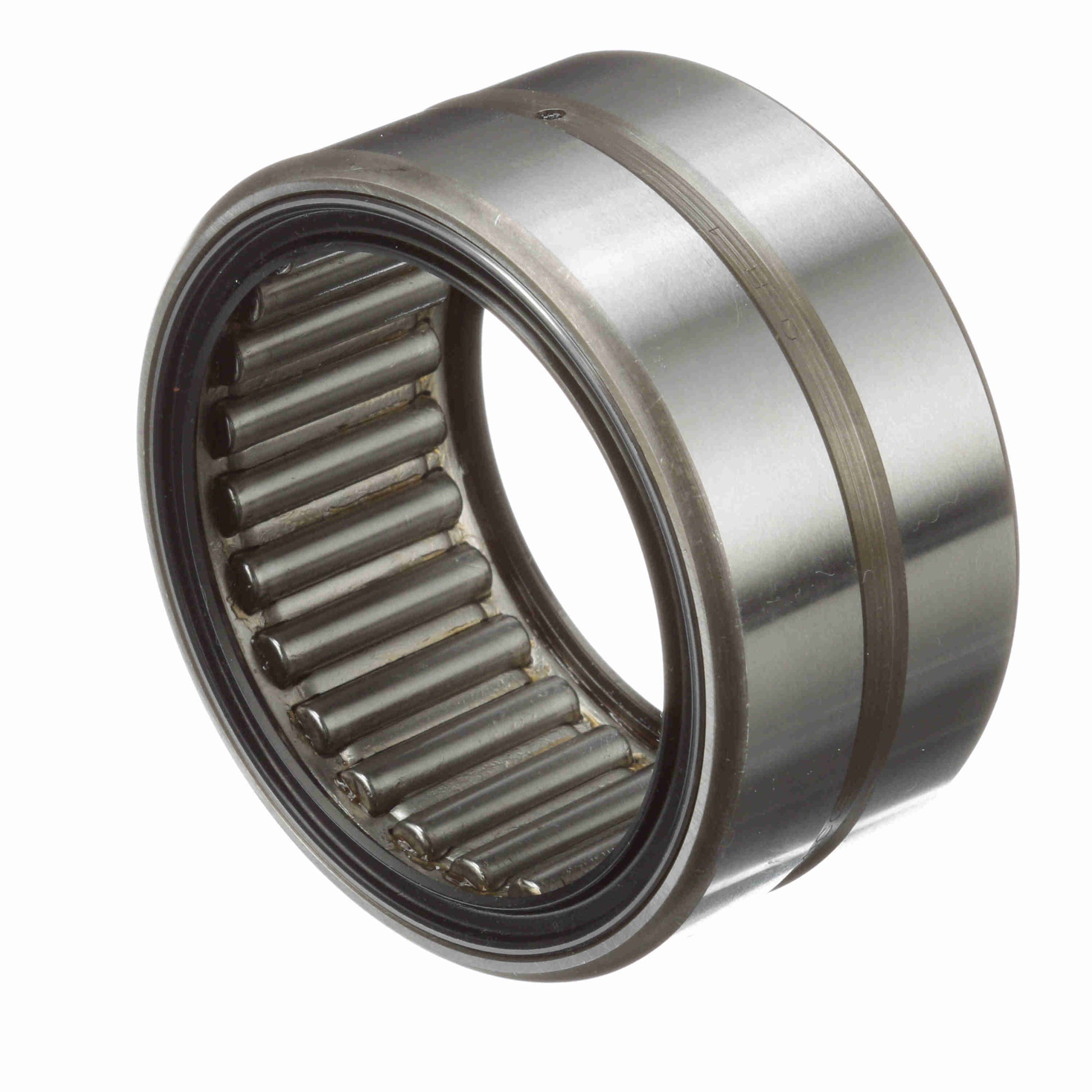

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 44 RSS
General Specifications
| UPC: | 726166067908 | Weight: | 1.33 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.5 in | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.7500 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Duplexing: | No | Sealed: | Sealed - Both Sides |
| Speed (Max) Grease: | 1,390 | Dynamic Load Rating: | 24,500 |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 46,700 lb |
| Full Complement/Caged: | Caged | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 35, MI 36 |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | Yes |
