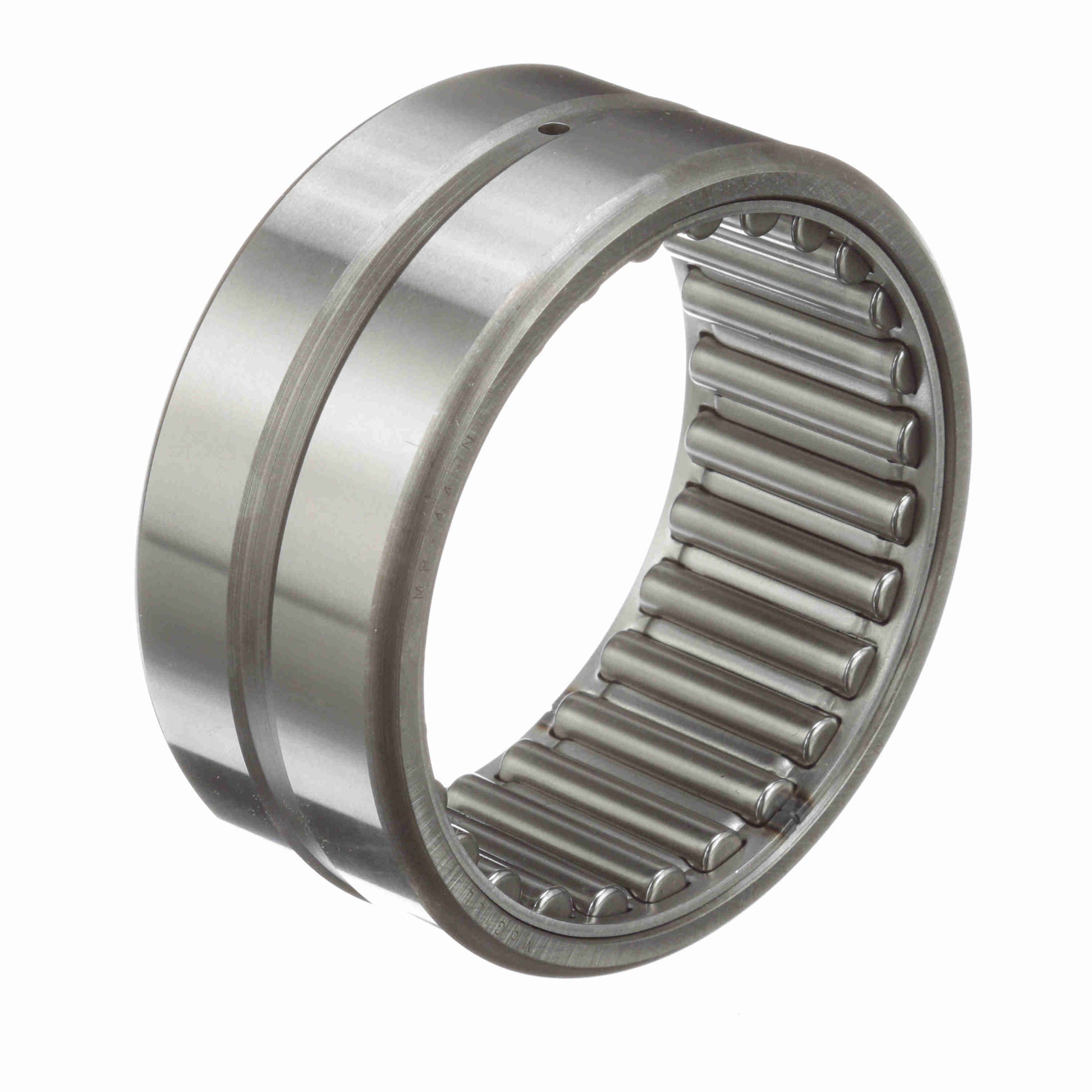

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 44 N
General Specifications
| UPC: | 726166067922 | Weight: | 1.15 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.5 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 3.5 in | Hole Diameter: | 0.125 |
| Bore Size - Inch: | 2.7500 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Bore Type: | Straight |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Misalignment: | No |
| Sealed: | None | Platform: | Cagerol Bearing |
| Duplexing: | No | Speed (Max) Oil: | 4,370 |
| Static Load Rating (lb): | 46,700 lb | Speed (Max) Grease: | 2,200 |
| Dynamic Load Rating: | 24,500 | Full Complement/Caged: | Caged |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Related Inner Ring: | MI 36 N |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | Yes |
