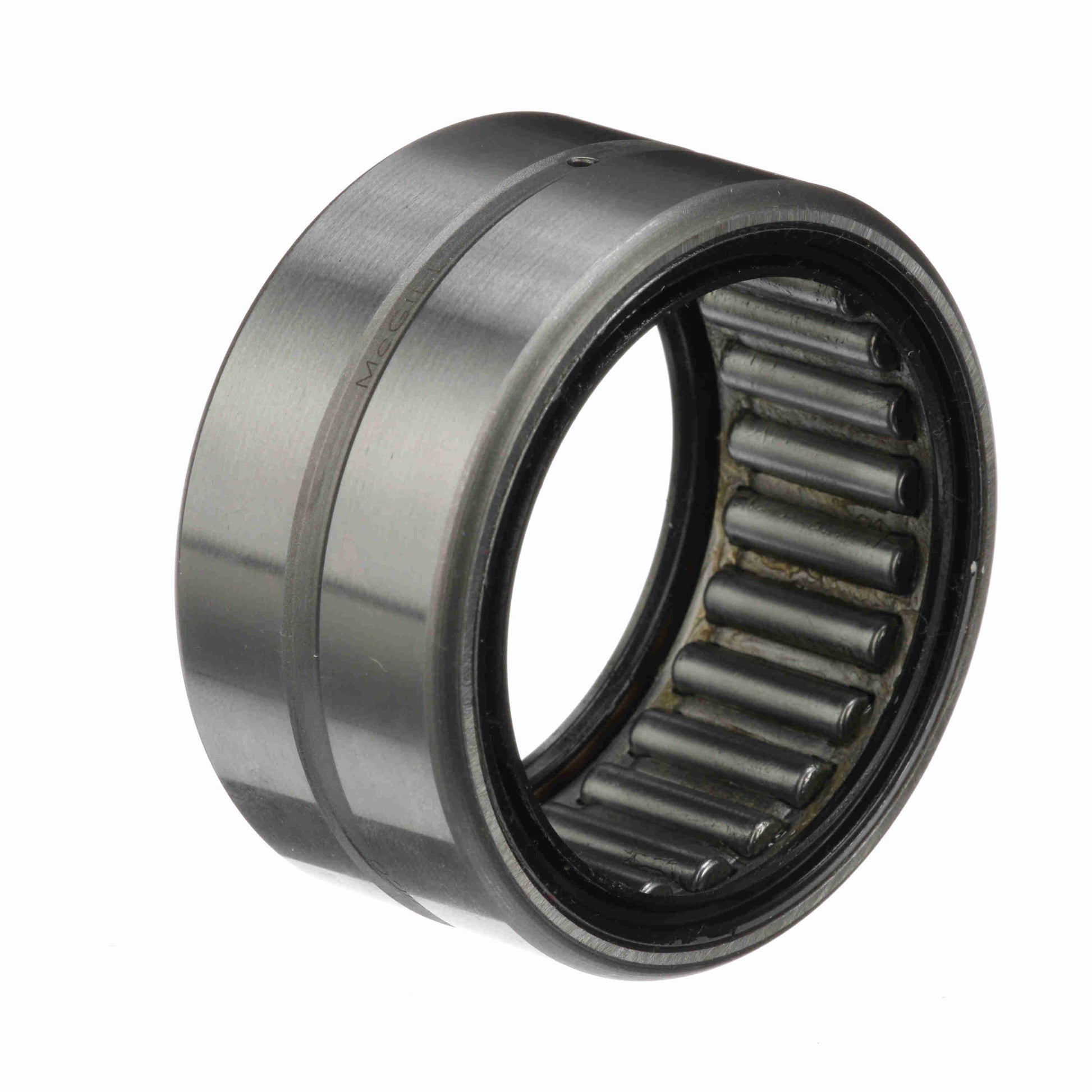

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 32 RSS
General Specifications
| UPC: | 726166067267 | Weight: | 0.50 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 2 in |
| Outside Diameter - Inch: | 2.5625 in | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.06 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Seal Type: | Rubber Lip |
| Number of Rows: | 1 | Bore Type: | Straight |
| Speed (Max) Grease: | 1,900 | Platform: | Cagerol Bearing |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 20,700 lb |
| Sealed: | Sealed - Both Sides | Dynamic Load Rating: | 12,000 |
| Duplexing: | No | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 25 |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Retainer: | Yes |
