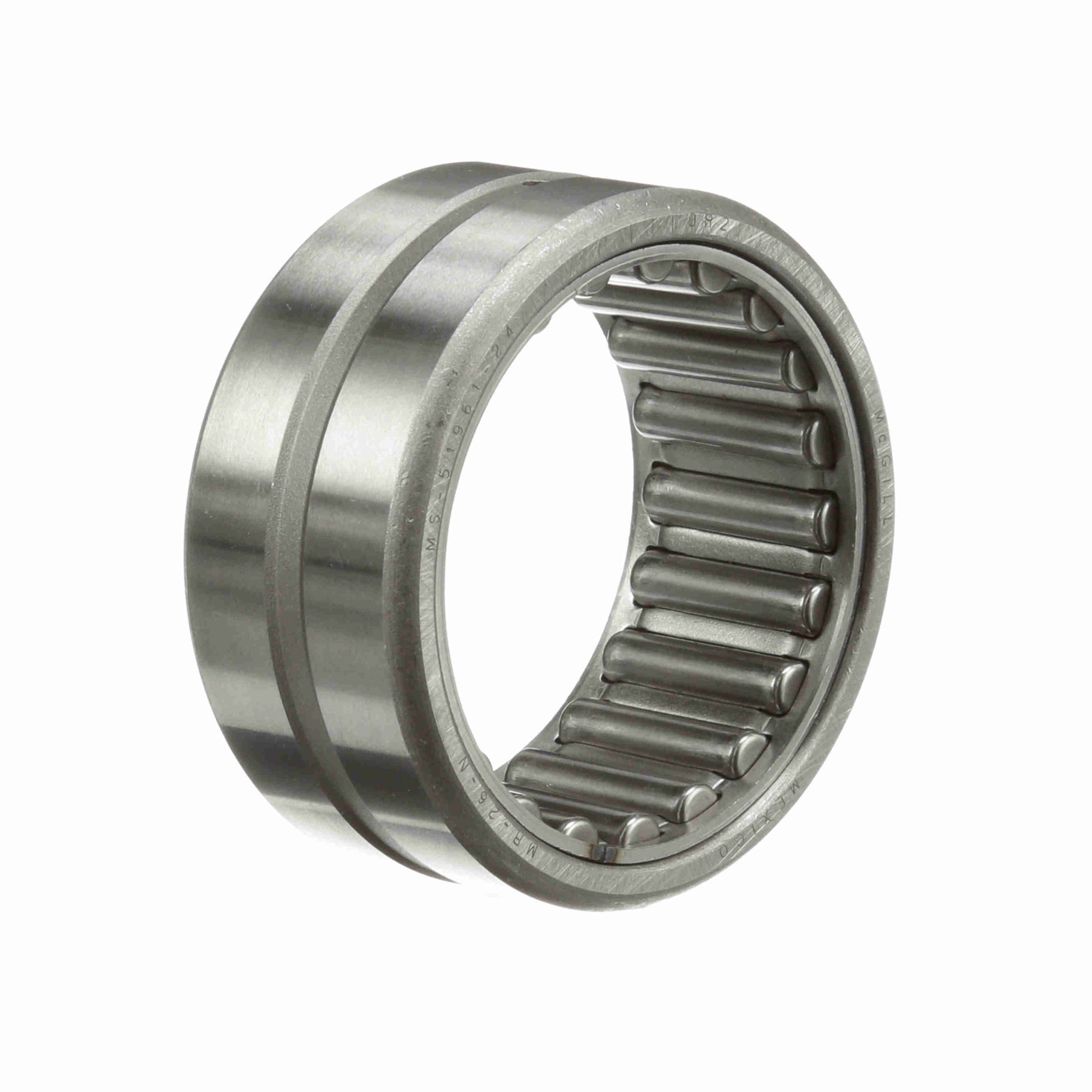

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 26 N
General Specifications
| UPC: | 726166066611 | Weight: | 0.37 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 1.6250 in |
| Outside Diameter - Inch: | 2.1875 in | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Narrow |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Speed (Max) Oil: | 7,400 | Speed (Max) Grease: | 3,700 |
| Dynamic Load Rating: | 10,600 | Sealed: | None |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 16,400 lb |
| Duplexing: | No | Platform: | Cagerol Bearing |
| Flanges: | No Flanges | Related Inner Ring: | MI 21 N |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | Yes |
