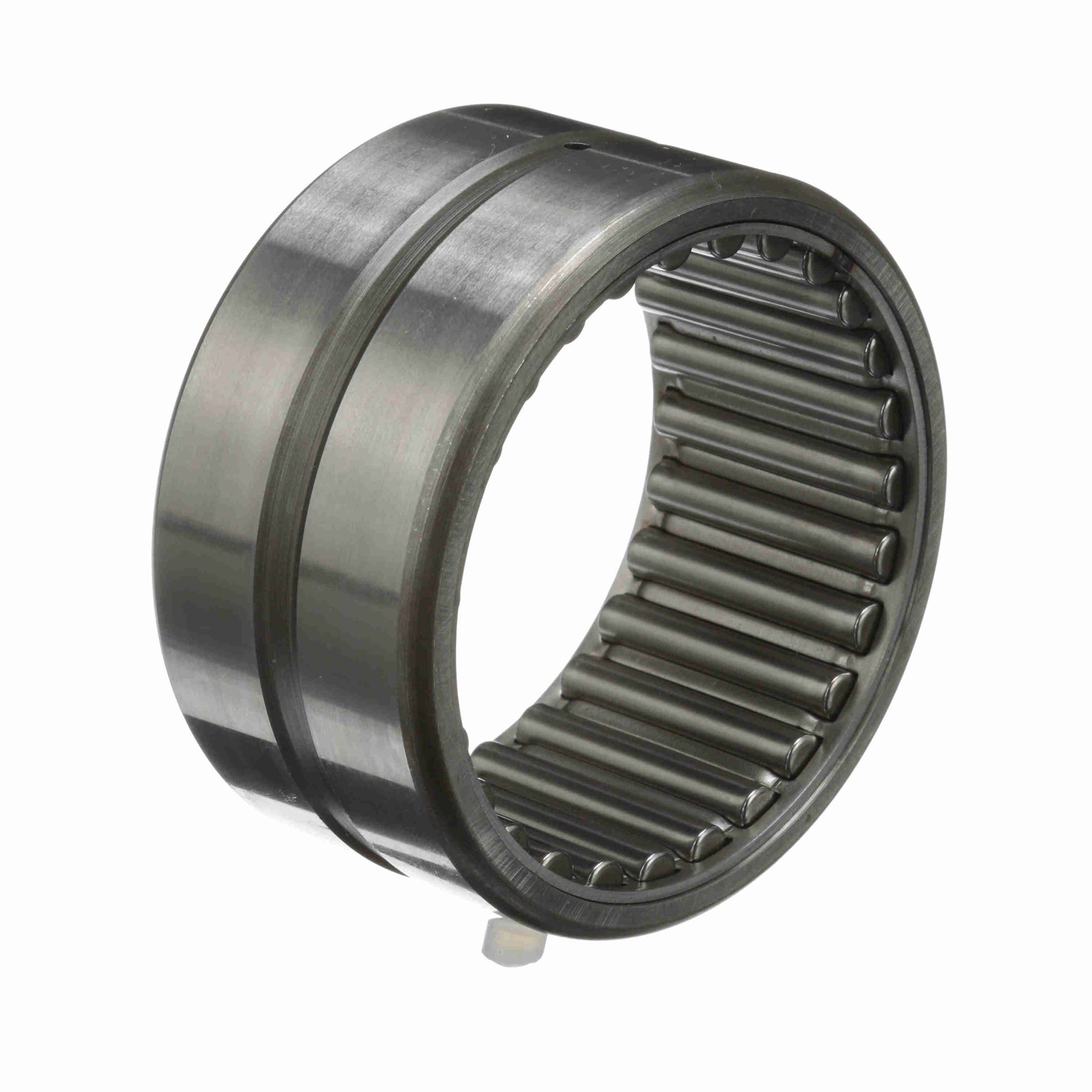

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 24 N
General Specifications
| UPC: | 726166066444 | Weight: | 0.34 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.06 in | Outside Diameter - Inch: | 2.0625 in |
| Bore Size - Inch: | 1.5000 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Narrow | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Sealed: | None | Platform: | Cagerol Bearing |
| Speed (Max) Oil: | 8,000 | Full Complement/Caged: | Caged |
| Speed (Max) Grease: | 4,000 | Static Load Rating (lb): | 15,500 lb |
| Dynamic Load Rating: | 10,300 | Duplexing: | No |
| Standard Met: | ABMA, ISO, MS 51961-21 | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 20 N | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Flanges: | No flange |
| Enclosure: | Open | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | Yes |
