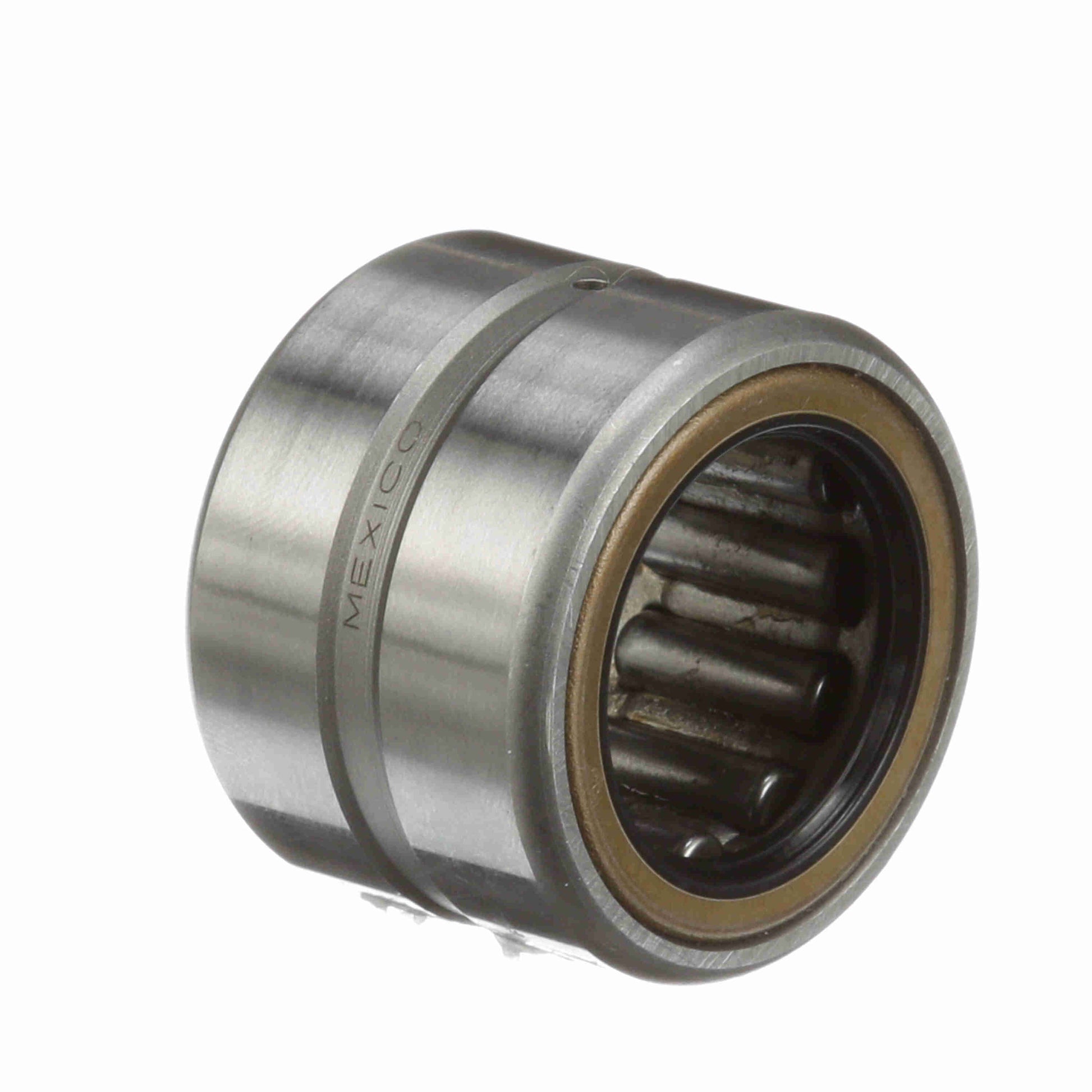

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 14 SS
General Specifications
| UPC: | 726166065188 | Weight: | 0.21 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 0.8750 in |
| Outside Diameter - Inch: | 1.375 in | Hole Diameter: | 0.079 |
| Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Misalignment: | No | Radial Clearance: | Normal |
| Static Load Rating (lb): | 6,000 lb | Full Complement/Caged: | Caged |
| Speed (Max) Oil: | 4,400 | Platform: | Cagerol Bearing |
| Duplexing: | No | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating: | 5,280 | Speed (Max) Grease: | 2,200 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Flanges: | No flange |
| Related Inner Ring: | MI 10 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
