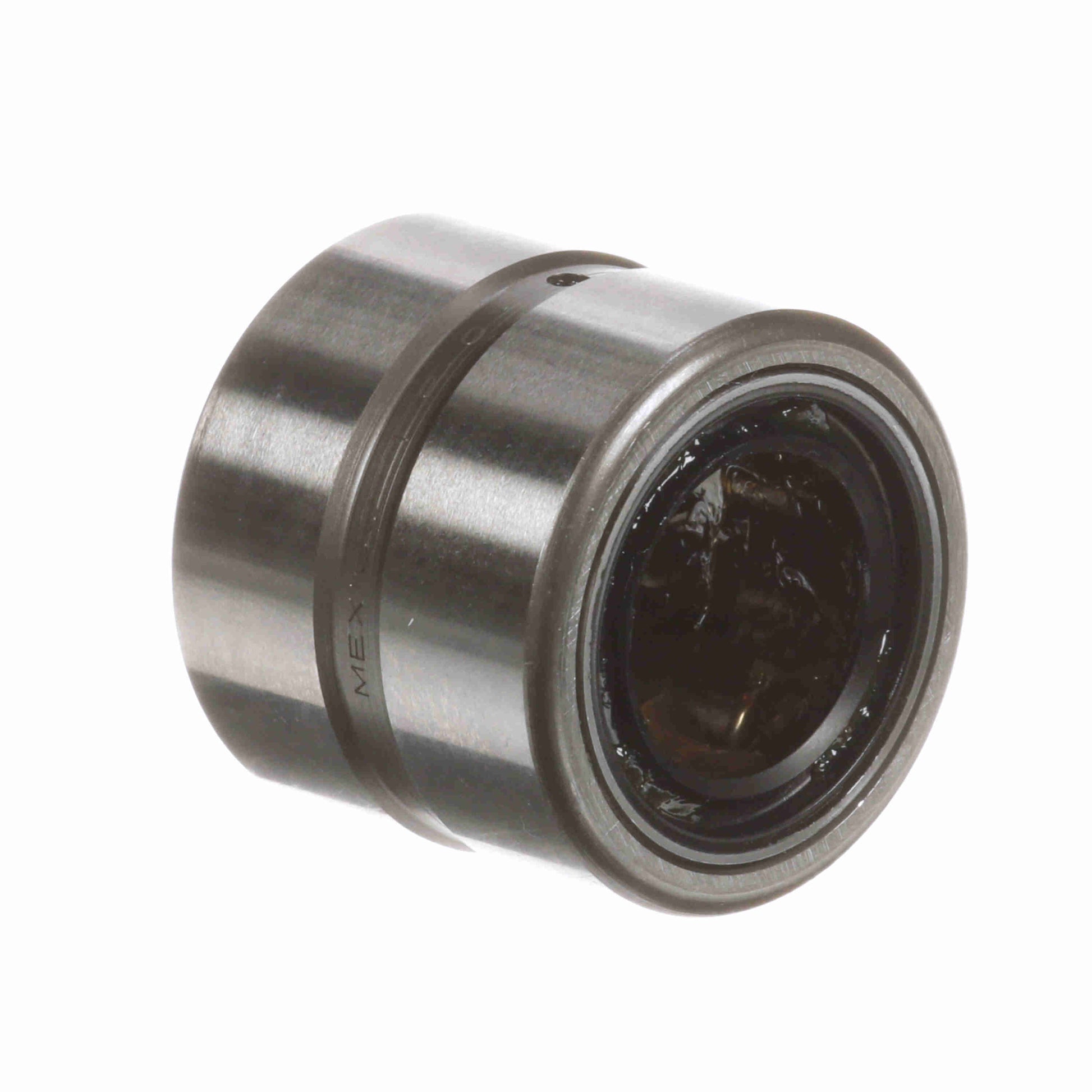

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 10 SRS
General Specifications
| UPC: | 726166064822 | Weight: | 0.14 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.025 in |
| Outside Diameter - Inch: | 1.125 in | Hole Diameter: | 0.079 |
| Bore Size - Inch: | 0.6250 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Duplexing: | No | Speed (Max) Grease: | 3,050 |
| Platform: | Cagerol Bearing | Dynamic Load Rating: | 4,320 |
| Speed (Max) Oil: | 6,100 | Sealed: | Sealed - Both Sides |
| Static Load Rating (lb): | 4,300 lb | Full Complement/Caged: | Caged |
| Related Inner Ring: | MI 6 | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
