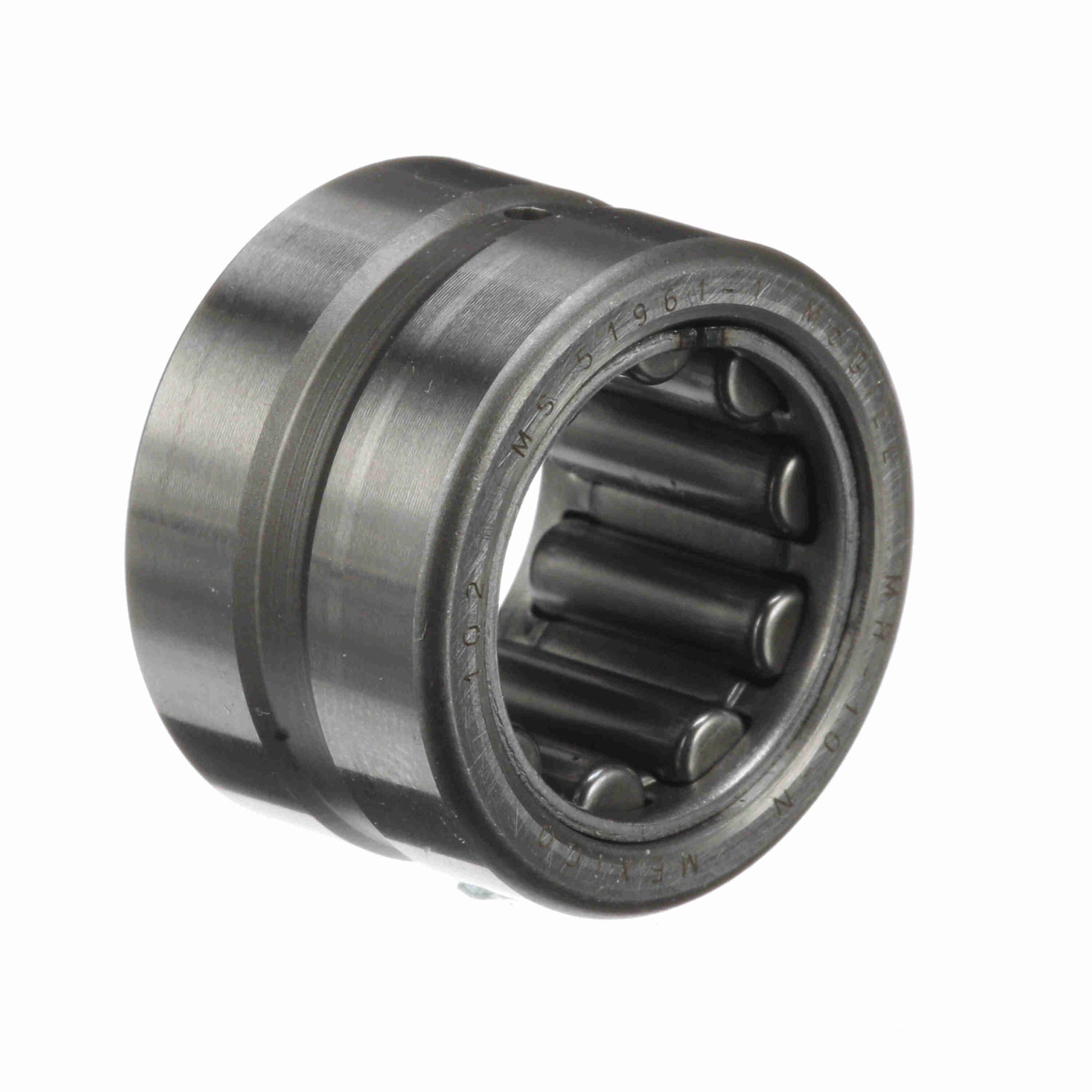

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 10 N
General Specifications
| UPC: | 726166064884 | Weight: | 0.12 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 0.75 | Bore Size - Inch: | 0.6250 in |
| Housing & Shaft Fillet (in): | 0.025 in | Outside Diameter - Inch: | 1.125 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Number of Rows: | 1 |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Speed (Max) Grease: | 9,600 | Static Load Rating (lb): | 4,300 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Speed (Max) Oil: | 19,250 | Sealed: | None |
| Dynamic Load Rating: | 4,320 | Duplexing: | No |
| Standard Met: | ABMA, ISO, MS 51961-1 | Related Inner Ring: | MI 6 N, MI 7 N |
| Flanges: | No flange | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
