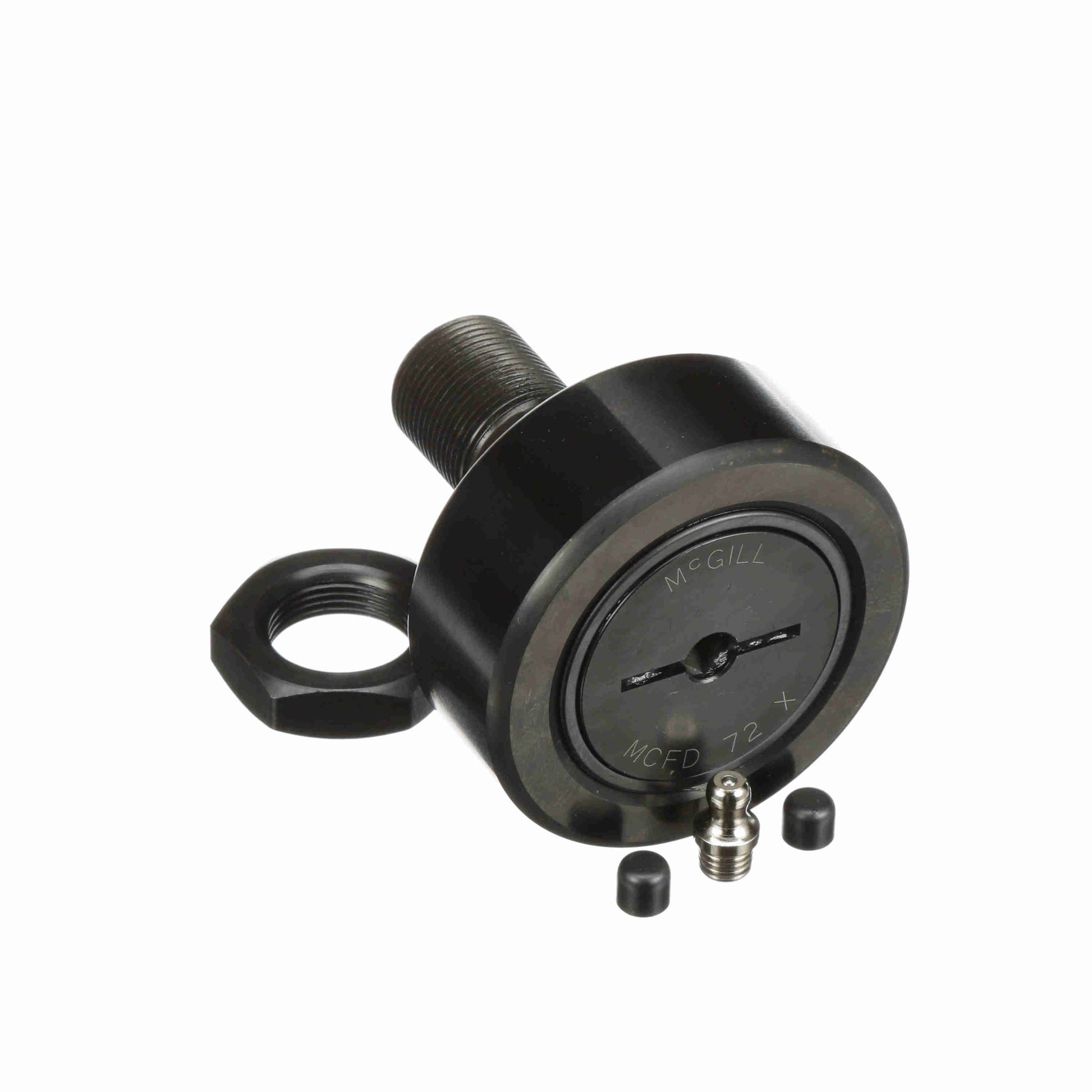

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Shielded - MCFD 72 X
General Specifications
| UPC: | 726166027148 | Weight: | 2.57 LB |
| Packaged Length: | 3.4 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 3.3 Inches | Country of Origin: | China |
Dimensions
| Threads: | M24x1.5 | Minimum Thread Length: | 25 |
| Stud Length - mm: | 49.5 mm | Roller Diameter - mm: | 72 mm |
| Oil Hole Center - mm: | 11 mm | Oil Hole Diameter - mm: | 4 mm |
| Reamed Hole - mm: | 8 mm | Endplate Outer Diameter: | 44 |
| Roller Width - mm: | 29 mm | Stud Diameter - mm: | 24 mm |
| Lubrication Fitting Size - Metric: | 8 | Overall Length - mm: | 80 mm |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 46,000 N |
| Adjustment: | None | O.D. Configuration: | Cylindrical |
| Dynamic Radial Rating: | 10,342 | Rolling Element: | Cylindrical Roller |
| Sealing: | Shielded | Limiting Speed: | 2,100 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Roller Shape: | Cylindrical |
| Dynamic Load Rating - N: | 64,000 | Static Load Rating: | 65,400 |
| Clamping Torque - Nm: | 216 | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 57,000 |
