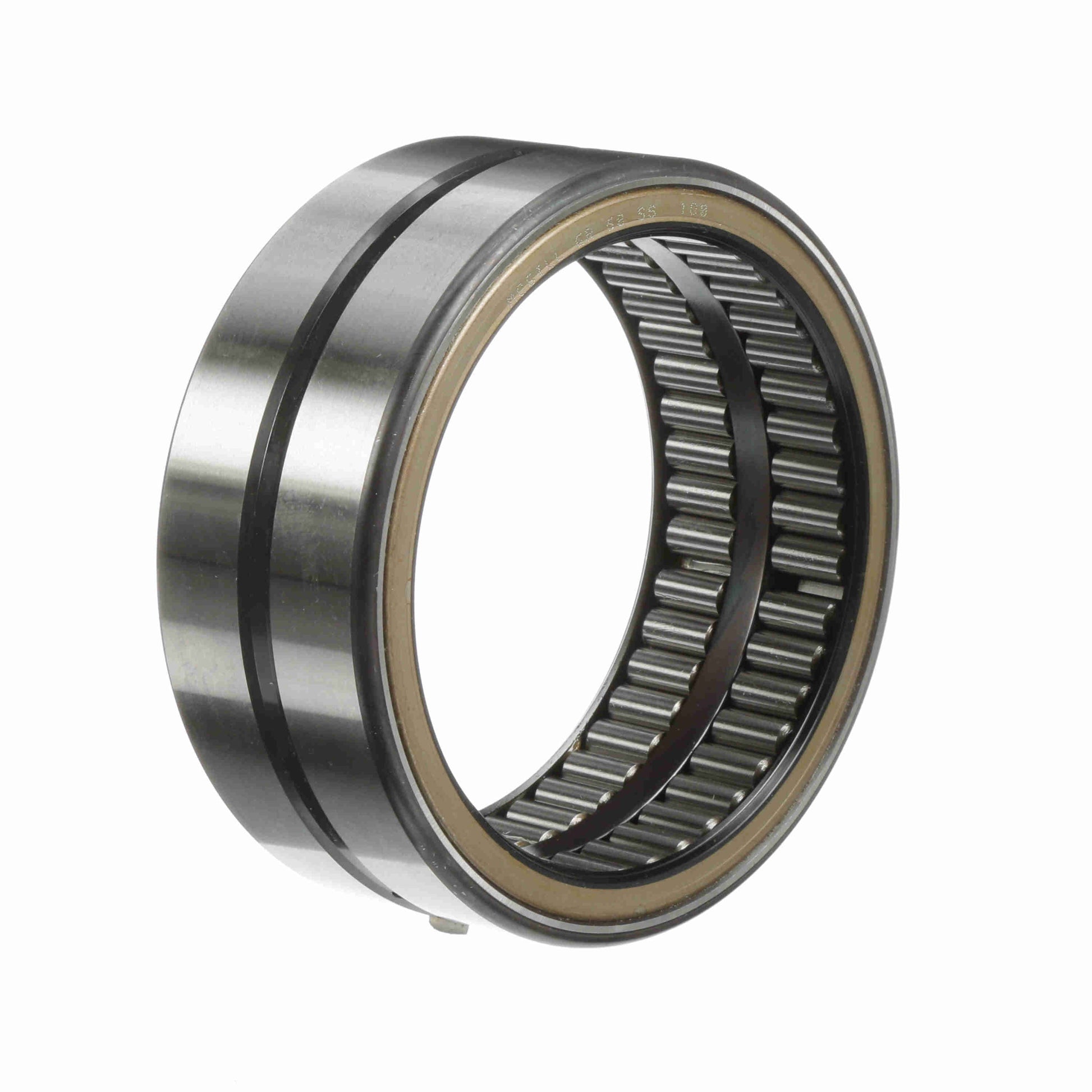

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 68 SS
General Specifications
| UPC: | 726166063450 | Weight: | 3.42 LB |
| Packaged Length: | 5.68 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Hole Diameter: | 0.188 |
| Housing & Shaft Fillet (in): | 0.1 in | Outside Diameter - Inch: | 5.25 in |
| Bore Size - Inch: | 4.2500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Static Load Rating (lb): | 104,000 lb | Dynamic Load Rating: | 27,400 |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Speed (Max) Oil: | 900 | Sealed: | Sealed - Both Sides |
| Speed (Max) Grease: | 450 | Full Complement/Caged: | Full Complement |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 58 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
