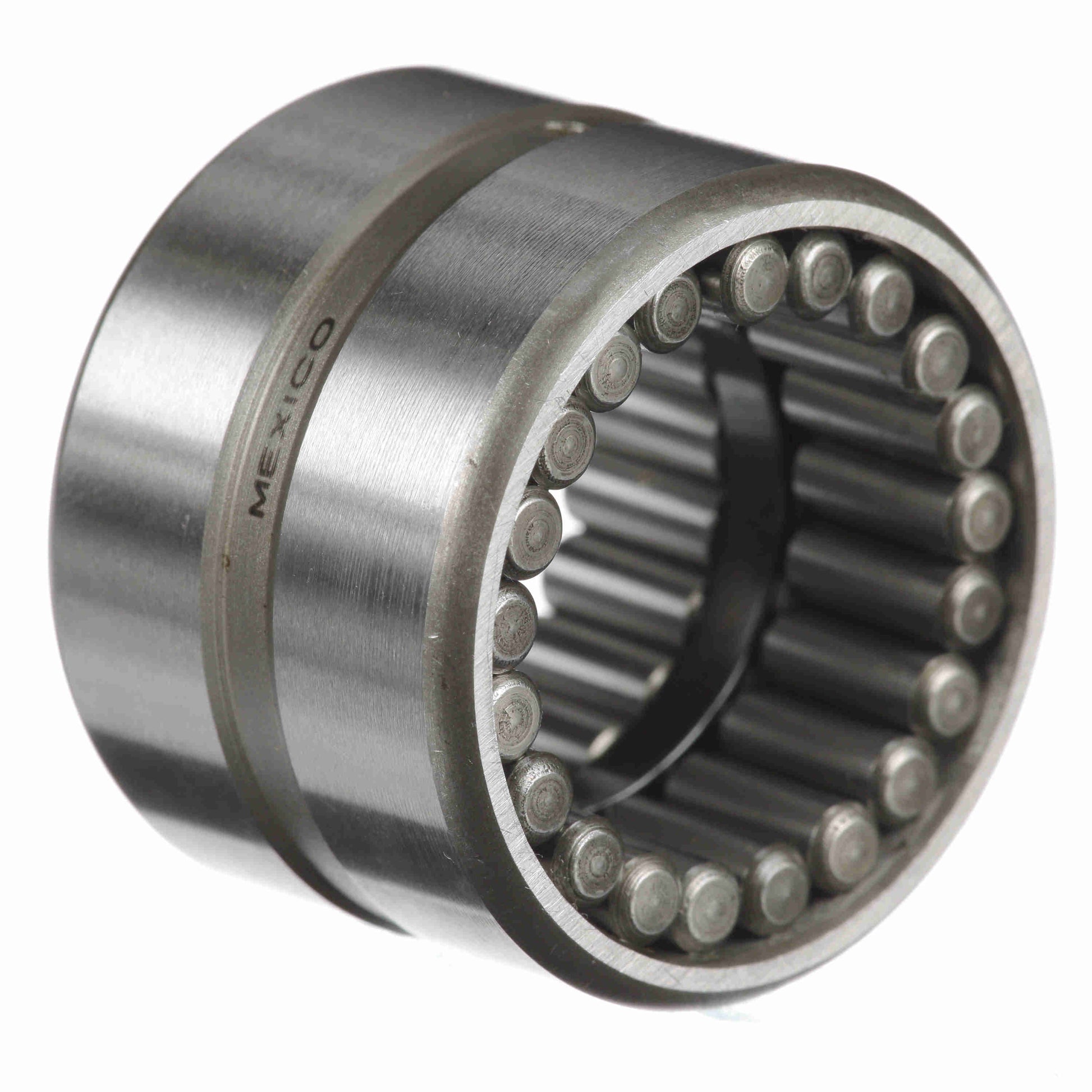

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 14
General Specifications
| UPC: | 726166061449 | Weight: | 0.19 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.375 in |
| Hole Diameter: | 0.079 | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 0.8750 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Misalignment: | No | Seal Type: | Unsealed |
| Sealed: | None | Speed (Max) Oil: | 6,800 |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 12,800 lb | Speed (Max) Grease: | 3,400 |
| Dynamic Load Rating: | 5,700 | Duplexing: | No |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 10 |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | No |
