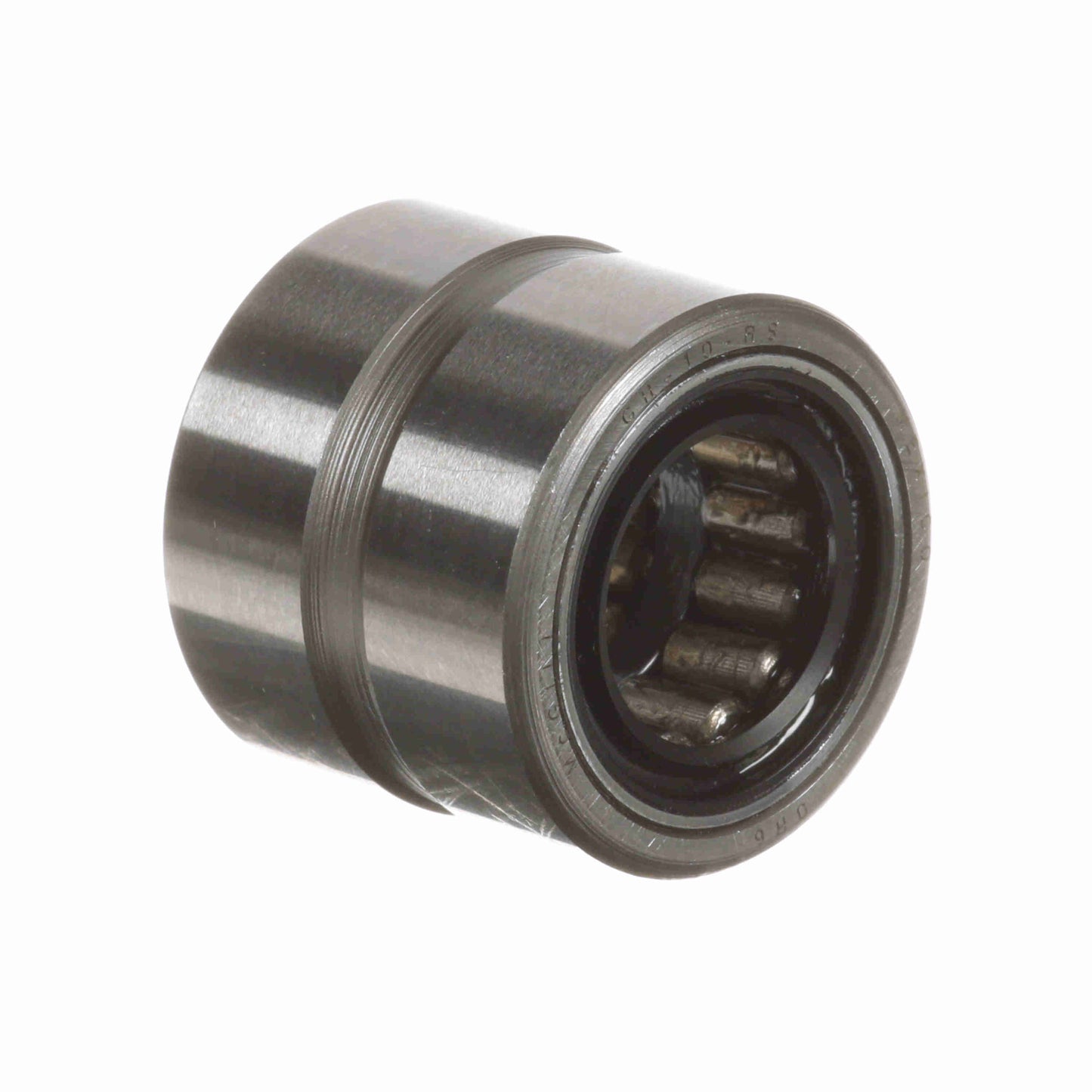

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 10 RS
General Specifications
| UPC: | 726166061258 | Weight: | 0.58 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.4 Inches |
| Packaged Height: | 2.2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.025 in |
| Outside Diameter - Inch: | 1.125 in | Hole Diameter: | 0.079 |
| Bore Size - Inch: | 0.6250 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Radial Clearance: | Normal | Misalignment: | No |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Static Load Rating (lb): | 6,400 lb | Speed (Max) Grease: | 3,050 |
| Full Complement/Caged: | Full Complement | Sealed: | Sealed - One Side |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Dynamic Load Rating: | 3,400 | Speed (Max) Oil: | 6,100 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 6 | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed One Side |
| Retainer: | No |
