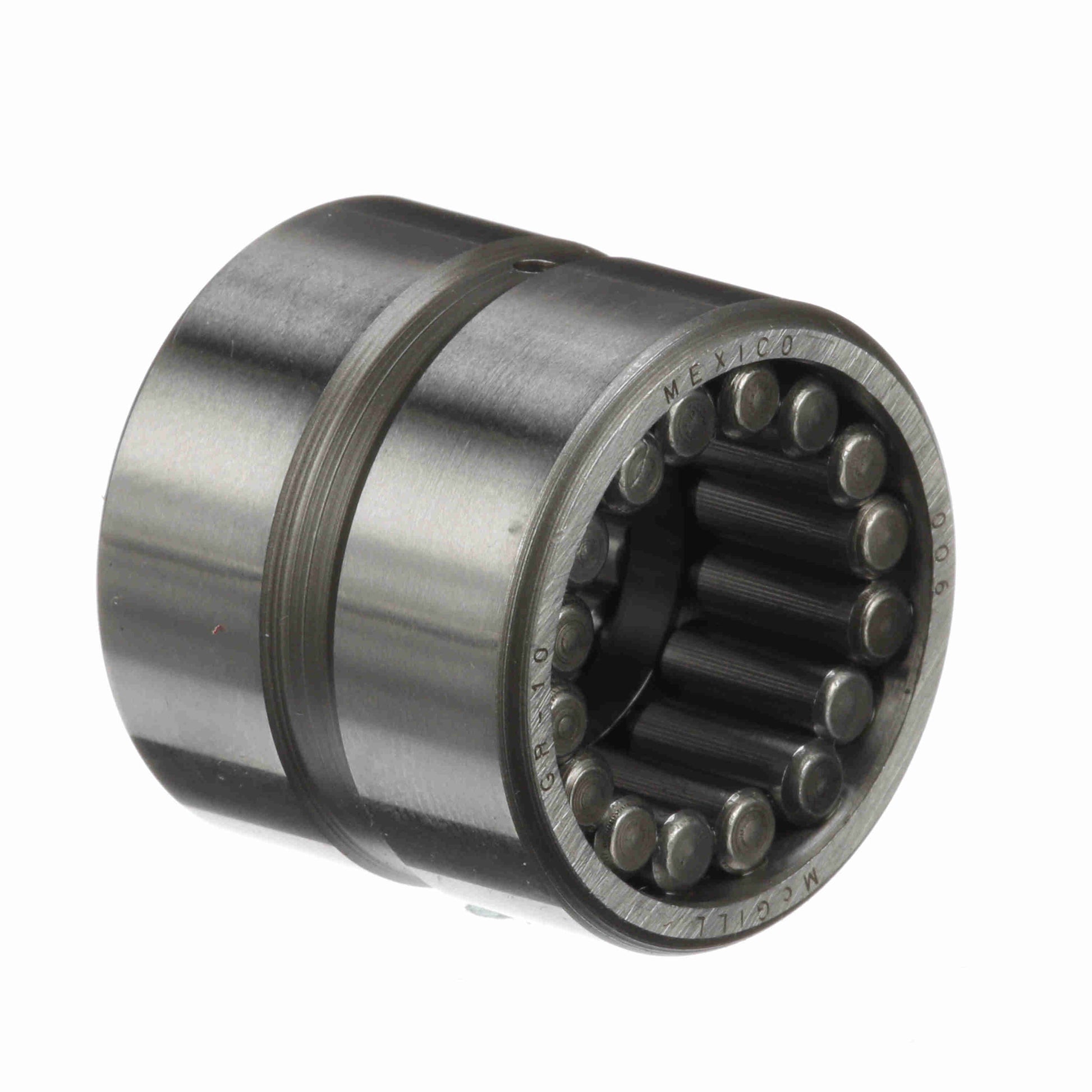

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 10
General Specifications
| UPC: | 726166061166 | Weight: | 0.58 LB |
| Packaged Length: | 2.4 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 0.6250 in |
| Housing & Shaft Fillet (in): | 0.025 in | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.125 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Speed (Max) Oil: | 9,600 | Dynamic Load Rating: | 4,700 |
| Sealed: | None | Static Load Rating (lb): | 9,100 lb |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 4,800 |
| Related Inner Ring: | MI 6 | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Enclosure: | Open | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | No |
