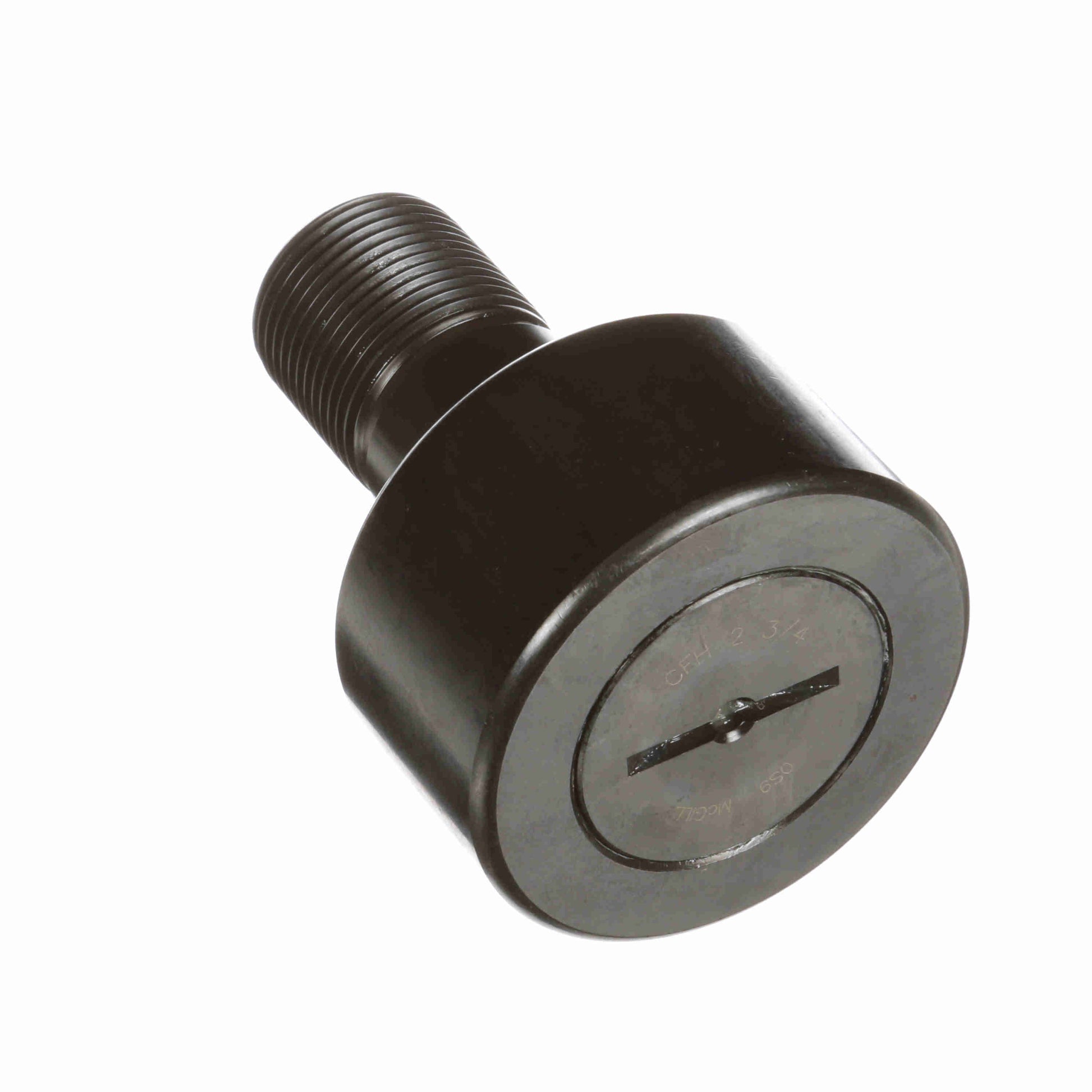

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - CFH 2 3/4
General Specifications
| UPC: | 726166038854 | Weight: | 3.17 LB |
| Packaged Length: | 2.81 Inches | Packaged Width: | 2.81 Inches |
| Packaged Height: | 3.93 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1 1/4-12 | Lubrication Fitting Size - Inch: | 3/16 |
| Roller Width - Inch: | 1.5 | Minimum Thread Length - Inch: | 1.125 |
| Oil Hole Center - Inch: | 0.563 | Oil Hole Diameter - Inch: | 0.125 |
| Stud Length - Inch: | 2.25 | Lubrication Fitting Size - Metric: | 3/16 |
| Roller Diameter - Inch: | 2.75 | Stud Diameter - Inch: | 1.25 |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | O.D. Configuration: | Cylindrical |
| Adjustment: | None | Sealing: | Unsealed |
| Limiting Speed: | 1,050 | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Roller Shape: | Cylindrical |
| Stud Type: | Heavy Stud | Static Load Rating: | 20,700 |
| Dynamic Load Rating - lb: | 11,720 | Clamping Torque - in-lbf: | 3,450 |
| Tolerance Class: | P0 Equivalent |
