• ตลับลูกปืน FAG 7205-B-TVP
1 1

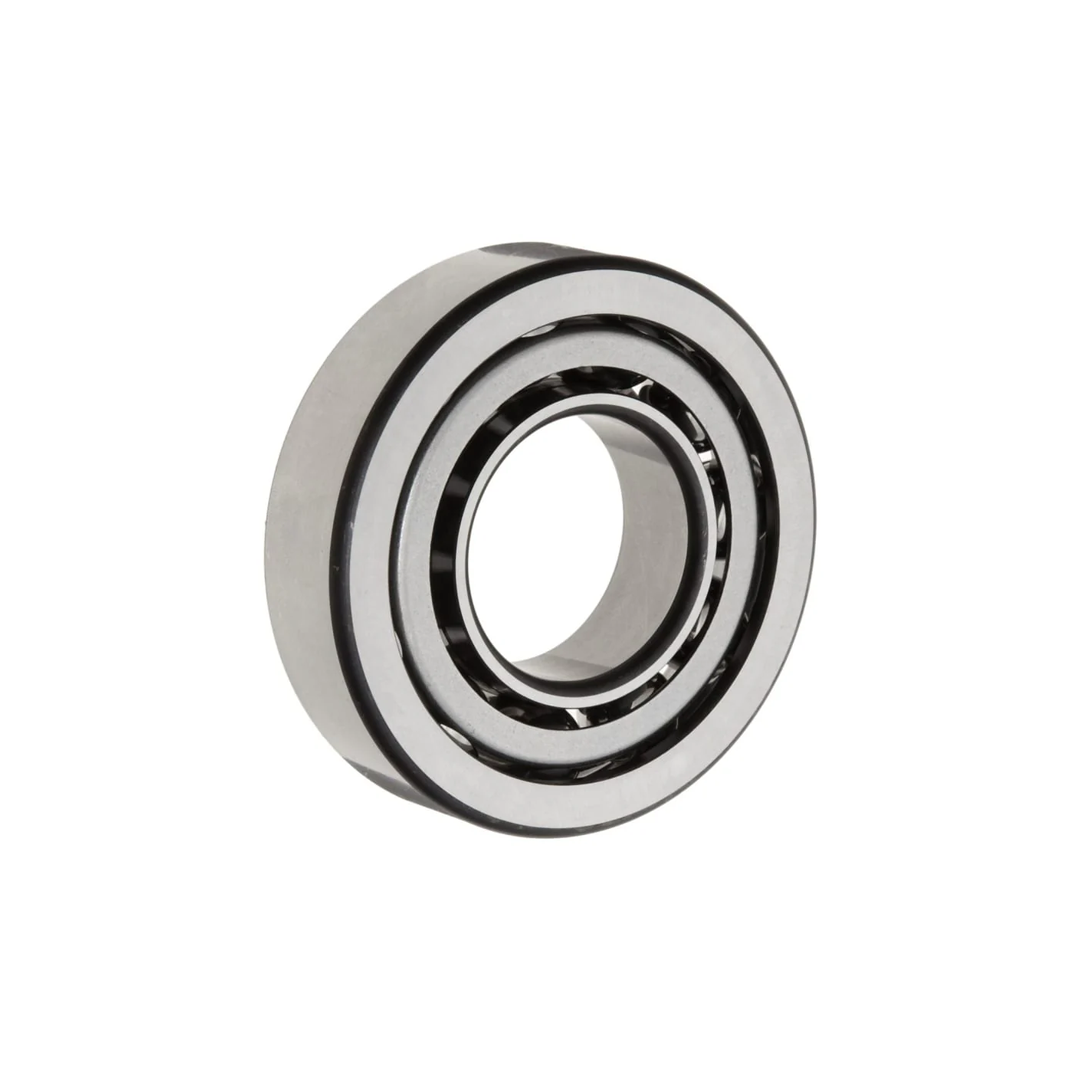

ตลับลูกปืน FAG 7205-B-TVP

ตลับลูกปืน FAG 7205-B-TVP

FAG

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,170.00 ฿
1,170.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด ตลับลูกปืน FAG 7205-B-TVP

Single Row Angular Contact Ball Bearings

FAG from Schaeffler single row angular contact ball bearings are self-retaining units. They have solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is limited.

คุณสมบัติ

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

Product Application Information

In certain applications, a smaller bearing arrangement can be designed.

Single row angular contact ball bearings can support axial forces in one direction and high radial forces. They must be axially adjusted against another bearing fitted in a mirror image arrangement

รหัสต่อท้าย

B - Modified internal construction

TVP - Solid cage made from glass fibre reinforced polyamide

Specifications

คุณสมบัติ Value
Inside Diameter 25mm
Outside Diameter 52mm
Ball Bearing Type Angular Contact
Race Width 15mm
End Type Open
Number of Rows 1
Static Load Rating 9000N
Material Steel
Race Type Plain
Dynamic Load Rating 15300N
Bore Type Parallel
ดูรายละเอียดทั้งหมด
