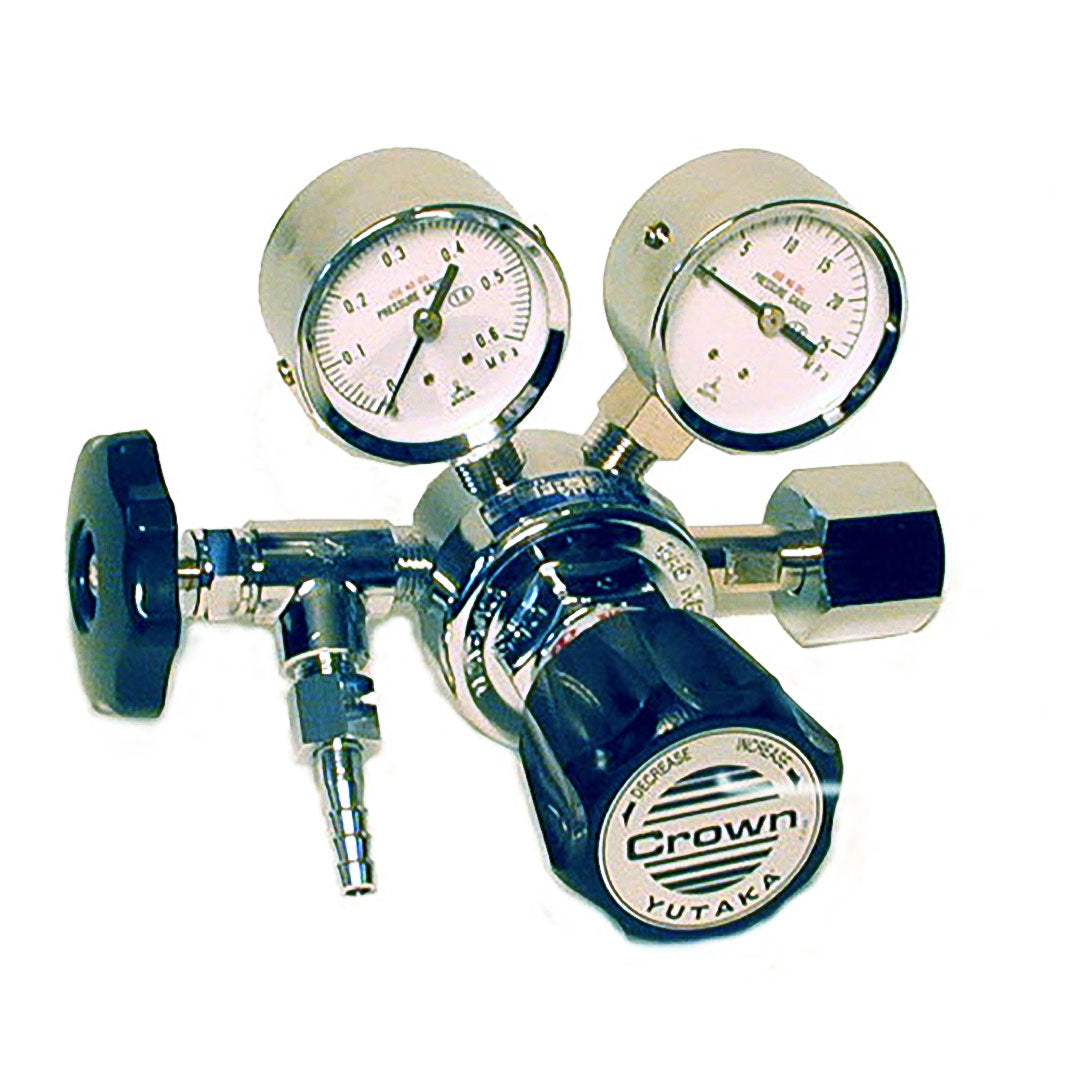

- Yutaka Crown Single Stage Pressure Regulator FR-1S-OP Series for Nitrogen Outlet Rc1/4 Product Code FR-1S-OP 0.6MPA N2 RC1/4
Yutaka Crown Single Stage Pressure Regulator FR-1S-OP Series for Nitrogen Outlet Rc1/4 Product Code FR-1S-OP 0.6MPA N2 RC1/4
Yutaka Crown Single Stage Pressure Regulator FR-1S-OP Series for Nitrogen Outlet Rc1/4 Product Code FR-1S-OP 0.6MPA N2 RC1/4
Regular price
8,994.00 ฿
Regular price
Sale price
8,994.00 ฿
Unit price
/
per
YUTAKA
รายละเอียด Yutaka Crown Single Stage Pressure Regulator FR-1S-OP Series for Nitrogen Outlet Rc1/4 Product Code FR-1S-OP 0.6MPA N2 RC1/4
feature
- This product is a single stage pressure regulator with an inlet pressure gauge. outlet pressure gauge and a stop valve that allows you to adjust the outlet pressure as needed.
- This device has a one-step structure. And fluctuations in the source pressure occur because of fluctuations in the supply pressure when the cylinder pressure decreases.
Product specifications
- Fluid: Nitrogen
- Main side working pressure (MPa): 14.8
- Secondary side operating pressure (MPa): 0.4 or less
- Inlet connection: W22-14 cap nut (right)
- Outlet connection: Rc1/4
- Standard flow rate (liters/minute): none
- High pressure side pressure gauge: 25MPa gauge
- Inlet pressure (MPa): 14.8 or less
- Low pressure side pressure gauge: 0.6MPa gauge
- Output pressure (MPa): 0.4 or less
- Mass/unit mass :1.5kg
