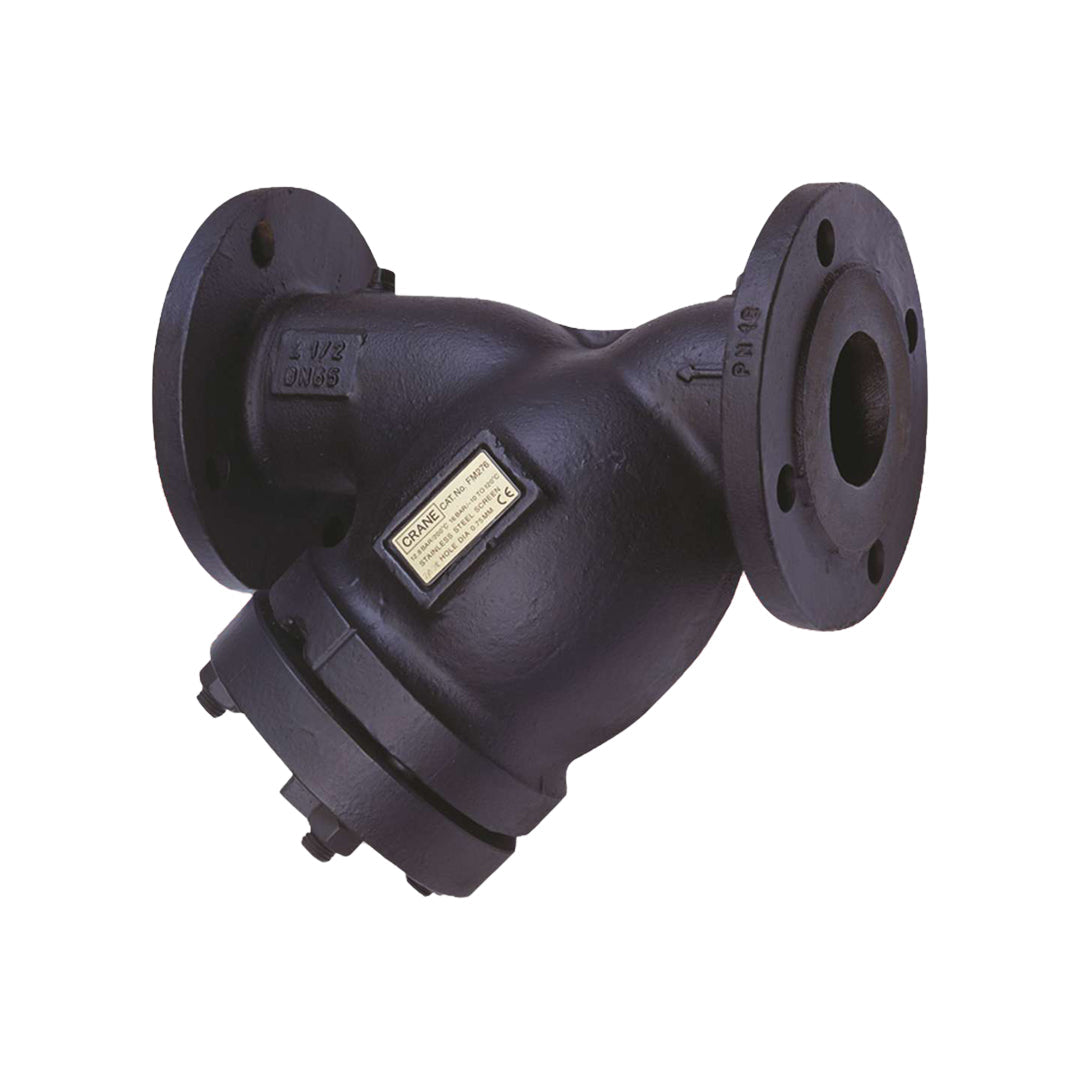

Y-Strainer Crane 2 1/2 in. Cast Iron, Y-Pattern, SS Screen, Model FM278 Class PN25 (362 Psi)

Y-Strainer Crane 2 1/2 in. Cast Iron, Y-Pattern, SS Screen, Model FM278 Class PN25 (362 Psi)

7,740.60 ฿
7,740.60 ฿
Sale Sold out

Crane

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

รายละเอียด Y-Strainer Crane 2 1/2 in. Cast Iron, Y-Pattern, SS Screen, Model FM278 Class PN25 (362 Psi)

  • Scale and dirt in piping systems cause endless problems and often cause serious damage to piping equipment.
  • Installing a Crane Strainer will eliminate problems caused by foreign matter in the piping system.
  • The FM278 offers the manufacturing integrity, quality and reliability that are hallmarks of crane products.
  • Screw cap and drain plug (drain valve sold separately)
View full details
Y-Strainer Crane 2 1/2 นิ้ว Cast Iron, Y-Pattern, SS Screen, Model FM278 Class PN25 (362 Psi)

Materials

No. Part Material
1 Body Ductile Iron - BS EN 1563 EN GJS 500/7
2 Cap Ductile Iron - BS EN 1563 EN GJS 500/7
3 Gasket Asbestos Free
4 Plug Ductile Iron - BS EN 1563 EN GJS 500/7
5 Screen 304 Stainless Steel

Dimensions & Weights

Size(inch) A(mm) B(mm) H(RC) Weight(Kg)
50 230 146 ½" 13
65 273 174 1" 18.3
80 295 198 1" 21.2
100 352 232 1" 25.9
125 416 285 1¼" 36
150 470 305 1½" 60
200 543 401 1½" 100
250 660 473 2" 170
300 770 554 2" 290
