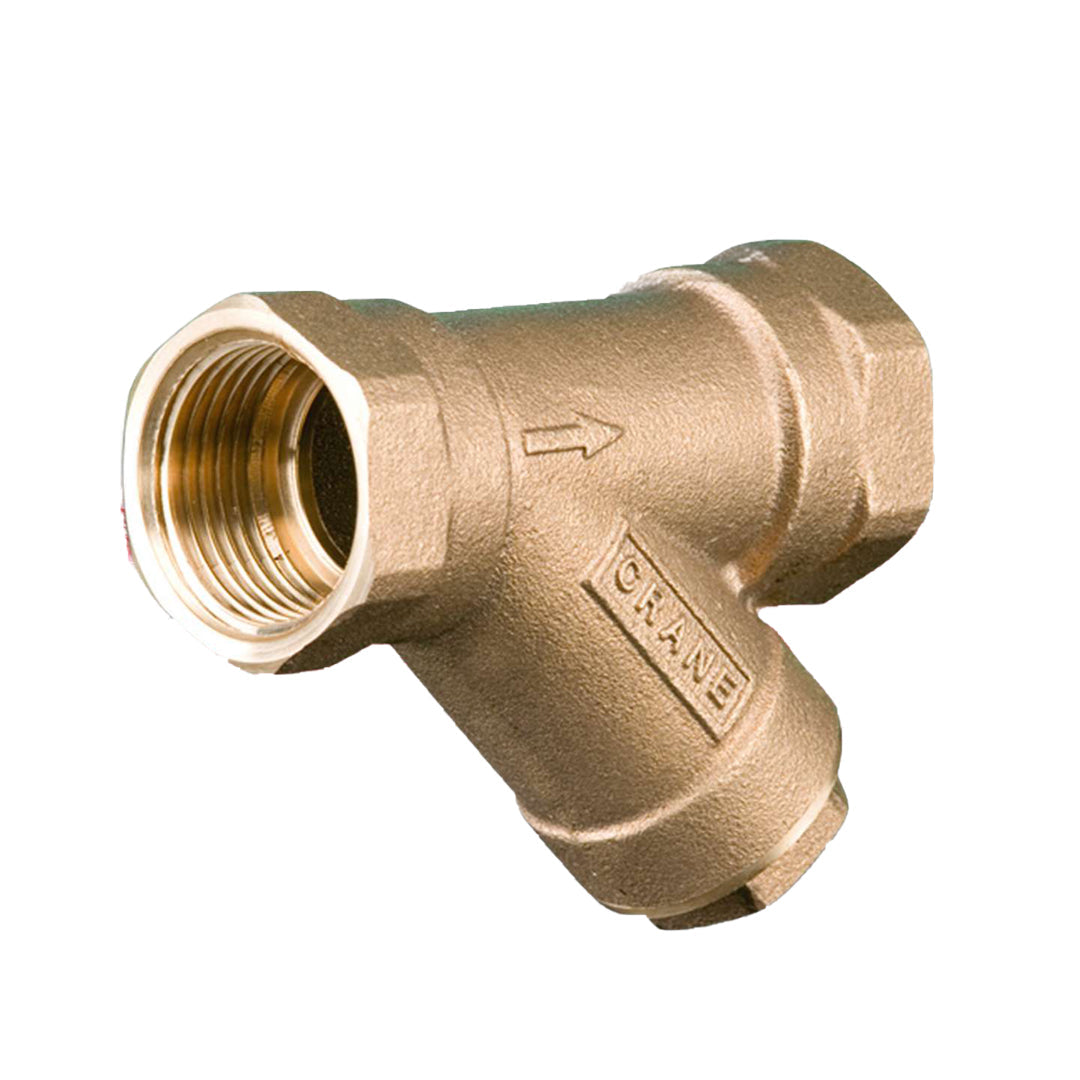

Y-Strainer Crane 2" Bronze S/S Model D298 Class PN16

Y-Strainer Crane 2" Bronze S/S Model D298 Class PN16

3,125.50 ฿
3,125.50 ฿
Sale Sold out

Crane

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

รายละเอียด Y-Strainer Crane 2" Bronze S/S Model D298 Class PN16

  • The use of a large volume of pipe strainers contributes significantly to the reliability of the piping system and to the performance of equipment - pumps, valves, flow meters, traps, etc.
  • Strainers are a low cost investment for any piping system. This results in reduced maintenance costs as well as reduced 'downtime' by protecting the circuitry from foreign matter damage.
View full details
Y-Strainer Crane 2 นิ้ว Bronze S/S Model D298 Class PN16

Materials

No. Part Material
1 Body Bronze to BS EN 1982 CC491K
2 Mesh Stainless Steel to A.I.S.I. Type 304
3 Cap Seal PTFE
4 Cap Bronze to BS EN 1982 CC491K
5 ID Plate Aluminium

Dimensions & Weights

DN MESH HOLE
Ø (mm) 		A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) Weight(Kg)
15 0.75 58 33 40 55 62 27 0.16
20 0.75 70 42 54 69 80 33 0.28
25 0.75 88 48 60 80 93 39 0.38
32 1.4 96 55 69 95 108 49 0.64
40 1.4 107 61 76 107 118 55 0.88
50 1.4 126 79 99 135 153 67 1.4
