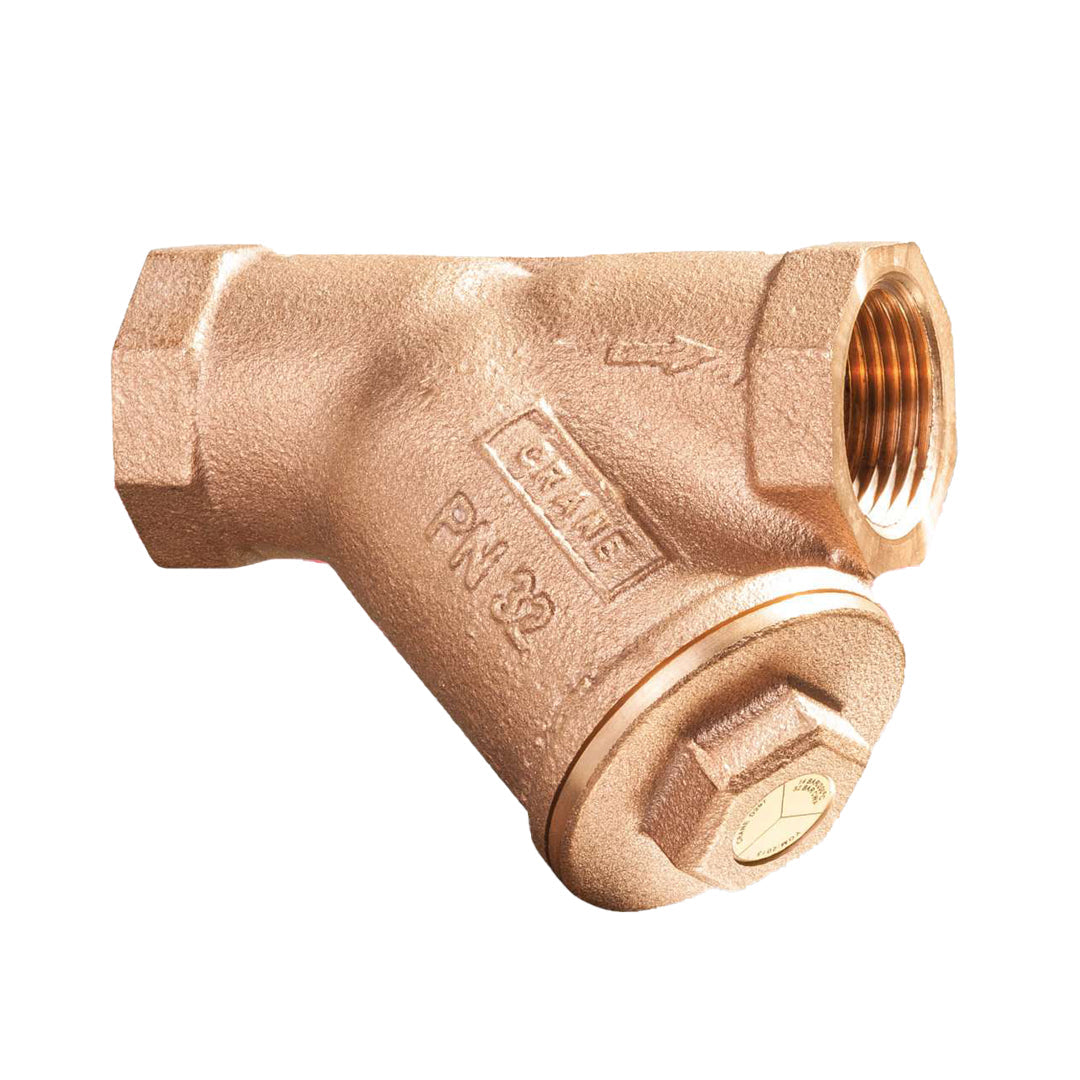

Y-Strainer Crane 1 1/2 in Bronze S/S Model D297 Class PN32

Y-Strainer Crane 1 1/2 in Bronze S/S Model D297 Class PN32

5,991.65 ฿
5,991.65 ฿
Sale Sold out

Crane

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

รายละเอียด Y-Strainer Crane 1 1/2 in Bronze S/S Model D297 Class PN32

  • Eliminate problems caused by foreign matter in the piping system.
  • Perforated stainless steel grille with robust design. low flow resistance and high quality materials
  • WRAS is approved for use in hot and cold water systems up to 85˚C.
  • Screen penetration 0.75mm
View full details
Y-Strainer Crane 1 1/2 นิ้ว Bronze S/S Model D297 Class PN32 Y-Strainer Crane 1 1/2 นิ้ว Bronze S/S Model D297 Class PN32

Materials

Part Material Sizes
Body Bronze BS EN 1982 CC491K
Cap Bronze BS EN 1982 CC491K
Strainer Mesh Stainless Steel Type 304
Gasket Klingersil C4430
ID Plate Anodised Aluminium

Dimensions & Weights

SIZE(mm) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(Rc) Kv Weight(Kg)
1/2 71 29 42 49 63 27 35 144 4.4 0.27
3/4 86 35 51 60 77 33 44 176 9.5 0.44
1 101 45 55 67 90 42 54 202 16.5 0.78
1 1/4 134 54 80 93 120 50 63 294 24.5 1.3
1 1/2 148 63 87 103 134 58 73 322 30.8 1.81
2 176 77 98 119 157 71 93 367 55.6 3.1
