• Tsubaki Torque Limiter Code TL10-24-B15.5
1 1

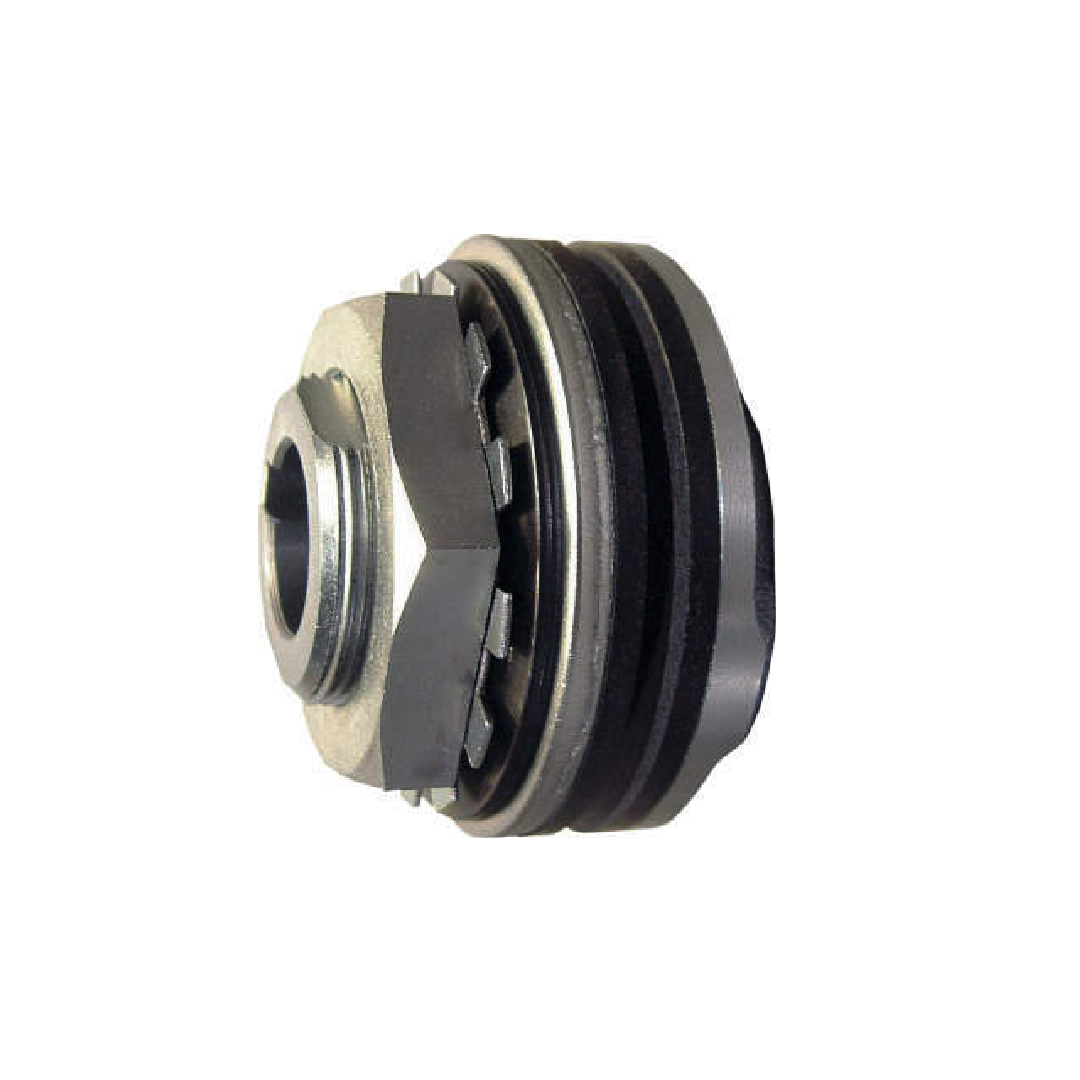

Tsubaki Torque Limiter Code TL10-24-B15.5

Tsubaki Torque Limiter Code TL10-24-B15.5

37,938.24 ฿
37,938.24 ฿
Sale Sold out

TSUBAKI

รายละเอียด Tsubaki Torque Limiter Code TL10-24-B15.5

Tsubaki Torque Limiter Code TL10-24-B15.5

Transmission Capacity

Setting torque range N･m Maximum rotation speed r/min Pilot hole diameter Minimum shaft hole diamete Maximum shaft hole diameter bush length Bush outer diameter Center member hole diameter
588～1860 1000 30 32 72 15.5 135 - 0.085
135 - 0.125 		135 + 0.07
0

Dimension

D D H L ℓ T1 t S Max. C Adjustment nut diameter x pitch Set screw diameter Mass kg
254 100 115 23 8.5 4.0 24 19 63 M18×1.5 21
