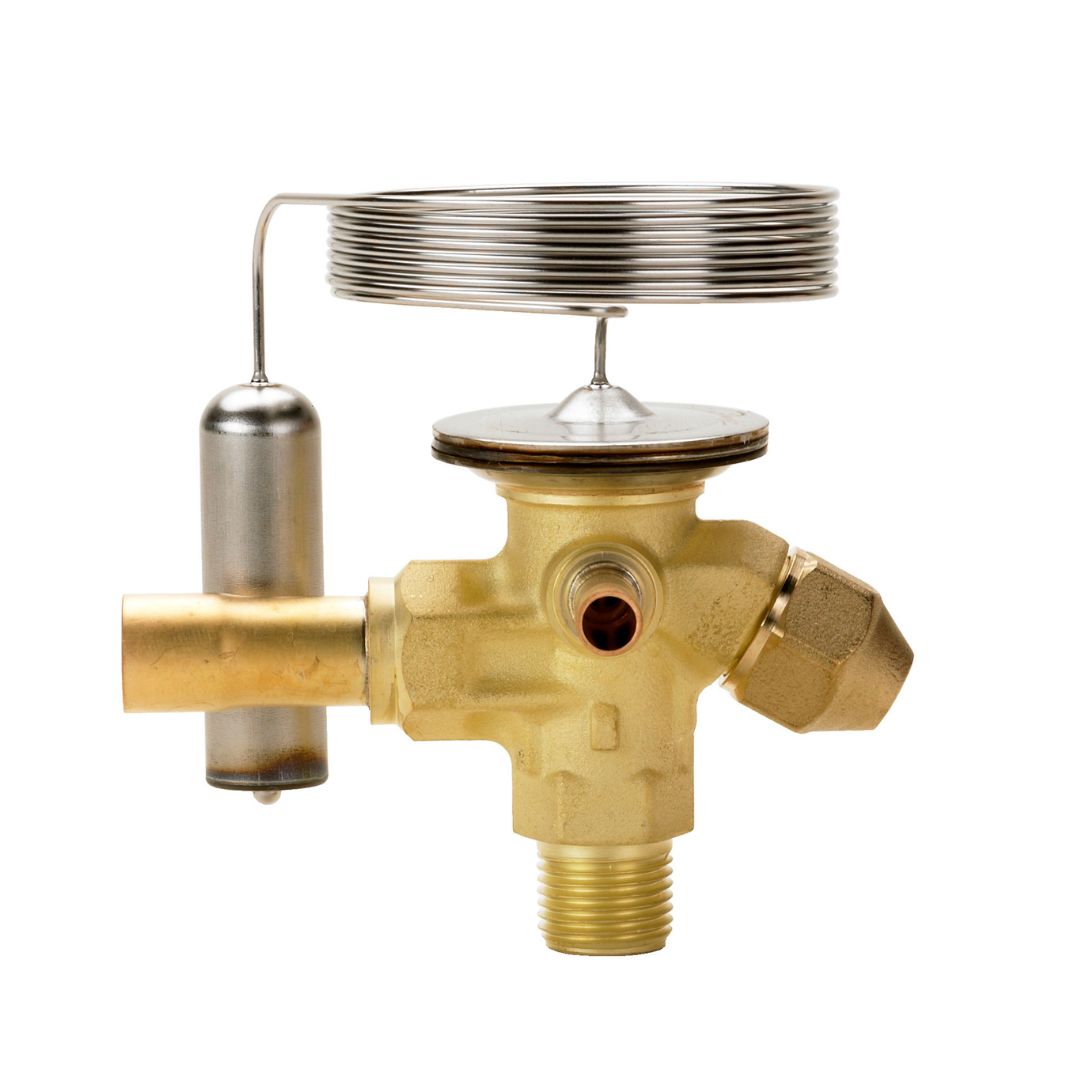

• Thermostatic Expansion Valve Danfoss, T 2, R404A/R507A Connection 3/8 x 1/2 Inch Code 068Z3410
1 1

Thermostatic Expansion Valve Danfoss, T 2, R404A/R507A Connection 3/8 x 1/2 Inch Code 068Z3410

Thermostatic Expansion Valve Danfoss, T 2, R404A/R507A Connection 3/8 x 1/2 Inch Code 068Z3410

3,704.48 ฿
3,704.48 ฿
Sale Sold out

DANFOSS

รายละเอียด Thermostatic Expansion Valve Danfoss, T 2, R404A/R507A Connection 3/8 x 1/2 Inch Code 068Z3410

Datasheets :

Product details

Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 59 in
Capillary tube length [mm] 1500 mm
Connection material Brass
Direction Angleway
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 2
Inlet connection type Flare
Inlet size [in] 3/8 inch
Max. Working Pressure [bar] 34 bars
Max. Working Pressure [psig] 500 psig
MOP Point [psig] MOP 30
MOP Point [°C] -20 °C
MOP Point [°F] -5 °F
Outlet connection type Flare
Outlet size [in] 1/2 inch
Packing format Multi pack
Parts included Bulb strap
Parts Program name T2/TE2
PED category Art. 4, par. 3
Pressure equalization Internally equalized
Product accessories TXV accessories
Product group Expansion valves
Product Name Description Thermostatic expansion valve
Quantity per packing format 20pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R404A/R507A
SCIP dossier no. 6450ee16-252d-49df-8f77-4136a47bb857
SCIP dossier product name T2/TE2
Serviceable TXV spare parts
Static Superheat (SS) [°C] 4 °C
Static Superheat (SS) [°F] 7.2 °F
Superheat setting Adjustable
Temperature range [°C] [max] -25 °C
Temperature range [°C] [min] -60 °C
Temperature range [°F] [max] -15 °F
Temperature range [°F] [min] -75 °F
Type T 2
