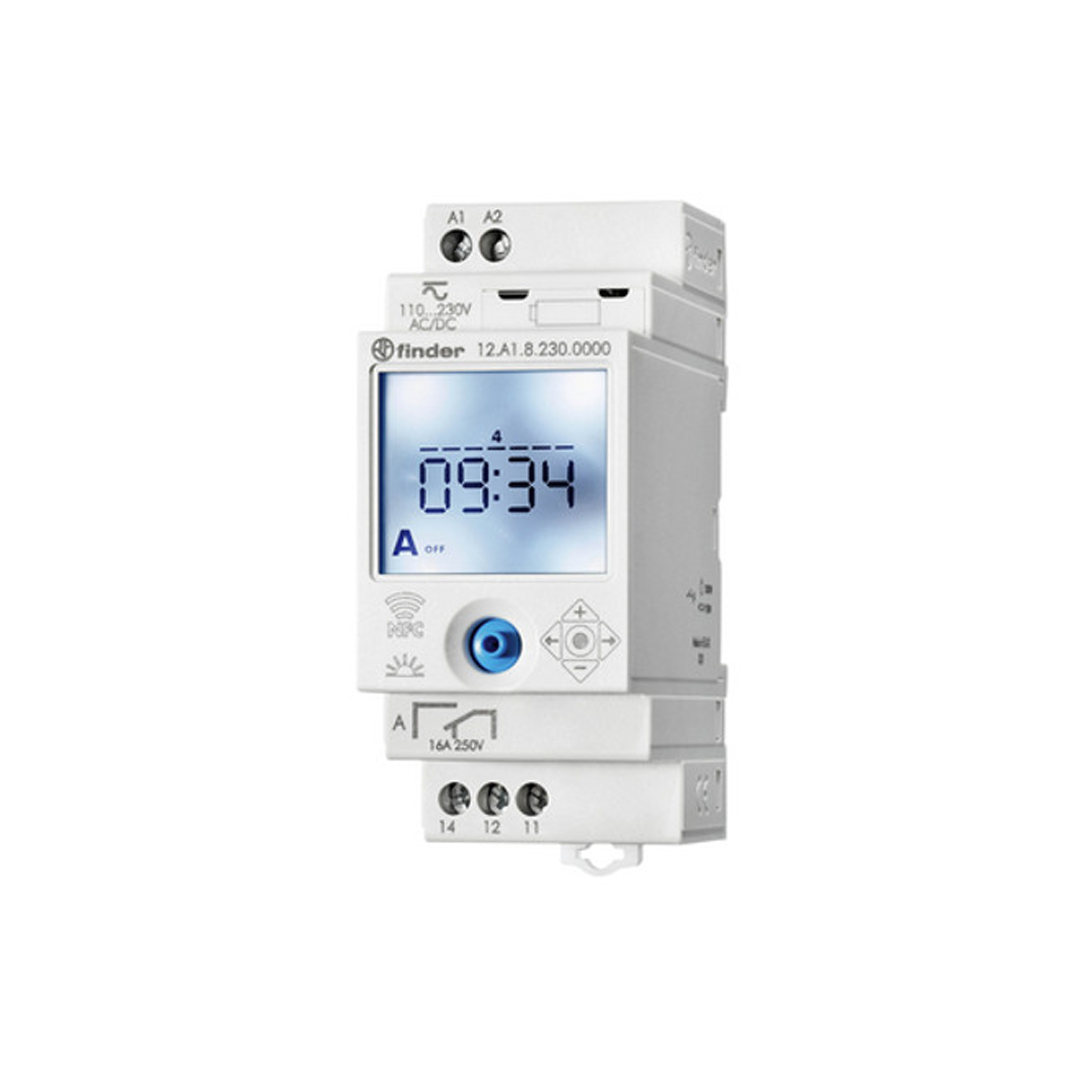

Staircase timer, Electronic 16a Code. 148182300000

Product details / Product Details

Single function stair light timer (Stair light can be set to turn off + stair cleaning mode) 4-point connector on one side. Supports time settings from 30 seconds to 20 minutes. "Zero crossing" power cut-off system (cuts at the intersection of the waves). Compatible with electromagnetic switches and old-style illuminated pushbuttons (dimmed lights). Compatible with traditional lighting systems. 3 or 4 wires, set up via "push button"

Technical features:

• Contact configuration: 1 NO
• Size: 17.5x84x56.5 mm.
• Finder set: Electronic staircase timer 16 A
• Rated current: 16 A
• Rated voltage: 230 V AC
• Power supply model: AC power supply model
• Technical description: Electronic stair stopwatch, 35 mm rail (EN 60715) mounted, single function, all terminals on the same side, 1 terminal, 16 A, AC power supply model, rated voltage 230 V. , operating from 184 to 253 V, rated power 3 VA, ambient temperature from -10 to +60 °C.
• Type: 35 mm rail (EN 60715) mounted, single function, all terminals on the same side.
