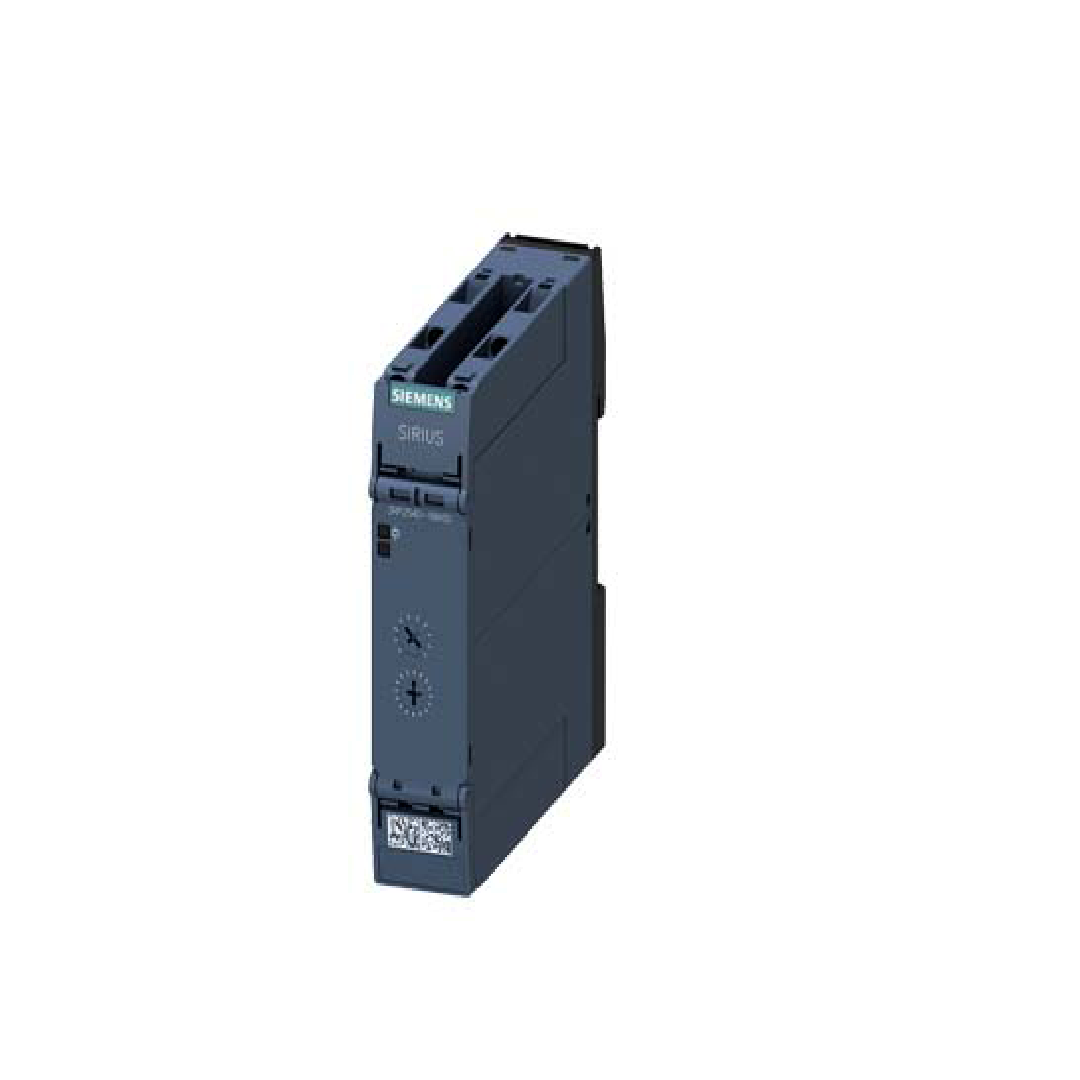

SIEMENS Timer Relay 3RP2005-1BW30

SIEMENS Timer Relay 3RP2005-1BW30

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

SIEMENS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
11,000.00 ฿
11,000.00 ฿
Sale Sold out

รายละเอียด SIEMENS Timer Relay 3RP2005-1BW30

Multifunction Time Relays - 3RP20 Range<ฝh3>
Series 3RP20 multifunction timing relays

Rotary switches for function and time-range
Setting tolerance is typical 5%
Rereat accuracy is <1%
45mm width

Standards

IEC60947-5-1, IEC 61812-1, IEC 60721-3-3

Approvals

UL listed / UL listed for Canada


Siemens Sirius Range Contactor & Control Relays
คุณสมบัติ Value
Supply Voltage 24 → 240V
Mounting Type DIN Rail
Number of Contacts 2
Time Range 0.05 s → 100h
Mode of Operation Additive ON Delay with Control Signal, OFF Delay with Control Signal, OFF Delay/Instantaneous with Control Signal, ON Delay, ON Delay/Instantaneous Contact, ON Delay/OFF Delay/Instantaneous with Control Signal, Passing Break Contact with Control Signal, Passing Break Contact/Instantaneous with Control Signal, Passing Make Contact, Passing Make Contact/Instantaneous Contact, Pulse-Shaping /Instantaneous with Control Signal
Number of Timer Functions Multi Function
Contact Configuration DPDT
Time Increment Hours, Minutes, Seconds
Maximum Current 1A
Power Supply External
Terminal Type Screw
Width 57mm
Maximum Operating Temperature +60°C
Depth 73mm
Length 45mm
Minimum Operating Temperature -25°C
