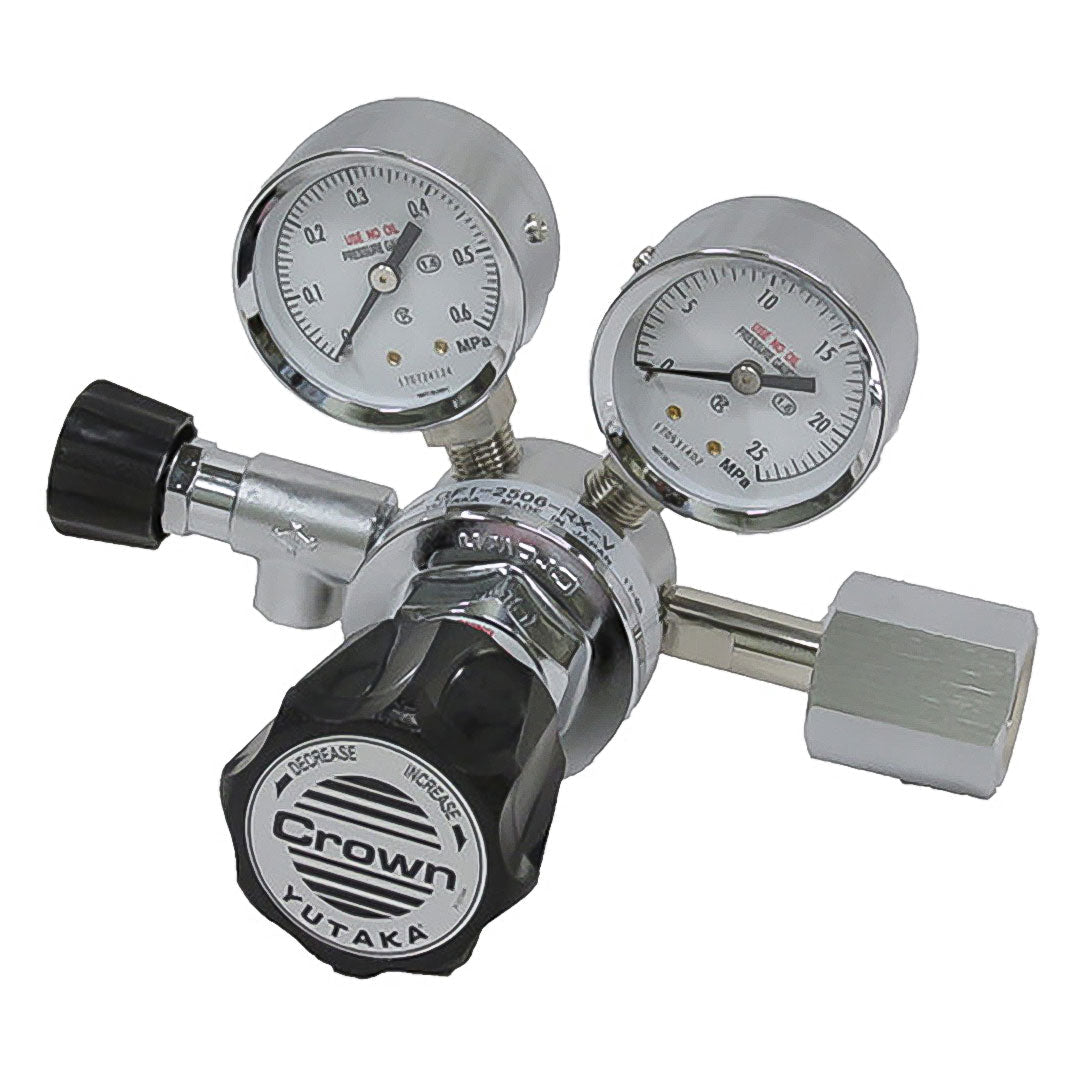

- Pressure Regulator Yutaka Crown One-Stage Precision Pressure Regulator with Brass Valve for Argon Product Code GF1-2516-RX-V AR
Pressure Regulator Yutaka Crown One-Stage Precision Pressure Regulator with Brass Valve for Argon Product Code GF1-2516-RX-V AR
Pressure Regulator Yutaka Crown One-Stage Precision Pressure Regulator with Brass Valve for Argon Product Code GF1-2516-RX-V AR
Regular price
7,962.00 ฿
Regular price
Sale price
7,962.00 ฿
Unit price
/
per
YUTAKA
รายละเอียด Pressure Regulator Yutaka Crown One-Stage Precision Pressure Regulator with Brass Valve for Argon Product Code GF1-2516-RX-V AR
feature
- The GF1 series is a single-stage brass pressure regulator designed for the physical and chemical markets.
- This device has high inlet pressure specifications and is a single-step structure product with high cost performance.
- We also have an optional product that includes a valve that blows out the mixed air when replacing the cylinder.
Product specifications
- Fluid: Argon
- Main side working pressure (MPa): 14.8
- Secondary side working pressure (MPa): 0.99
- Inlet connection: W22-14 cap nut (right)
- Outlet connection: Rc1/4
- Standard flow rate (liters/minute): none
- High pressure side pressure gauge: 25MPa gauge
- Inlet pressure (MPa): 14.8 or less
- Low pressure side pressure gauge: 1.6MPa gauge
- Output pressure (MPa): 0.99 or less
- Mass/unit mass: 1.1kg
