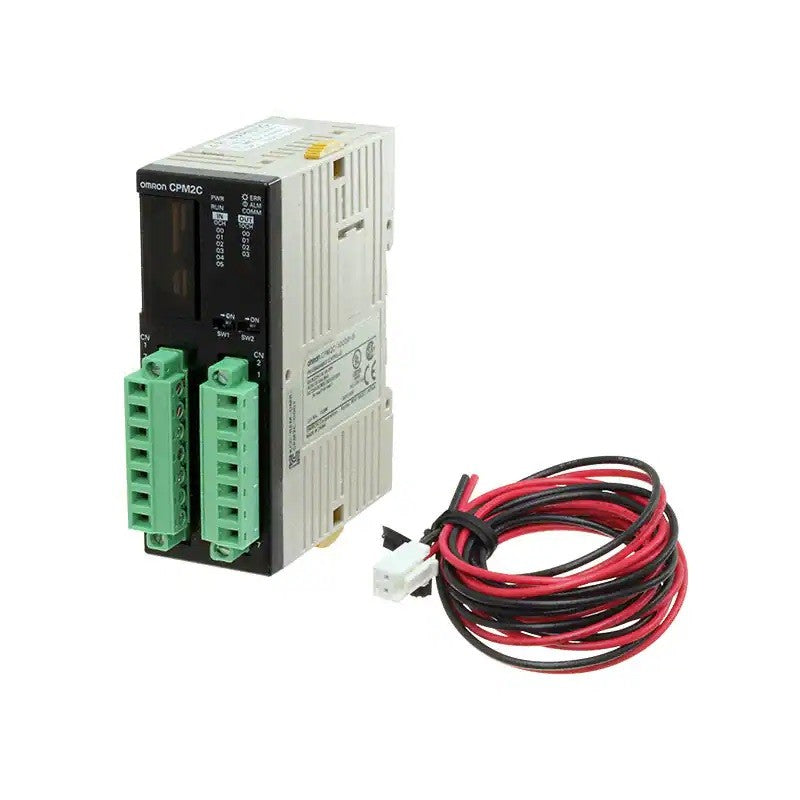

PLC OMRON CPM2C10CDRD

A micro sized, fast processing, flexible PLC ideally suited to machine control applications.

Built in real time clock with calendar option
4096 Word Capacity
140 I/O max
Up to 5 expansion units can be fitted
Uses the same software as the CPM1/CPM1A/CPM2A/SRM1
Ultra slim (33mm wide)
Removable terminal strips
Battery backed RAM
2 x 10kHz pulse output
Output Rating/Point: 2A @ 250Vac/24Vdc (except stock nos. 365-2143 and 365-2165 which are 0.3A @ 30Vdc)

Programmed using either:

Hand held console CQM1-PR001 (stock no. 216-4645) and programming cable CPM2C-CN111 (stock no. 365-2222)
PC based software with cable CQM1-CIF02 (stock no. 216-4651) and cable CPM2C-CN111 (stock no. 365-2222) or cable CS1W-CN226

All relay type units come complete with I/O terminals. For the transistor units please use 2 x XW2B-20G4 (stock no. 365-2200), terminal block and 2 x XW2Z-200A (stock no. 365-2216) I/O connection cable.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Omron CPM1A / 2A / 2C Base Units

The micro sized CPM1A, 2A and 2C PLC family for all types of machine control where space is at a premium. Programmed using the CX-Programmer, CX-Programmer Junior software, Syswin Software or a handheld programming console.

Programming port and optoisolated inputs
Interrupt processing, encoder connection and high speed counters

Pulse I/O, digital and analogue expansion
Password protection
