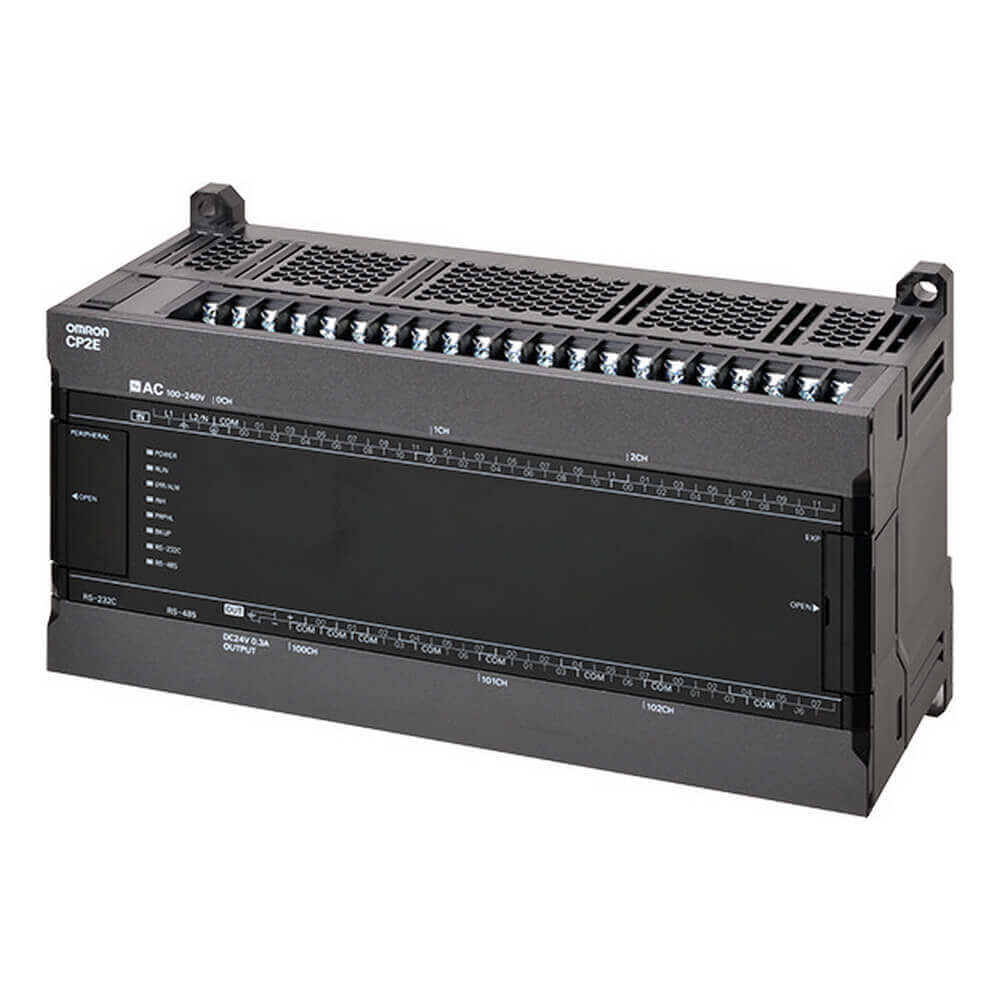

PLC OMRON CP2E-N20DT-D

PLC OMRON CP2E-N20DT-D

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
17,784.00 ฿
17,784.00 ฿
Sale Sold out

รายละเอียด PLC OMRON CP2E-N20DT-D

CP2E series compact PLC - Network type,12 DI, 8DO,NPN output,Power supply 24 VDC,10 kStep Program memory
Two built-in Ethernet ports with Ethernet switching function:
Ready for Machine to Machine communication (CP2E-N type)
Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
Four-axis positioning function with linear interpolation (CP2E-N type)
Battery-free operation and backup reduce maintenance
Function blocks and structured text improve programming efficiency
Operating temperature range from -20 to 60 °C for reliable use in special applications
Input/output terminal LED indicators for quick troubleshooting

Specifications

คุณสมบัติ Value
Manufacturer Series CP2E
Number of Inputs 12
Output Type Transistor
For Use With CP2E Series
Input Type Digital
Number of Digital Inputs 12
Number of Outputs 8
Voltage Category 24 V dc
Network Type Ethernet
Number of Digital Outputs 8
Interface RS-485
Width 80mm
Length 86mm
Battery Backup Yes
Programming Language Used Ladder Diagram
Mounting Type Panel Mount
Maximum Operating Temperature +60°C
Dimensions 86 x 80 x 110 mm
Depth 110mm
Minimum Operating Temperature -20°C
Display Included Yes
Program Capacity 8 kB
