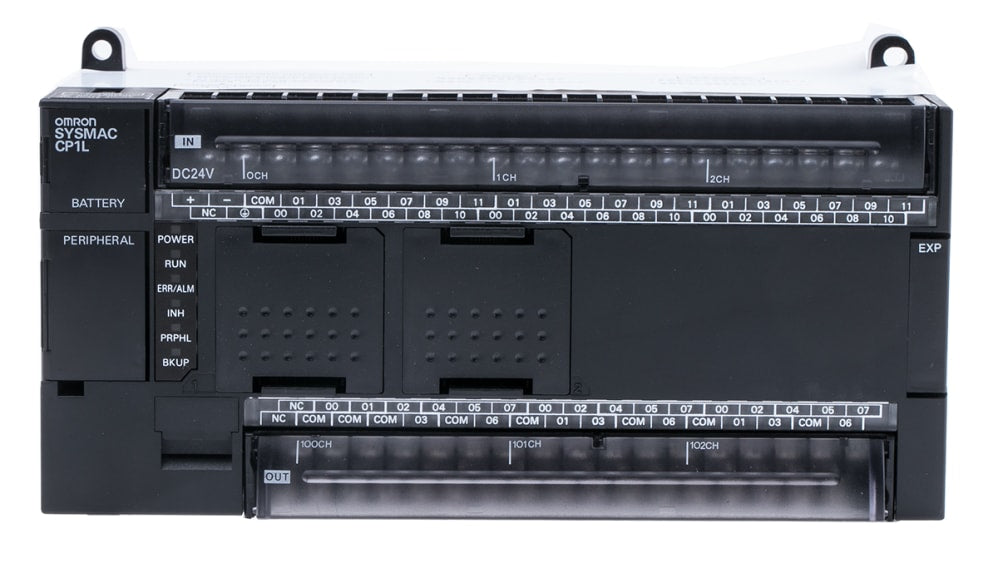

PLC OMRON CP1L-M30DT1-D

PLC OMRON CP1L-M30DT1-D

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
27,642.00 ฿
27,642.00 ฿
Sale Sold out

รายละเอียด PLC OMRON CP1L-M30DT1-D

CP1L CPU

Compatible with all other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
4 high-speed encoder inputs and 2 high-speed pulse outputs
AC or DC supply
Instruction set compatible with CP1H-, CJ1- and CS1 series PLC's
CP1L-EM / CP1L-EL has a standard-feature Ethernet port
CP1L-M / CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Scaleable with a wide range of I/O units (maximum up to 160 I/O points)
Motion functionality

Note

Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

Standards

UC1, N, L, CE


Omron CP1L CPU's, Expansion Modules and Accessories


Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Specifications

คุณสมบัติ Value
Manufacturer Series CP1L
Number of Inputs 18 (DC)
Output Type Transistor
For Use With SYSMAC CP1L Series
Input Type DC
Number of Outputs 12 (Transistor)
Voltage Category 20.4 → 26.4 V dc
Network Type USB
Battery Backup Yes
Minimum Operating Temperature 0°C
Memory 10000 (Program Memory) Steps, 32000 (Data Memory) Words
Programming Interface Computer
Dimensions 130 x 110 x 85 mm
Communication Port Type USB 1.1
Program Capacity 10000 Steps
Depth 85mm
Length 130mm
Width 110mm
Mounting Type DIN Rail
Programming Language Used Ladder Logic
Number of Communication Ports 1
Output Current 3.6 (Per Unit) A, 300 (Per Point) mA, 900 (Per Common) mA
Maximum Operating Temperature +55°C
