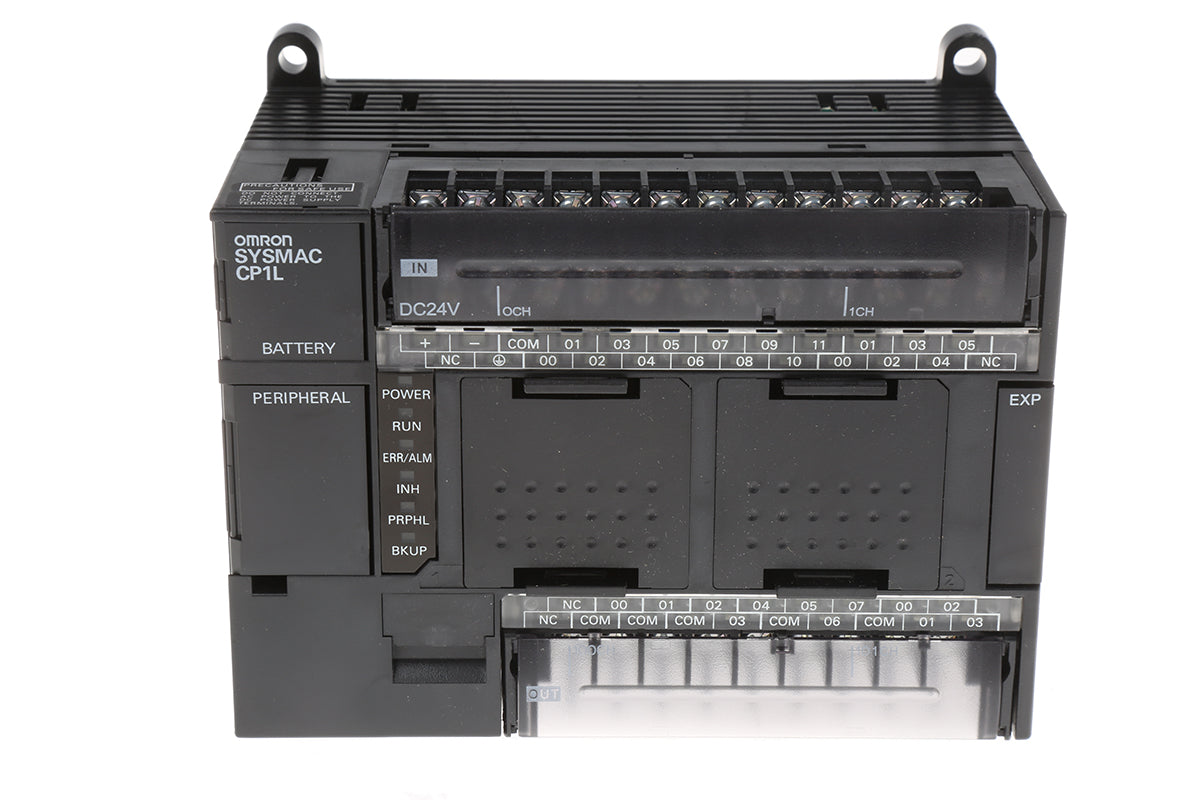

PLC OMRON CP1L-L20DR-A

The Omron CP1L is a programmable logic controller(PLC) with 8 relay output and USB networking computer interface. It has 5000 steps program capacity and 20 built-in I/O points. This PLC is for use with SYSMAC CP1L series. The series offers the compactness of a micro-PLC with the capability of a modular PLC. This range is not only compact, but also scalable, and it has faster processing speed than other controllers. This product has many advantages as compared to its earlier generation of PLCs like six in-built interrupts, high-speed counters, faster processing of instructions that speed up the entire system and structural text language support that makes mathematical operations much easier. It also has high precision positioning control suitable for advanced robotics.
Note
:
Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

Required AC power supply
Compatible with all the other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
Four high-speed encoder inputs and two high-speed pulse outputs
Operating temperature ranges between 0°C and 55°C
Memory size of 32k words
Instruction set compatible with CP1H, CJ1 and CS1 series PLCs
CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Motion functionality

Industrial automation
Robotics
Automobiles industry

UC1 certified
N certified
L certified
CE
cULus approved
Lloyd approved
NK certified
