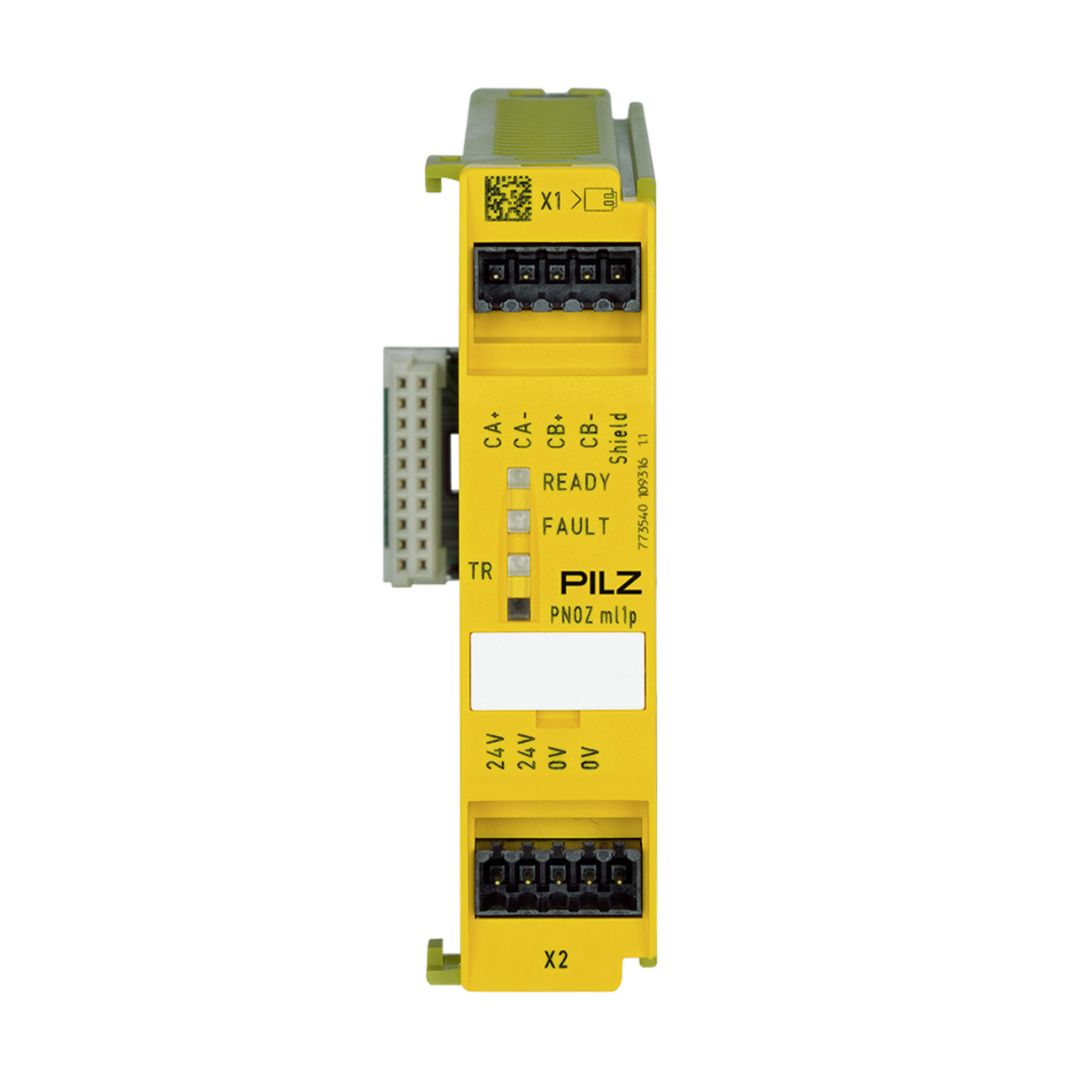

Safety Relay Pilz PNOZ ml1p safe link 24VDC Code 773540

Technical Data Sheets :

PNOZmulti Safe Link Expansion Module

• The PNOZ ml1p module is used for the safe connection of two PNOZmulti safety systems.

Features and Benefits

• Can be configured in the PNOZmulti Configurator
• Point-to-point connection via 4-core shielded twisted-pair cable
• 32 virtual inputs and 32 virtual outputs
• Status indicators
• Plug-in connection terminals
• Maximum of 4 PNOZ ml1p units can be connected to the base unit
• LEDs for operating status, error and connection status

Standards

• EN ISO 13849-1 PLe (Cat. 4); EN 954-1 Category Cat. 4; EN IEC 62061 SIL CL 3.

Approvals

CE, cULus Listed, TÜV, BG, CCC, KCC.
• Supplied with
• Screw terminals.
