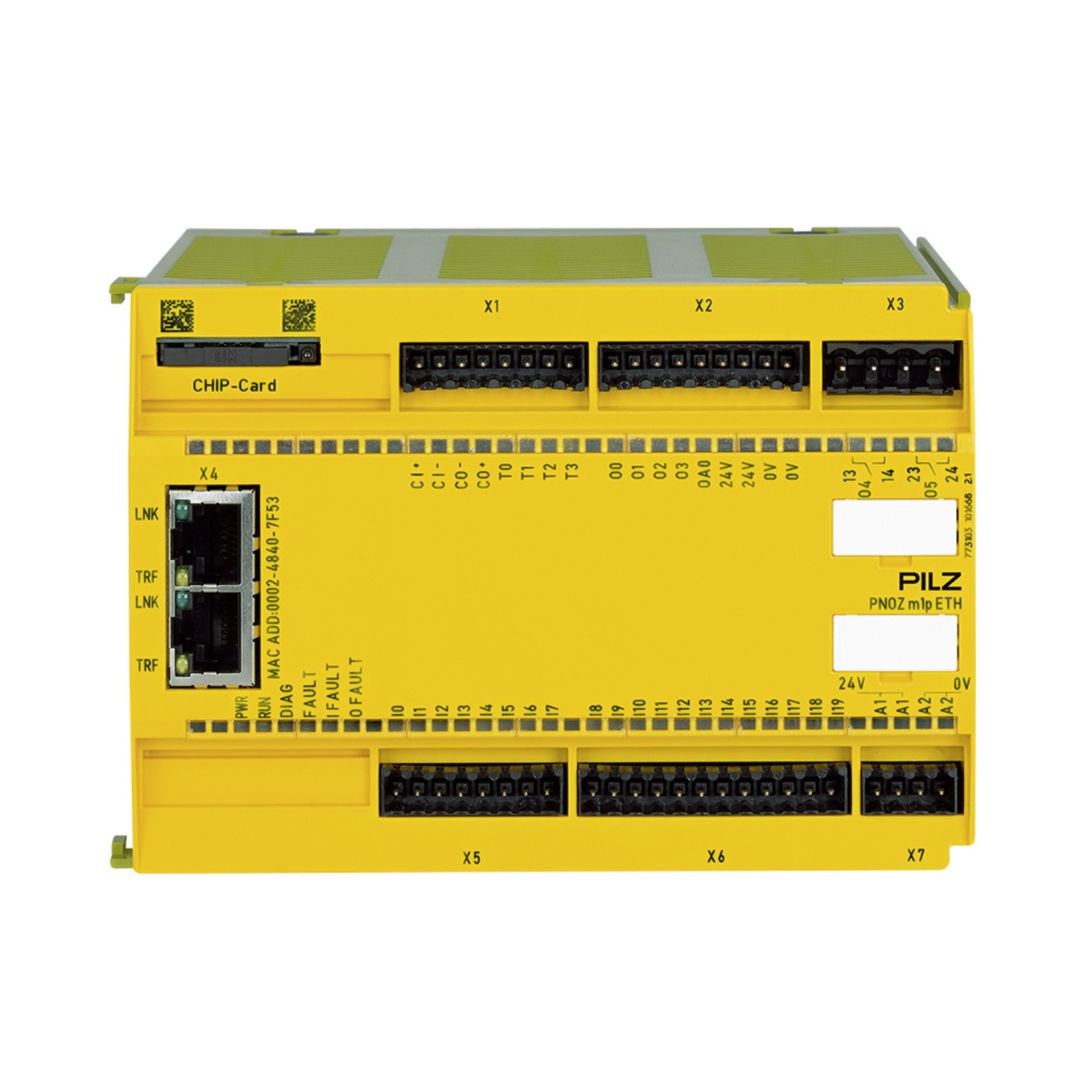

Safety Relay Pilz PNOZ m1p ETH Code773103

Technical Data Sheets :

Pilz Safety Controller

• The Pilz PNOZmulti series is a 20 safety inputs and 6 safety outputs safety controller.
• This is an innovative device with positive guided relay outputs and semiconductor outputs.
• The safety function remains effective in the case of a component failure.
• The relay contacts meet the requirements for safe separation through increased insulation.
• The safety outputs are tested periodically using a disconnection test.

Note

• Configuration software and pre: license sold separately
• Call Pilz to register, this activates the software and is used for technical queries and support from Pilz
• In order to program the controller from your PC, you will need an adaptor and cable

Inclusion

• Plug: in screw terminals and 32K SIM card

Features and Benefits

• E-STOP pushbutton
• Two: hand button
• Safety gate limit switch
• Reset button
• Light barrier
• Scanner
• Enable switch
• PSEN – operating mode selector switch – safety mat
• LED indicator for diagnostics, supply voltage, output circuits, and input circuits
• Circuit is redundant with built: in self: monitoring
• Maximum 8 expansion modules and 1 fieldbus module can be connected
• Monitors shorts between the safety outputs
• Plug: in connection terminals (either cage clamp terminal or screw terminal)

Certifications

• UL listed
• CCC certified
• BG certified
• VDE 0113Part 1
• EN 60204: 1
• GOST R certified
• TUV certified
• NFPA 79: 2002

Approvals

• UL, CCC, GOST R, TUV, NFPA 79:2002, UL508, OSHA

Features / Specifications

Block Diagram

Dimensions
