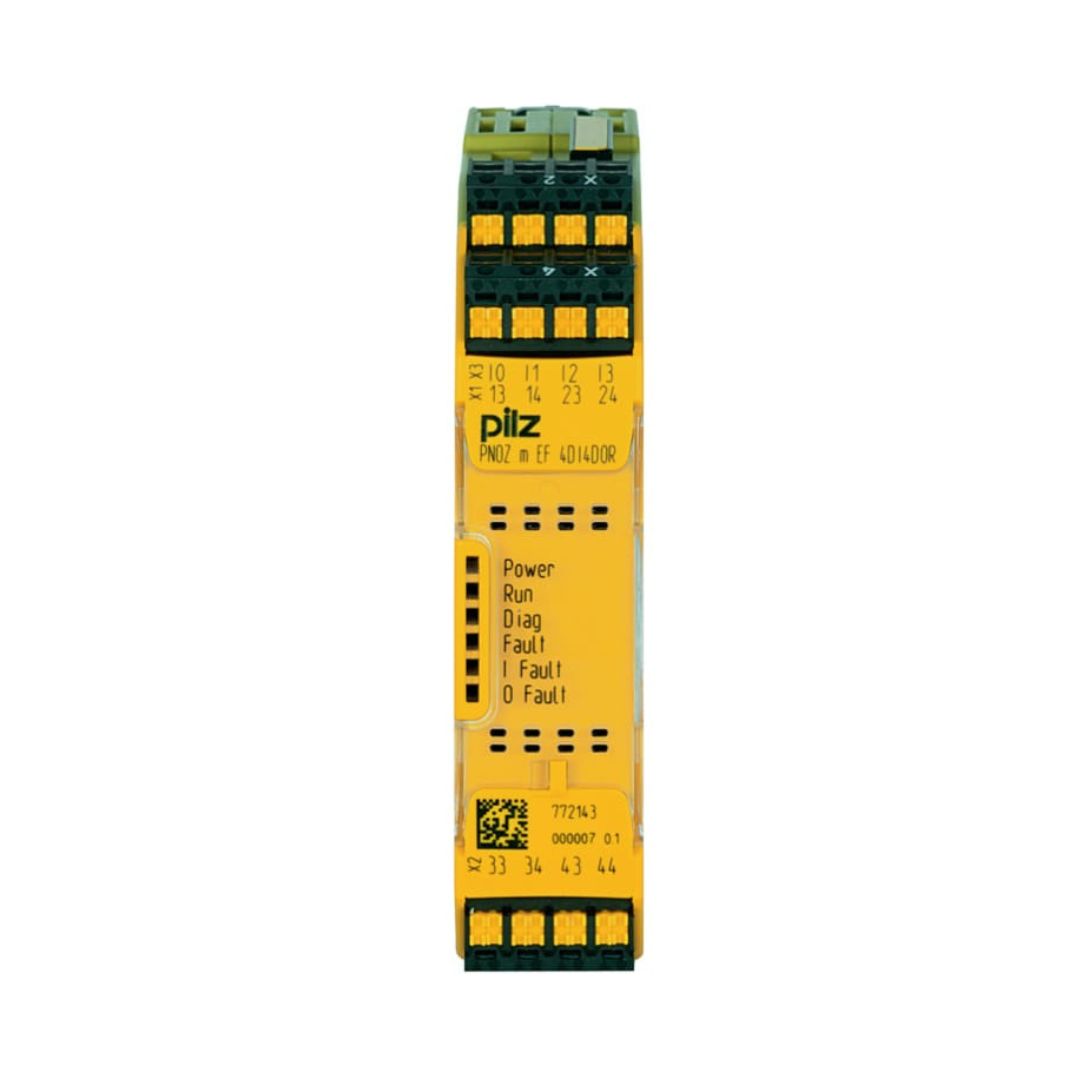

Safety Relay Pilz PNOZ m EF 4DI4DOR Code 772143

Technical Data Sheets :

Pilz Input/output Module

• The Pilz PNOZmulti 2 series input/output relay module has 4 safe inputs and 4 safe relay outputs.
• This expansion module connects to a base unit from the 2 configurable control system.
• It has a 24VDC supply voltage and a power rating of 2W. It is available in a screw terminal type.

Features and Benefits

• DIN rail mounting
• LED for error messages, diagnostics, supply voltage, output circuits, and input circuits
• Test pulse outputs used to monitor shorts across the inputs
• Monitoring of shorts between the safety outputs
• Operating temperature ranges between -10°C and 55°C

Certifications

• EN ISO 13849-1PLe
• EN ISO13849-1Cat4
• ENIEC62061
• SILCL3
• CSA certified
• UL listed
• TUV certified
• CCC certified
