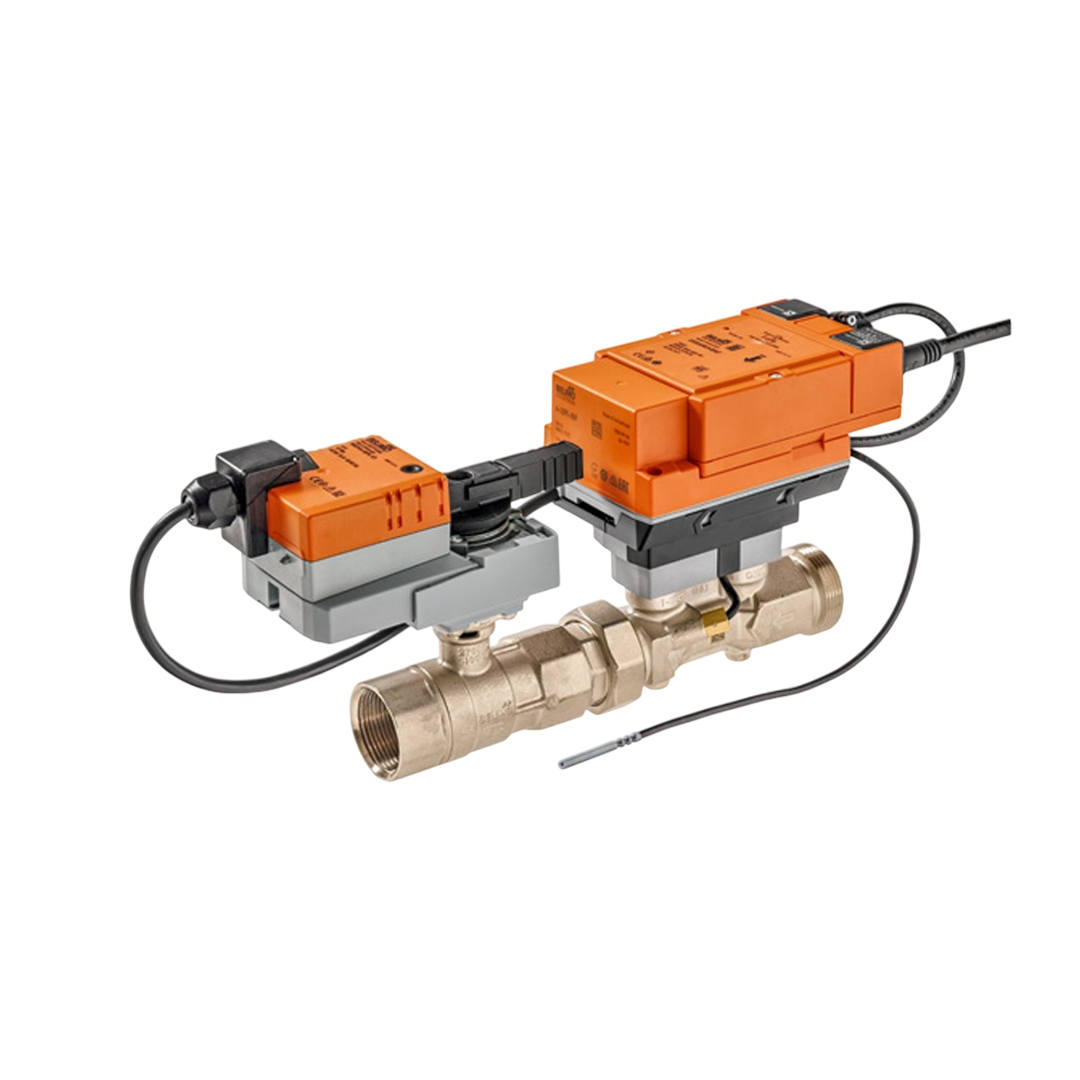

PICV Belimo EP080F+MOD
PICV Belimo EP080F+MOD
Regular price
180,500.00 ฿
Regular price
Sale price
180,500.00 ฿
Unit price
/
per
Belimo
รายละเอียด PICV Belimo EP080F+MOD
Valve specifications
type | 2 way |
V'nom [l/s] | 11 |
Adjustable flow rate | 30...100% of V'nom |
fluid | Cold water and warm water Water with a maximum of 50% glycol by volume |
Flow temperature | -10...120°C [14...248°F] |
Closing pressure | 690 kPa |
differential pressure | Δpmax 340 kPa |
Flow characteristics {tool} | same percentage |
Leakage rate {tool} | Tight bubbles, leakage rate A |
pipe connection | flange |
Actuator specifications
AC/DC voltage | AC/DC 24V |
Power consumption (working) | 6W |
Power consumption (waiting) | 4.5 W |
Power consumption for wire sizing | 10 VA |
Control line connection | Cable 1 m, 6x 0.75 mm² |
Control type | BACnet MS/TP, Modbus RTU, P-Bus, DC 2...10 VDC 0.5...10 V hybrid (communication/analog) |
Protection level | IP54 |
