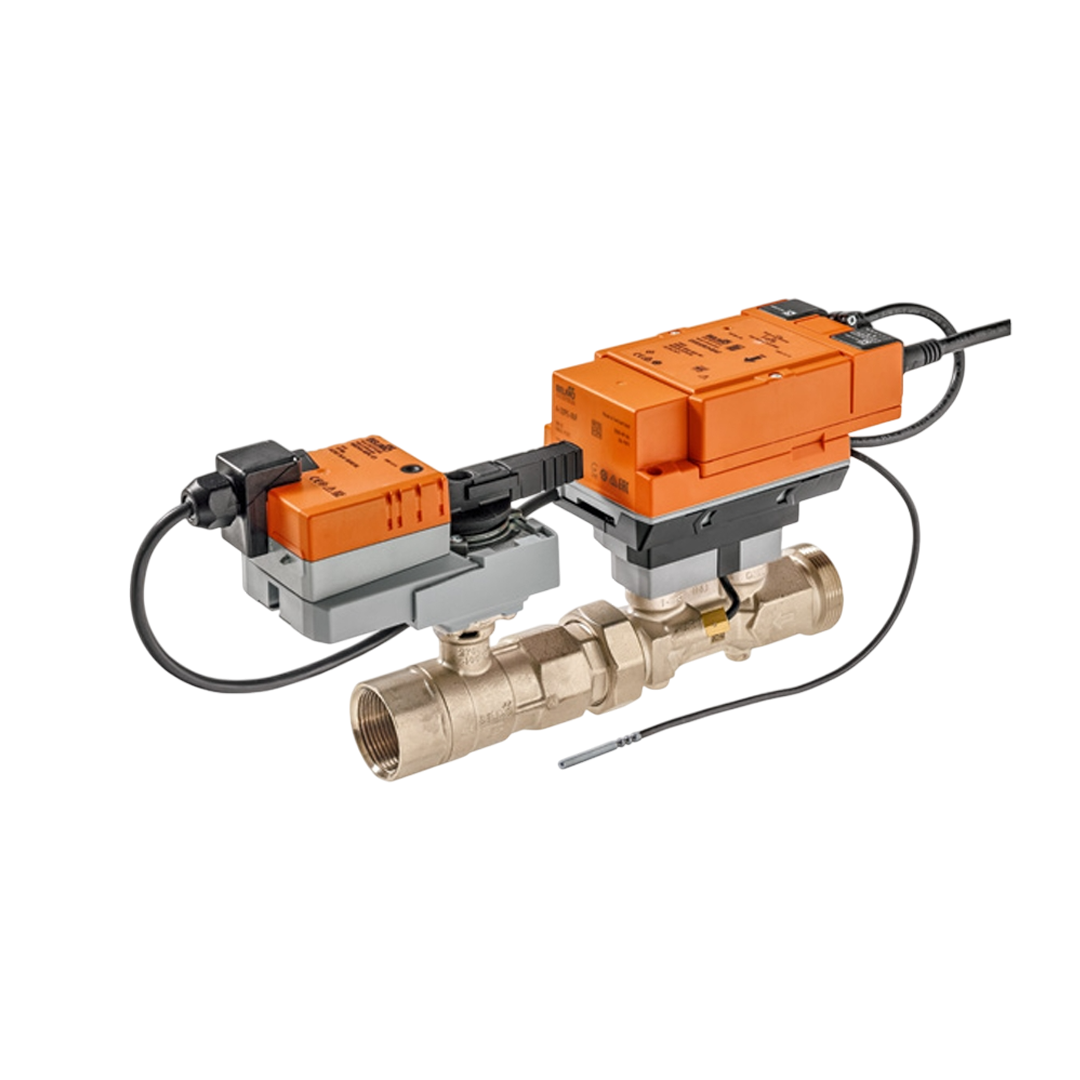

PICV Belimo EP065F+MOD
PICV Belimo EP065F+MOD
Regular price
168,800.00 ฿
Regular price
Sale price
168,800.00 ฿
Unit price
/
per
Belimo
รายละเอียด PICV Belimo EP065F+MOD
Valve specifications
type | 2 way |
V'nom [l/s] | 8 |
Adjustable flow rate | 30...100% of V'nom |
fluid | Cold and warm water, water mixed with glycol up to 50% by volume |
Flow temperature | -10...120°C [14...248°F] |
Closing pressure | 690 kPa |
Differential pressure | Δpmax 340 kPa |
Flow characteristics {Tools} | same percentage |
Leakage rate {Tools} | Tight with air bubbles Leakage rate A |
pipe connection | flange |
Actuator specifications
AC/DC voltage | AC/DC 24V |
Power consumption (work) | 6W |
Power consumption (waiting) | 4.5 W |
Power consumption for wire sizing | 10 VA |
Control line connection | Cable 1 m, 6x 0.75 mm² |
Control type | BACnet MS/TP, Modbus RTU, DC 2...10 VDC 0.5...10 V |
Hybrid (communication / analog) | yes |
Protection level | IP54 |
