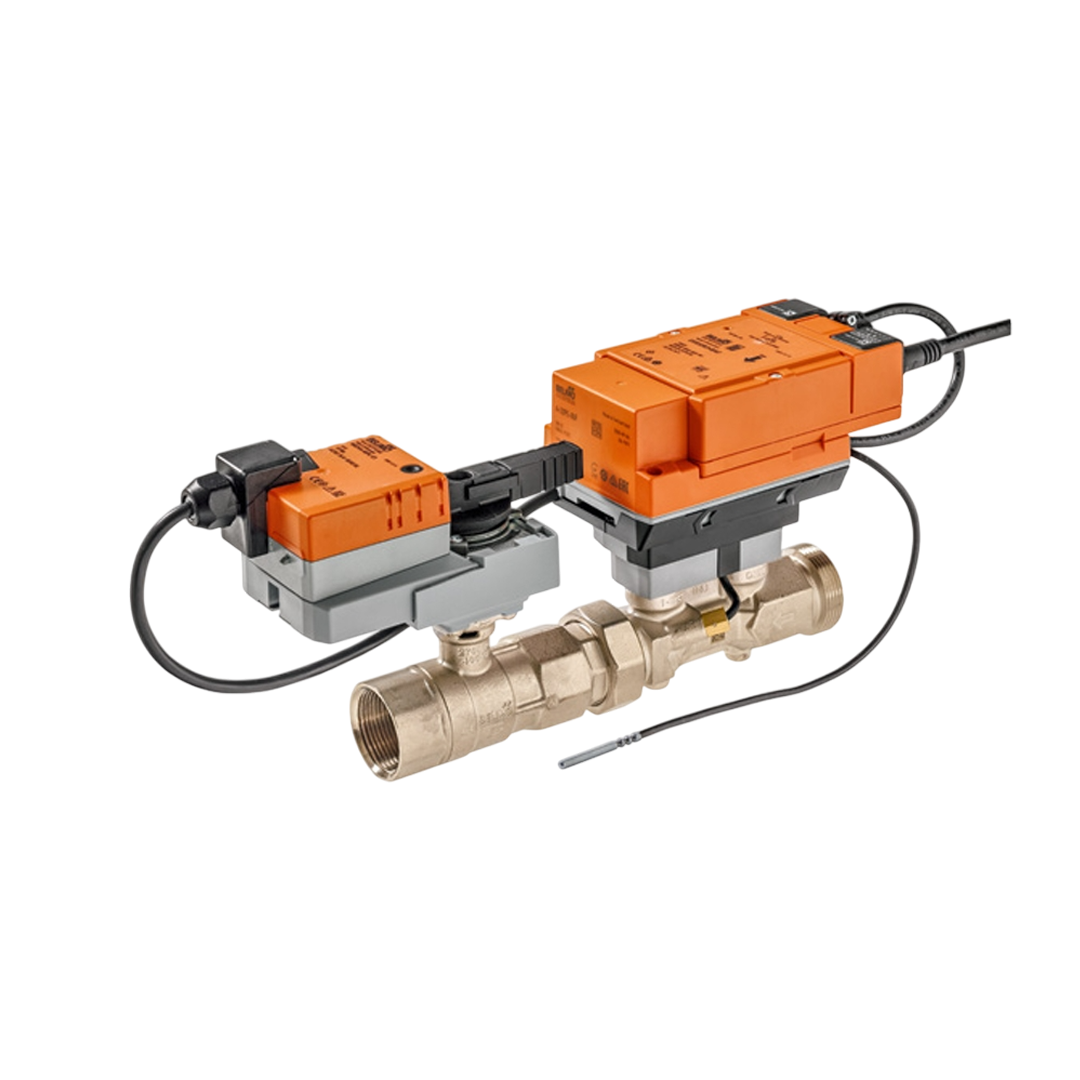

PICV Belimo EP050R+MOD-N
PICV Belimo EP050R+MOD-N
Regular price
53,700.00 ฿
Regular price
Sale price
53,700.00 ฿
Unit price
/
per
Belimo
รายละเอียด PICV Belimo EP050R+MOD-N
Valve specifications
Valve type | 2-way, swivel type [with/without solvent] |
Adjustable flow rate | 30...100% of normal flow rate (V'nom) |
fluid | Cold and warm water, water mixed with glycol up to 50% |
Fluid temperature | -10...120°C [14...248°F] |
Notes on fluid temperature | At a fluid temperature of -10...2°C it is recommended to use a valve core heater or valve neck lengthening. |
Shut-off pressure | 1400 kPa |
Overpressure | Δpmax 350 kPa |
Note about overpressure | 200 kPa for quiet operation |
Flow characteristics | same percentage |
Leak rate | Air tight, minimal leakage (AP) |
pipe connection | internal thread |
Actuator specifications
AC/DC voltage | AC/DC 24 volts |
Power consumption (working) | 4.5 watts |
Power consumption (waiting) | 1.4 watts |
Power consumption for wire sizing | 7 VA |
connection | Cable 1 meter, 6x 0.75 mm² |
Control type | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2...10 Volt, DC 0.5...10 Volt, Hybrid (communication / analog) |
Protection level | IP54 |
