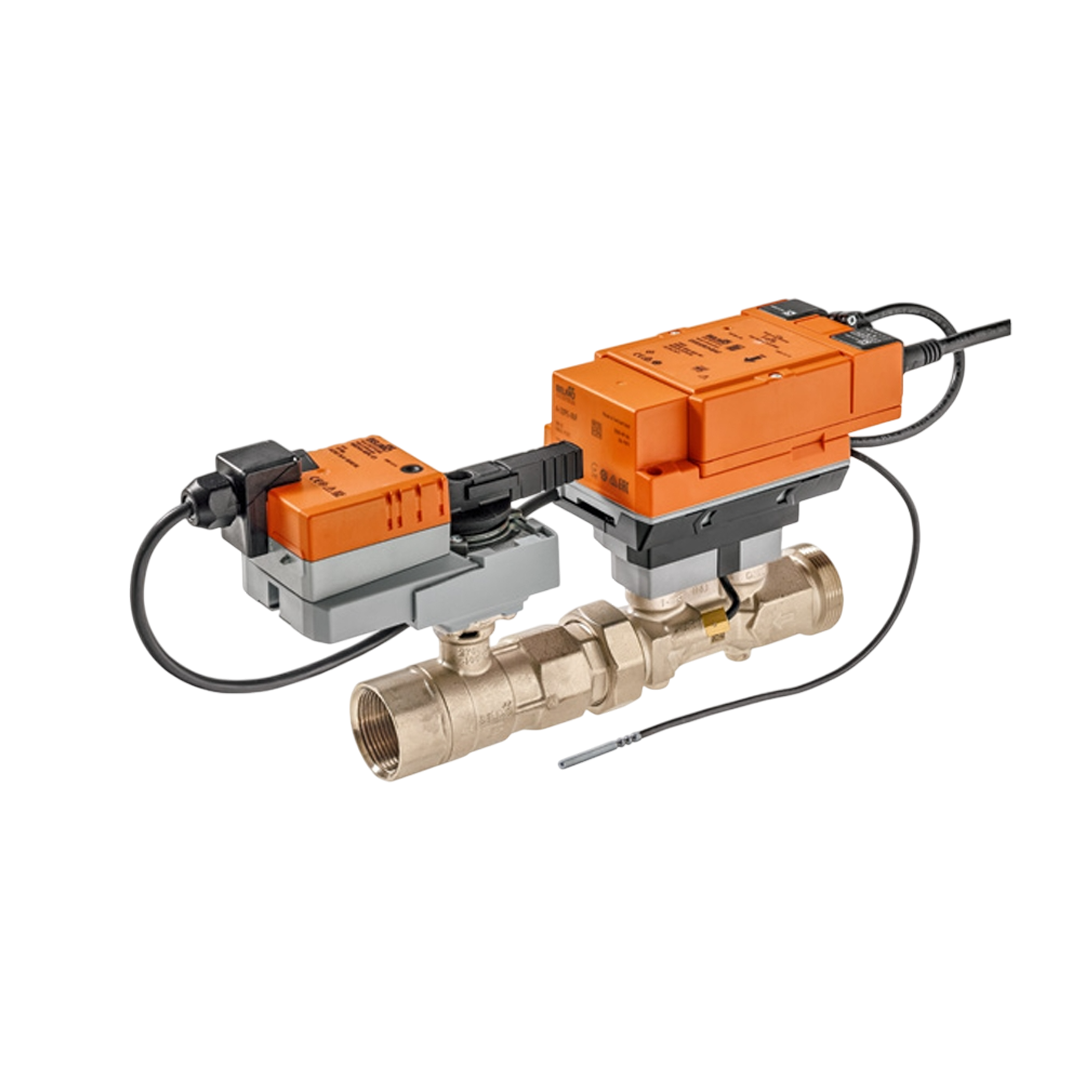

PICV Belimo EP050R+MOD
PICV Belimo EP050R+MOD
Regular price
53,700.00 ฿
Regular price
Sale price
53,700.00 ฿
Unit price
/
per
Belimo
รายละเอียด PICV Belimo EP050R+MOD
Valve specifications
Valve type | 2-way adjustable [l/s] |
flow rate | Adjustable 4.8 |
flow range | 30…100% of Vnom |
fluid | Cold and warm water, water mixed with glycol up to 50% |
Fluid temperature | -10…120°C [14…248°F] |
Caution regarding fluid temperature | At a fluid temperature of -10…2°C it is recommended to use a spindle heater or extension valve neck. |
Closing pressure | 1400 kPa |
Differential pressure | Δpmax 350 kPa |
Precautions regarding differential pressure | 200 kPa for quiet operation |
Flow characteristics | same percentage |
Leakage rate | Tight against air bubbles, leakage rate A |
pipe connection | internal thread |
Actuator specifications
AC/DC voltage | AC/DC 24 volts |
Power consumption (working) | 4.5 watts |
Power consumption (waiting) | 1.4 watts |
Power consumption for wire sizing | 7 VA |
connection | Cable 1 meter, 6x 0.75 mm² |
Control type | BACnet MS/TP |
Modbus RTU | MP-Bus DC 2...10 Volts DC 0.5...10 Volts Hybrid (Communication / Analog) |
Protection level | IP54 |
