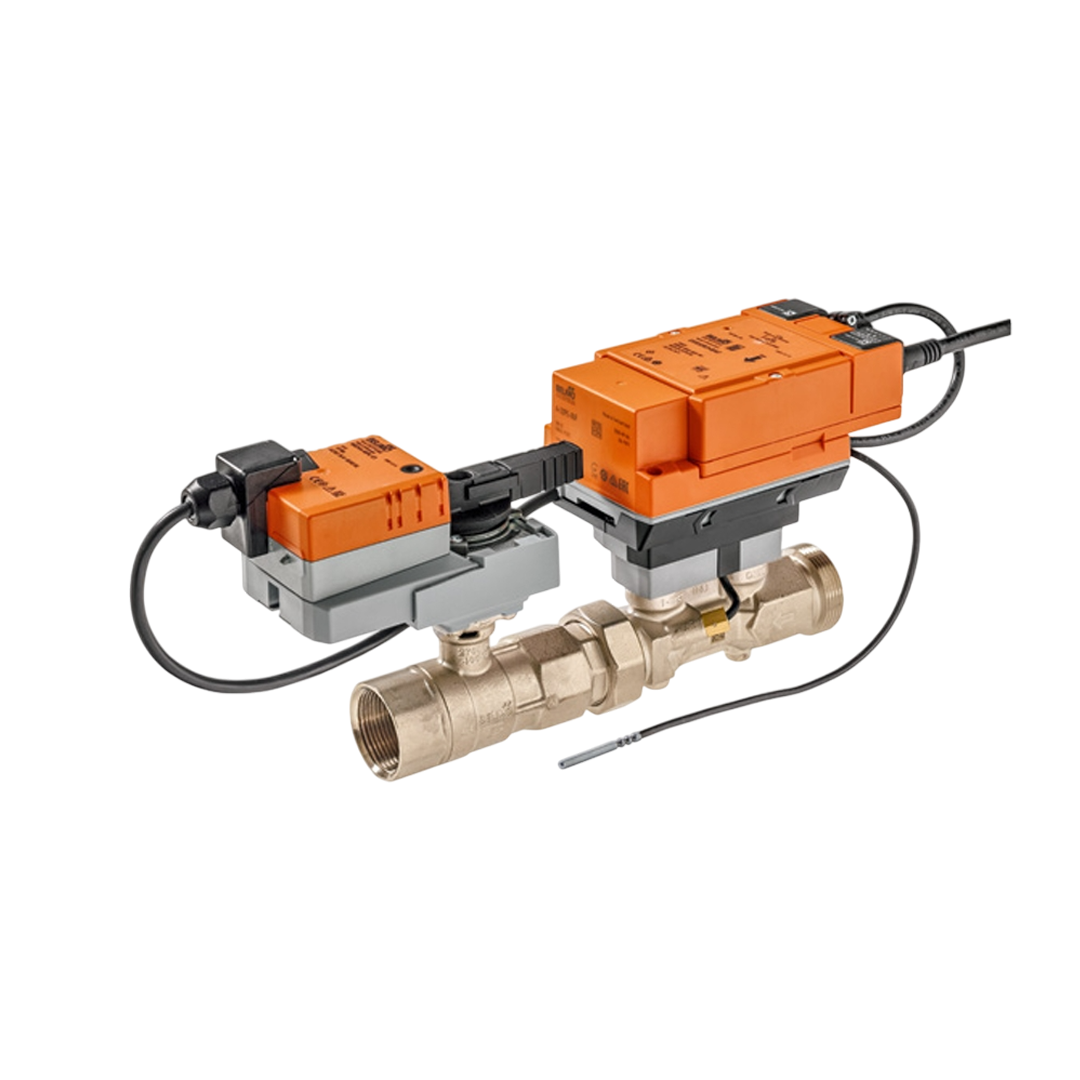

PICV Belimo EP040R+MOD

PICV Belimo EP040R+MOD

46,500.00 ฿
46,500.00 ฿
Sale Sold out

Belimo

รายละเอียด PICV Belimo EP040R+MOD

Valve specifications

Valve type 2-way, swivel type [Short/Long version]
Adjust flow rate Got 2.5 levels
flow range 30...100% of normal flow rate (V'nom)
fluid Cold and warm water, water mixed with glycol up to 50%
Fluid temperature -10...120°C [14...248°F]
Note the fluid temperature. At a fluid temperature of -10...2°C it is recommended to use a spool heater or valve neck connection.
Closing pressure 1400 kPa
Differential pressure Δpmax 350 kPa
Note the differential pressure. 200 kPa for quiet operation
Flow characteristics the same percentage
Leakage rate Air tight, leakage rate AP0
pipe connection internal thread

Actuator specifications

AC/DC voltage AC/DC 24 volts
Power consumption (work) 4.5 watts
Power consumption (waiting) 1.4 watts
Power consumption for wire sizing 7 VA
connection Cable 1 meter, 6x 0.75 mm²
Control type BACnet MS/TP, Modbus RTU, MP-Bus, DC 2...10 Volt, DC 0.5...10 Volt, Hybrid (communication / analog)
Protection level IP54
