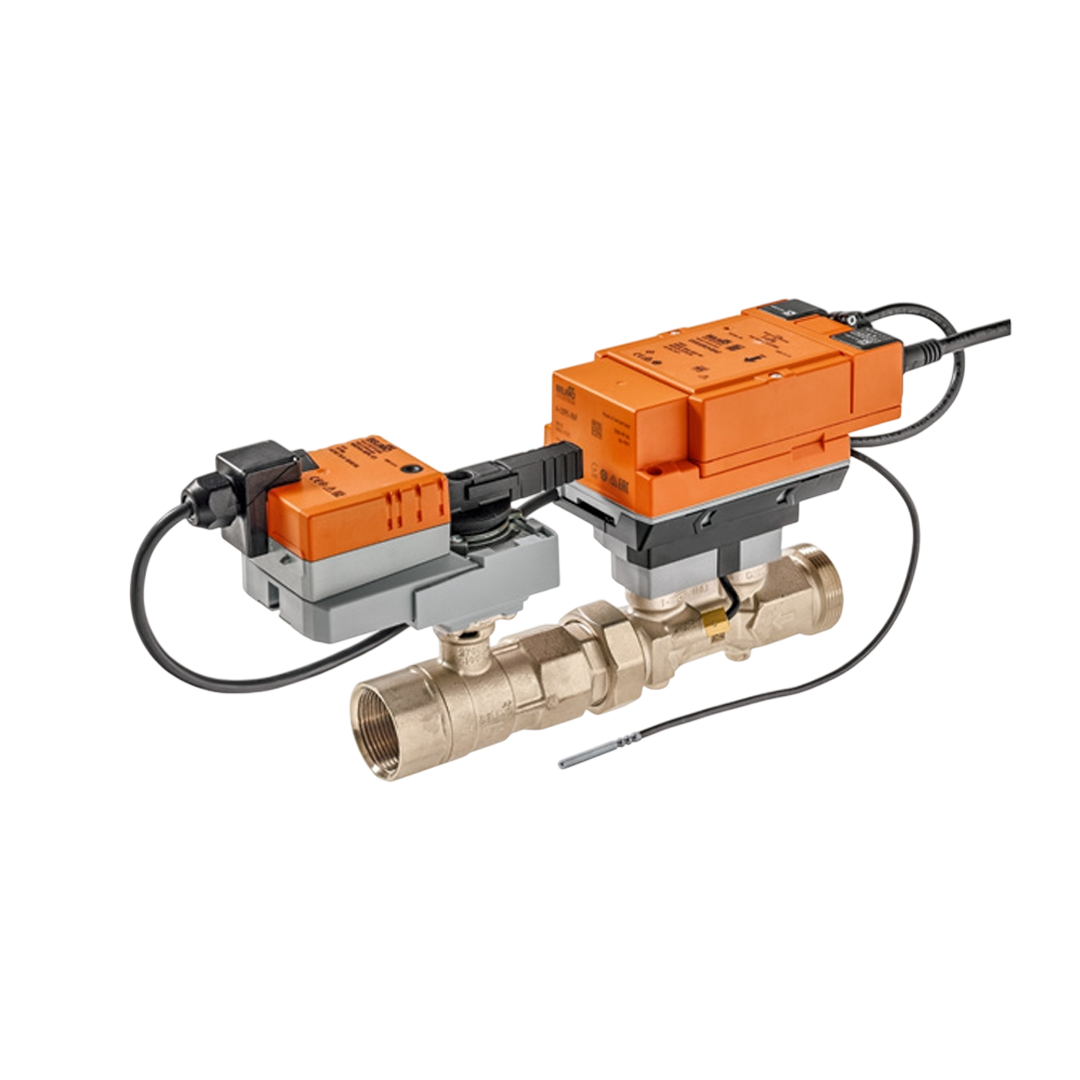

PICV Belimo EP032R+MOD
PICV Belimo EP032R+MOD
Regular price
44,700.00 ฿
Regular price
Sale price
44,700.00 ฿
Unit price
/
per
Belimo
รายละเอียด PICV Belimo EP032R+MOD
Valve specifications
Valve type | 2-way adjustable speed [l/s] |
Flow rate adjustment | 1.8 Adjustable flow rate 30...100% of V'nom. |
fluid | Cold and warm water, water mixed with glycol up to 50% vol. |
Fluid temperature | -10...120°C [14...248°F] |
Note the fluid temperature. | At a fluid temperature of -10...2°C, a core heater or valve neck extension is recommended. |
Closing pressure | 1400 kPa |
Differential pressure | Δpmax350 kPa |
Note the differential pressure. | 200 kPa for low noise operation |
Flow characteristics | the same percentage |
Leakage rate | Tight, dense, no air leaks |
pipe connection | internal thread |
Actuator specifications
AC/DC voltage | AC/DC 24 volts |
Power consumption (working) | 4.5 watts |
Power consumption (waiting) | 1.4 watts |
Power consumption for wire sizing | 7 VA |
connection | Cable 1 meter, 6x 0.75 mm² |
Control type | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2...10 Volt, DC 0.5...10 Volt, Hybrid (communication / analog) |
Protection level | IP54 |
