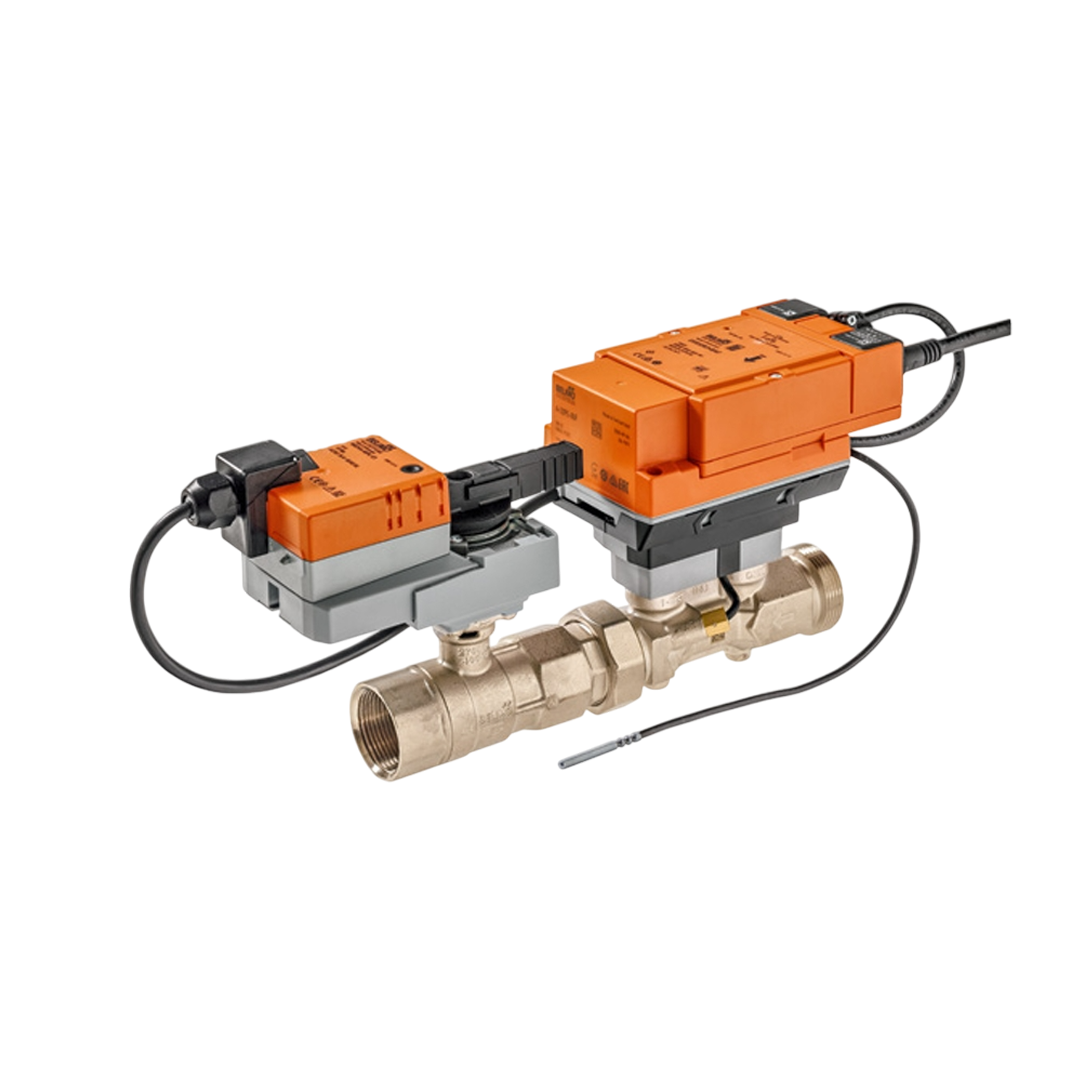

PICV Belimo EP025R+MOD
PICV Belimo EP025R+MOD
Regular price
38,000.00 ฿
Regular price
Sale price
38,000.00 ฿
Unit price
/
per
Belimo
รายละเอียด PICV Belimo EP025R+MOD
Valve specifications
Valve type | 2-way adjustable [l/s] |
Adjustable flow rate | 1.15 |
fluid | Cold and warm water, water mixed with glycol up to 50% |
Fluid temperature | -10...120°C [14...248°F] |
Caution regarding fluid temperature | At a fluid temperature of -10...2°C it is recommended to use a heater core or extend the valve body. |
Closing pressure | 1400 kPa |
Differential pressure | Δpmax350 kPa |
Precautions regarding differential pressure | 200 kPa for quiet operation |
Flow characteristics | same percentage |
Leakage rate | Tight, dense, free of air bubbles |
pipe connection | internal thread |
Actuator specifications
AC/DC voltage | AC/DC 24V |
Power consumption (working) | 3.5 W |
Power consumption (waiting) | 1.3 W |
Power consumption for wire sizing | 6 VA |
Control line connection | Cable 1 m, 6x 0.75 mm² |
Control type | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2...10 V, DC 0.5...10 V, hybrid (communication / analog) |
Protection level | IP54 |
