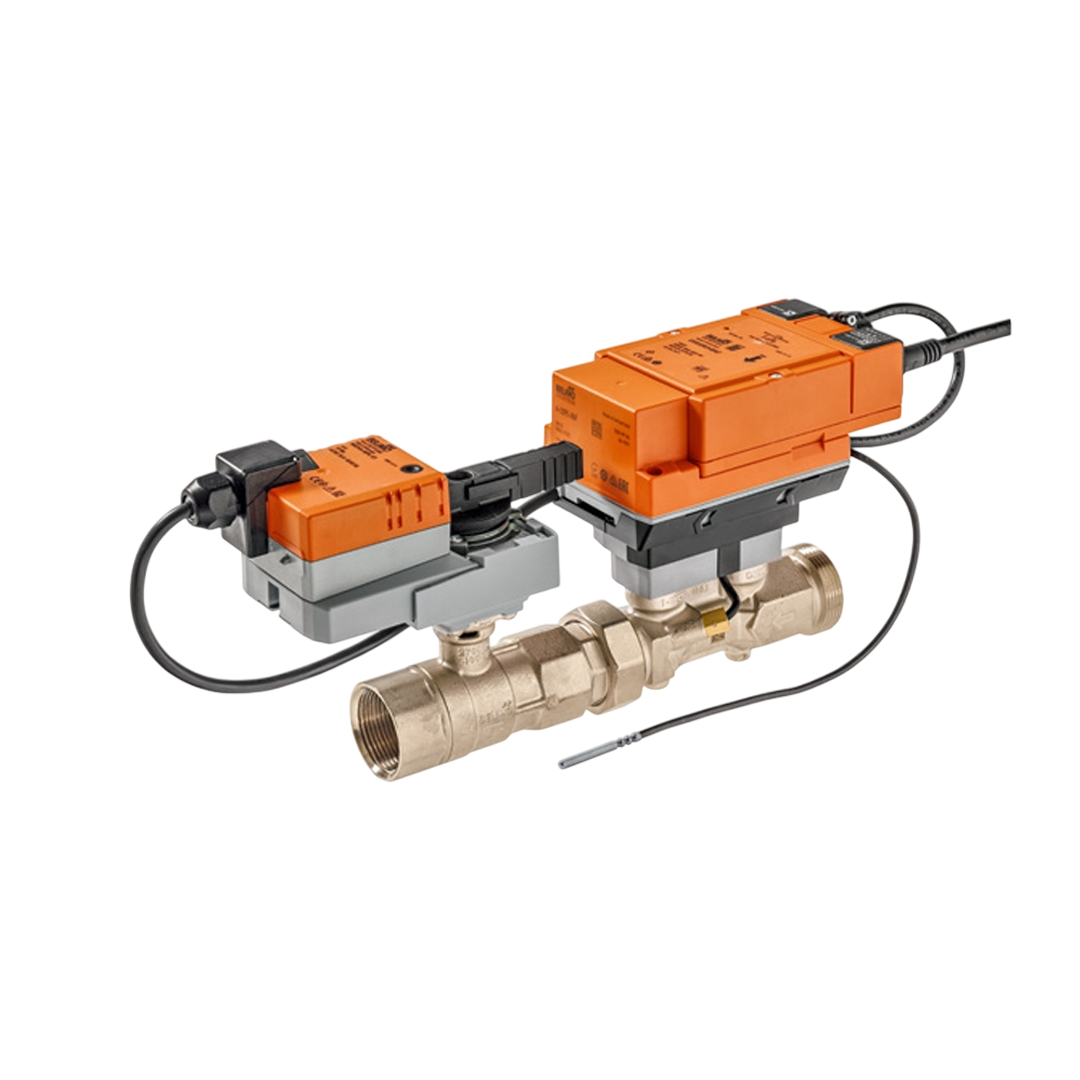

PICV Belimo EP020R+MOD
PICV Belimo EP020R+MOD
Regular price
36,300.00 ฿
Regular price
Sale price
36,300.00 ฿
Unit price
/
per
Belimo
กรุณาตรวจสอบสต็อกก่อนชำระเงินรายละเอียด PICV Belimo EP020R+MOD
Valve specifications
type | 2 way |
Body type | V'nom [long/short] |
Adjustable flow rate | 30...100% of V'nom |
fluid | Cold and warm water, water mixed with glycol up to 50% |
Fluid temperature | -10...120°C [14...248°F] |
Note the fluid temperature. | At a fluid temperature of -10...2°C, a spindle heater or valve neck extension is recommended. |
deadlock pressure | 1400 kPa |
Overpressure | Δpmax350 kPa |
Note overpressure | 200 kPa for quiet operation |
Flow characteristics | same percentage |
Leak rate | Air tight, leakage rate A |
pipe connection | internal thread |
Actuator specifications
AC/DC voltage | AC/DC 24 volts |
Power consumption (work) | 3.5 watts |
Power consumption (waiting) | 1.3 watts |
Power consumption for wire sizing | 6 volt amperes |
connection | Cable 1 meter, 6x 0.75 sq mm |
Control type | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2...10 Volts, DC 0.5...10 Volts, Hybrid (communication / analog) |
Protection level | IP54 |
