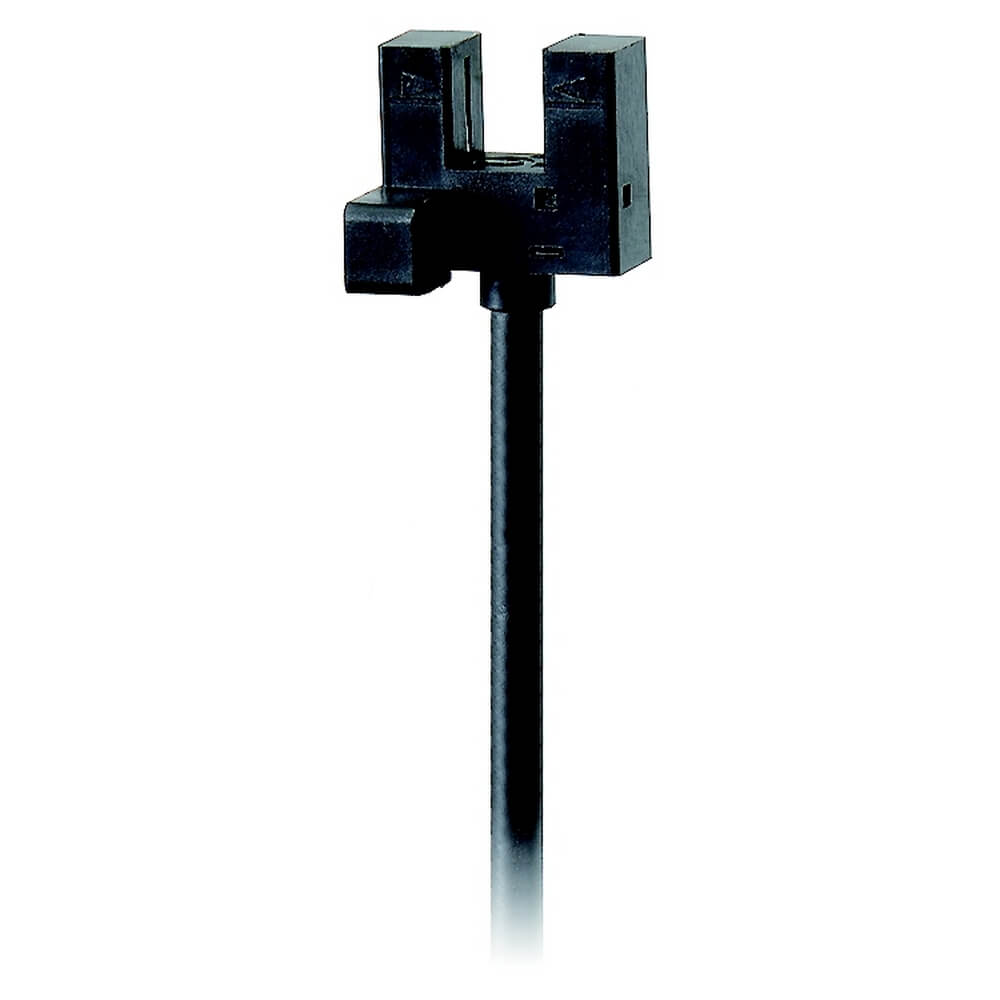

EE-SX91/95 Series Photomicrosensor
Pre-wired compact sized slotted photoelectric sensors for a wide range of applications
All types have both light-ON and dark-ON outputs
High visibilty wide-angle indicator (red LED) allows for installation in any location
Mounting possible with either M2 or M3 screws
0.025mm differential sensing capability
Pre-wired with 1m of 4-core cable
Selection Guide (refer to image):
Standard —— F-shaped —— U-shaped
——— L-shaped —— R-shaped ———
| คุณสมบัติ |
Value |
| Sensor Style |
Block |
| Detection Type |
Through Beam |
| Detection Range |
5 mm |
| Output Type |
NPN |
| Electrical Connection |
4 Wire Cable 1 m |
| Maximum DC Voltage |
24V |
| Light Source |
Infrared |
| IP Rating |
IP50 |
| Maximum Current |
15 mA |
| Maximum Operating Temperature |
+55°C |
| Housing Material |
Polybutylene Phthalate |
| Minimum Operating Temperature |
-25°C |
