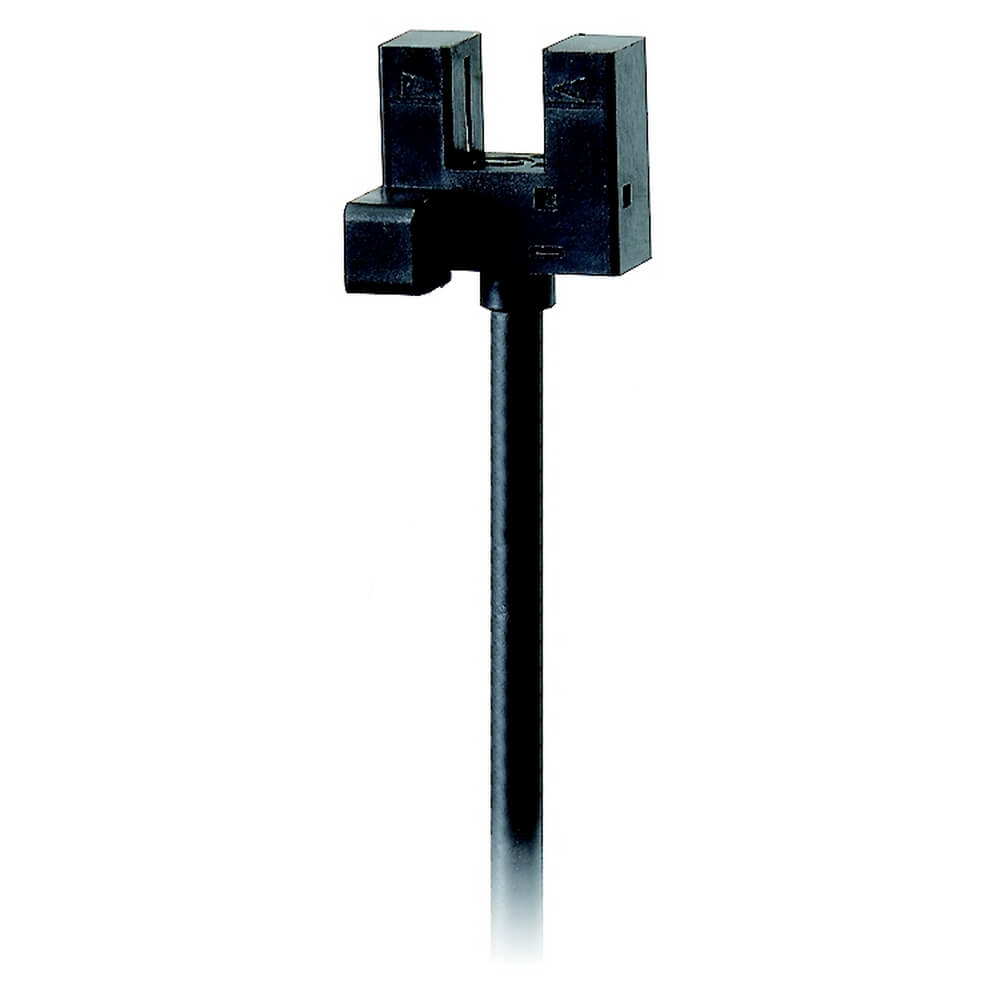

EE-SX77/87 Photomicrosensor Proximity Switch
The EE-SX77/87 photomicrosensors series offer a slim, compact alternative proximity switch with a wide operating voltage of 5 to 24 Vdc. An indicator light visible from both sides makes operation monitoring easier and some models offer an incident light. Various models are available in both Light-On and Dark-On.
5 mm slot width
Wide supply voltage range of 5 to 24 Vdc
Low current consumption
Operating temperature range of -25 to +55 °C
Prewired 2 meter cable
Standards
IEC60529 IP60
| คุณสมบัติ |
Value |
| Sensor Style |
Fork |
| Detection Type |
Through Beam |
| Detection Range |
5 mm |
| Output Type |
NPN |
| Electrical Connection |
Pre-Wired Cable |
| Maximum DC Voltage |
24V |
| Light Source |
Infrared |
| IP Rating |
IP60 |
| Maximum Current |
35 mA |
| Maximum Operating Temperature |
+55°C |
| Minimum Operating Temperature |
-25°C |
| Housing Material |
Polybutylene Phthalate |
