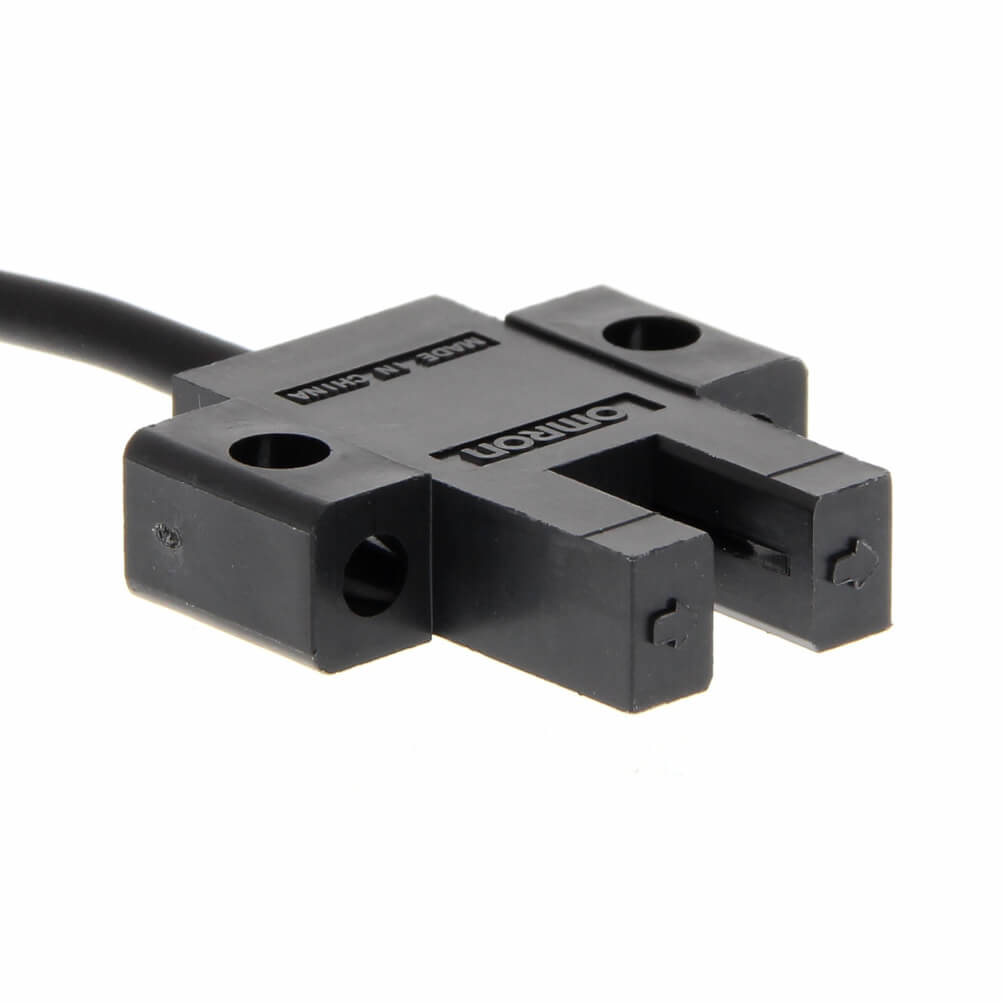

EESX47/67 Photo-Interrupter (Slotted Head) Proximity Switches
Typical installations are, assembly robots, cream solder print machines and PCB assembly machines.
Black plastic housing
LED indication
IP50
Operating temperature range: -10° to +55° C
Suitable connectors are stock numbers
219-2448 and
219-2454
| คุณสมบัติ |
Value |
| Sensor Style |
Fork |
| Detection Type |
Through Beam |
| Detection Range |
5 mm |
| Output Type |
NPN |
| Maximum DC Voltage |
24V |
| Terminal Type |
Pre-Wired |
| Light Source |
Infrared |
| IP Rating |
IP50 |
| Maximum Current |
35 mA |
| Housing Material |
PBT |
| Maximum Operating Temperature |
+55°C |
| Minimum Operating Temperature |
-25°C |
