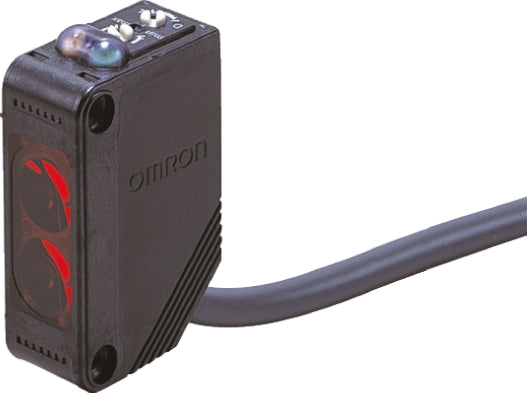

E3Z-LS Distance Settable Sensors
The E3Z-LS range of photoelectric sensors are compact in design with a built in amplifier. E3Z-LS distance settable sensors are unaffected by colour or background whilst able to detect minute steps.
Simple positioning settings using a clear LED spot
Distance setting by 5 turn endless adjuster
Load power supply voltage: 26.4 Vdc max
Load current: 100 mA max
Open collector output
Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention
IP67 rated
| คุณสมบัติ |
Value |
| Sensor Style |
Block |
| Detection Type |
Background Suppression |
| Detection Range |
2 → 80 mm |
| Output Type |
PNP |
| Electrical Connection |
Pre-Wired Cable |
| Maximum DC Voltage |
26.4V |
| Light Source |
LED |
| IP Rating |
IP67 |
| Maximum Current |
100 mA |
| Response Time |
1 ms |
| Series |
E3Z |
| Housing Material |
PBT |
