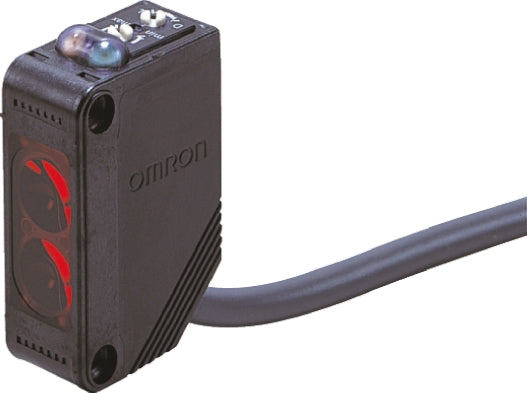

E3Z series photoelectric switches
Photoelectric sensor suitable for a wide range of applications
Pre-wired connection method (standard length 2 meters) or with M8 connector
Degree of protection IP67 (IEC60529)
Supply voltage: 12 to 24 V dc ±10% PNP output
Sensitivity adjustment via rotary potentiometer
| คุณสมบัติ |
Value |
| Sensor Style |
Block |
| Detection Type |
Retroreflective |
| Detection Range |
80 → 500 mm |
| Output Type |
PNP |
| Electrical Connection |
M8 Connector |
| Maximum DC Voltage |
26.4V |
| Light Source |
LED |
| IP Rating |
IP67 |
| Maximum Current |
100 mA |
| Response Time |
1 ms |
| Maximum Operating Temperature |
+55°C |
| Housing Material |
PBT |
| Series |
E3Z |
| Minimum Operating Temperature |
-25°C |
