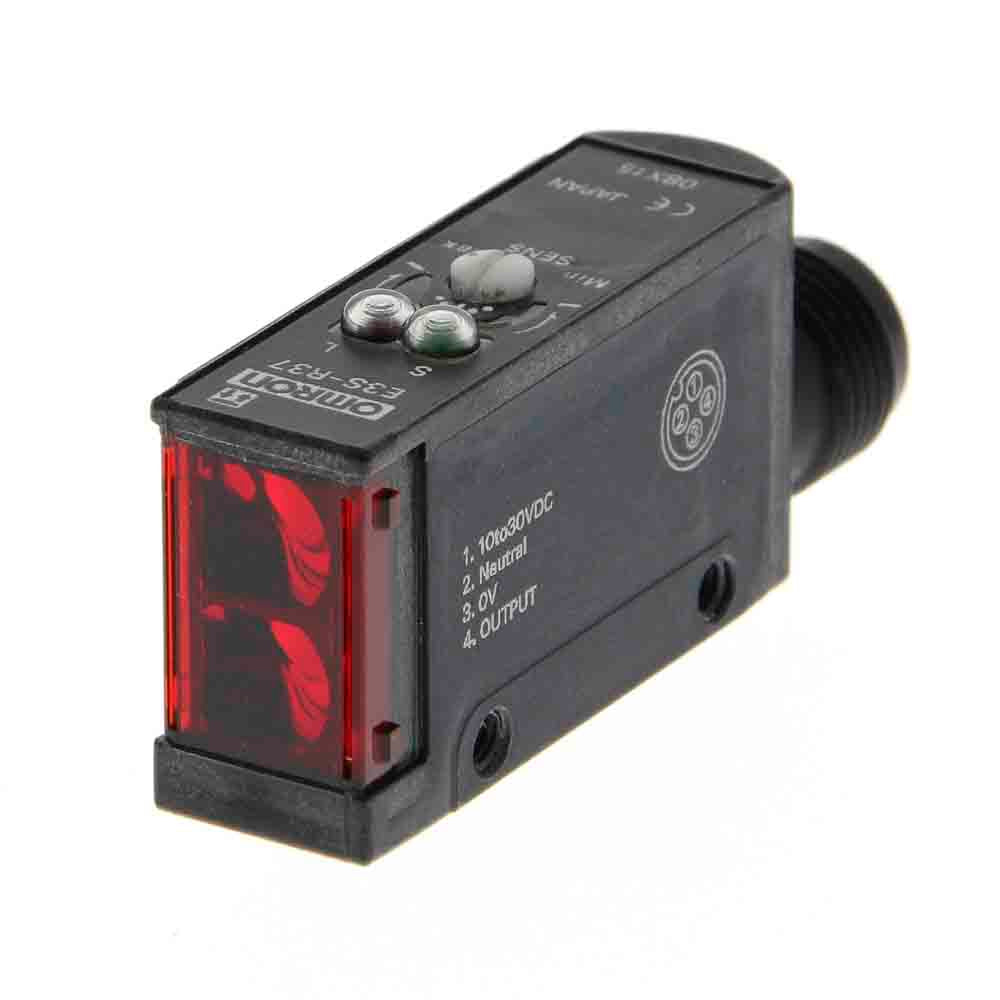

Omron Photoelectric Sensor E3SRS30E430
Omron Photoelectric Sensor E3SRS30E430
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
18,366.00 ฿
Regular price
Sale price
18,366.00 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Omron Photoelectric Sensor E3SRS30E430
E3S-RS Series Short Range Clear Object Sensors
Die-cast Zinc body PNP or NPN version sensors available for sensing cylindrical (not flat) objects
Light On/dark On operation selectable
Response time: 1ms (ON or OFF)
One-turn sensitivity adjustment
IR (Infrared) LED Light Source
Load Short-Circuit Protection
Mutual interference prevention
Supply Voltage: 12 to 24 Vdc
Current Consumption 40 mA
Operating Temperature: 0°C to 40°C
Housing Material: Zinc die-cast (Lens: Polycarbonate)
Connection: Pre-wired cable included
E39-R1 reflector included
IP67 Environmental Ingress Protection
Response time: 1ms (ON or OFF)
One-turn sensitivity adjustment
IR (Infrared) LED Light Source
Load Short-Circuit Protection
Mutual interference prevention
Supply Voltage: 12 to 24 Vdc
Current Consumption 40 mA
Operating Temperature: 0°C to 40°C
Housing Material: Zinc die-cast (Lens: Polycarbonate)
Connection: Pre-wired cable included
E39-R1 reflector included
IP67 Environmental Ingress Protection
| คุณสมบัติ | Value |
| Sensor Style | Block |
| Detection Type | Retroreflective |
| Detection Range | 300 mm |
| Output Type | NPN |
| Electrical Connection | 3-Wire Cable 2m |
| Maximum DC Voltage | 24V |
| Light Source | Infrared |
| IP Rating | IP67 |
| Maximum Current | 80 mA |
| Response Time | 1 ms |
| Series | E3S |
| Minimum Operating Temperature | -25°C |
| Housing Material | Die Cast Zinc |
| Maximum Operating Temperature | +55°C |
