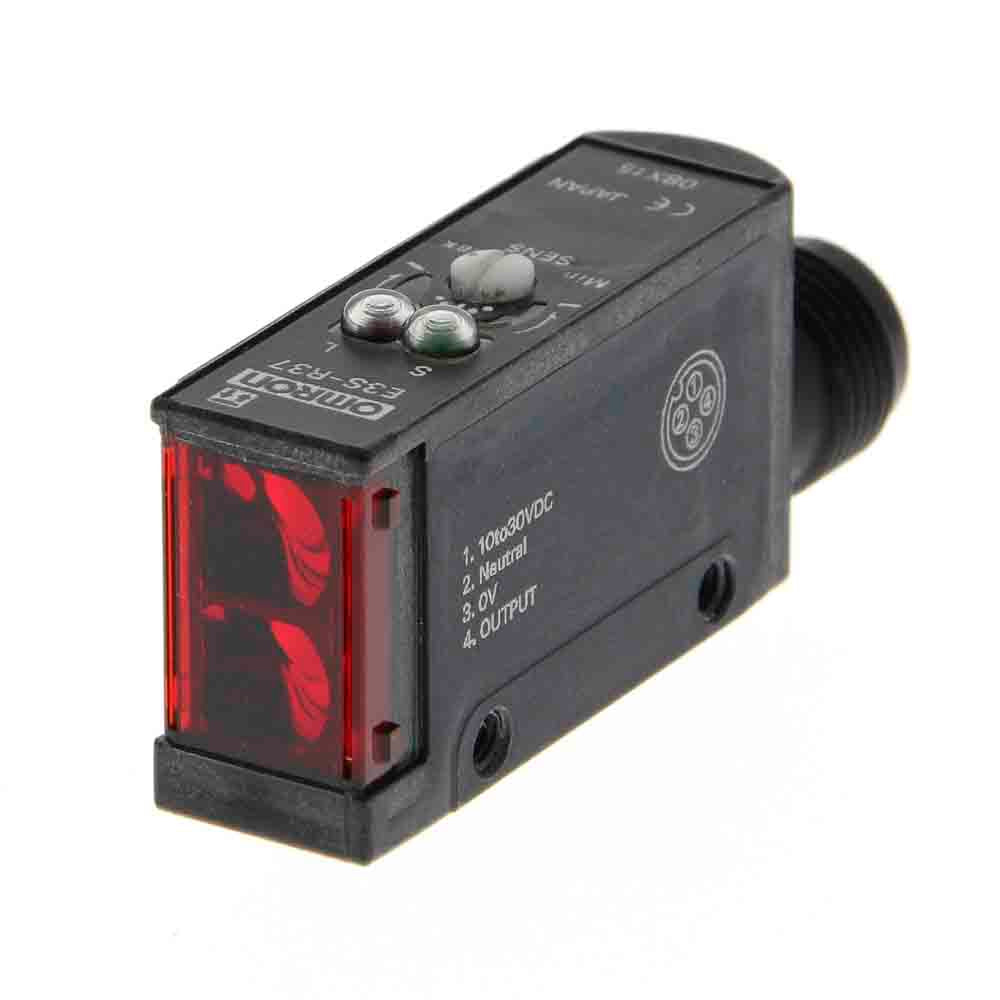

Omron Photoelectric Sensor E3SGS3B4
Omron Photoelectric Sensor E3SGS3B4
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
11,188.00 ฿
Regular price
Sale price
11,188.00 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Omron Photoelectric Sensor E3SGS3B4
Slot Sensors, Through Scan
LED 'ON' and Stability indicators
Light On/ Dark On selectable
Sensitivity adjustment potentiometer
Switching frequency 500Hz
Operating temperature range -25° to +55° C
Light On/ Dark On selectable
Sensitivity adjustment potentiometer
Switching frequency 500Hz
Operating temperature range -25° to +55° C
| คุณสมบัติ | Value |
| Sensor Style | Fork |
| Detection Type | Through Beam (Fork) |
| Detection Range | 30 mm |
| Output Type | PNP |
| Electrical Connection | 3-Wire Cable 2m |
| Maximum DC Voltage | 24V |
| Light Source | Infrared |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | 1 ms |
| Maximum Operating Temperature | +55°C |
| Series | E3S |
| Minimum Operating Temperature | -25°C |
| Housing Material | Metal |
