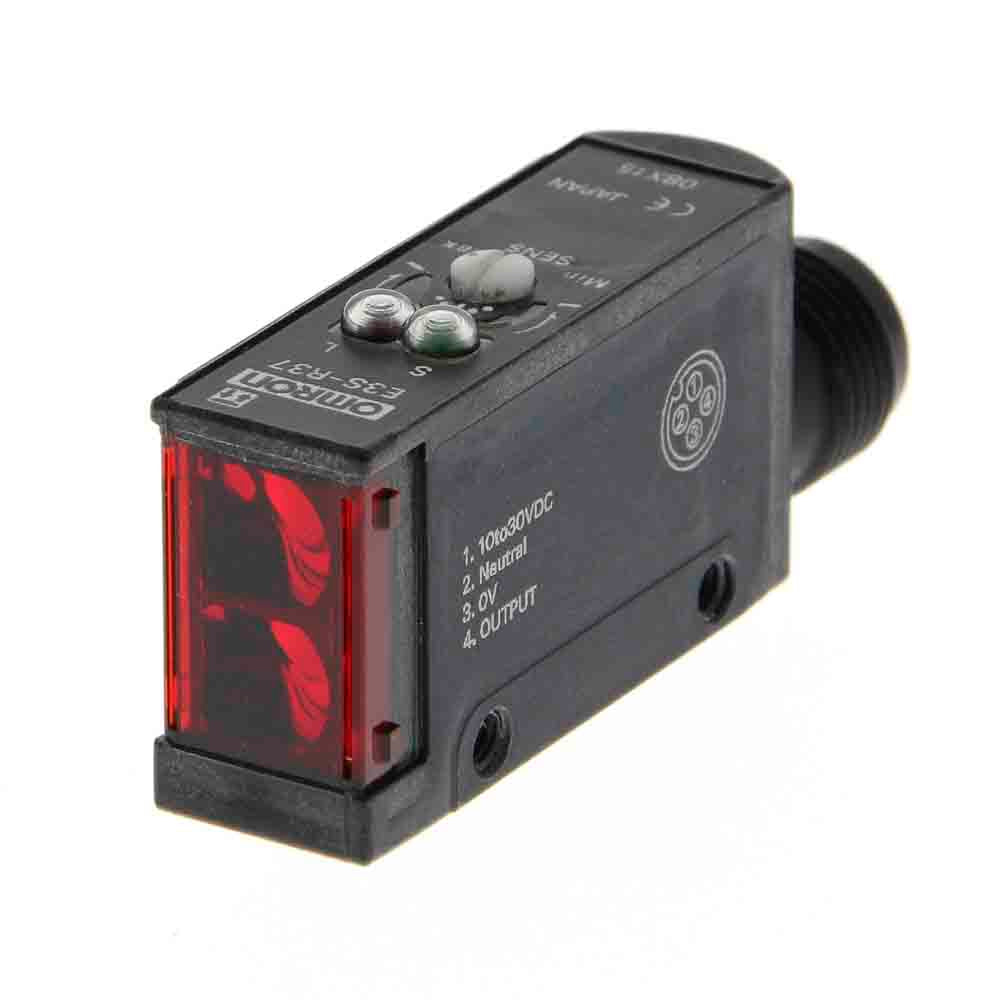

Omron Photoelectric Sensor E3SDCP21IL3OMS

Omron Photoelectric Sensor E3SDCP21IL3OMS

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
13,099.00 ฿
13,099.00 ฿
Sale Sold out

รายละเอียด Omron Photoelectric Sensor E3SDCP21IL3OMS

E3S-DC Colour Detection Photoelectric Sensors

Omron E3S-DC colour mark photoelectric sensors offer reliable detection colour markings on any type of packaging. High luminance, three-element (RGB) LED light source for greater light intensity. Highly efficient optics technology provides high power and enables stable detection even of subtle colour differences.
Handles glossy workpieces
Detects subtle colour differences
Narrow beam and large lens
คุณสมบัติ Value
Sensor Style Block
Detection Type Diffuse
Detection Range 10 mm
Output Type PUSH/PULL
Electrical Connection M12 4 Pin Connector
Maximum DC Voltage 30V
Communication Protocol IO-LINK
Terminal Type 4 Pin Connector
Light Source LED
IP Rating IP67
Maximum Current 100 mA
Interface IO-Link
Response Time 50 μs, 150 μs
Minimum Operating Temperature -10°C
Housing Material Die Cast Zinc
Mounting Type Threaded
Maximum Operating Temperature +55°C
Series E3S
Standards Met CE, IEC 60529, UL Certified
