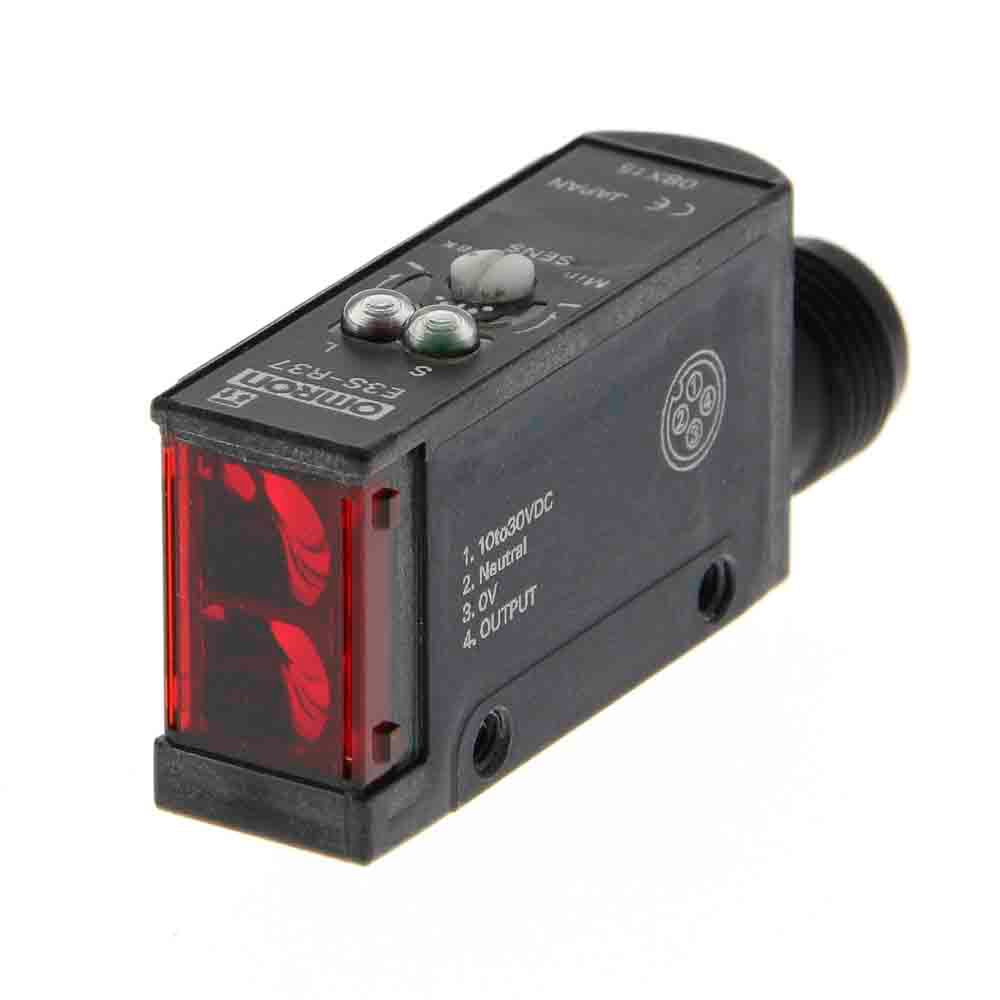

Omron Photoelectric Sensor E3SAD12
Omron Photoelectric Sensor E3SAD12
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
8,799.00 ฿
Regular price
Sale price
8,799.00 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Omron Photoelectric Sensor E3SAD12
E3S-A High Performance Sensors
Horizontal and vertical format versions
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included
| คุณสมบัติ | Value |
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 700 mm |
| Output Type | NPN |
| Electrical Connection | Pre-Wired Cable |
| Maximum DC Voltage | 30V |
| Light Source | Infrared |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | 0.5 ms |
| Series | E3S |
| Maximum Operating Temperature | +55°C |
| Housing Material | PBT |
| Minimum Operating Temperature | -25°C |
