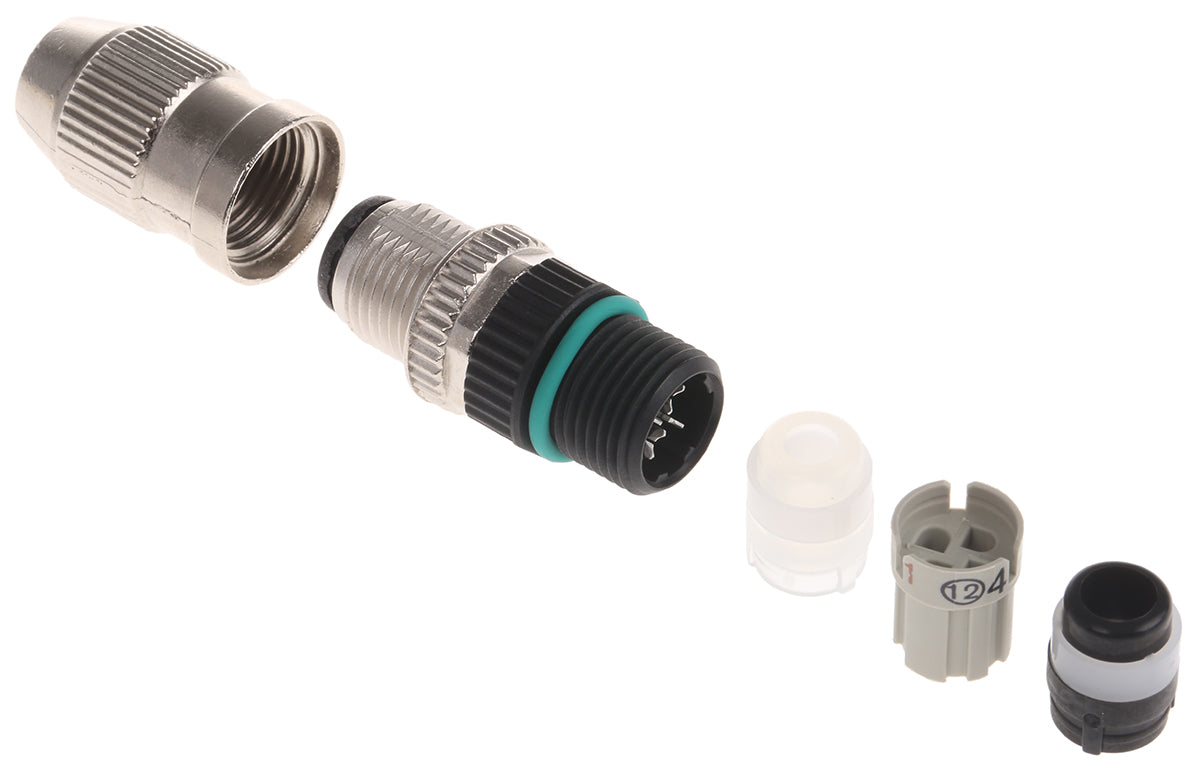

Murrelektronik Circular Connector Code 7000-78381-9780050

Murrelektronik Circular Connector Code 7000-78381-9780050

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

Murrelektronik

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,482.00 ฿
1,744.00 ฿ 1,482.00 ฿
Sale Sold out

รายละเอียด Murrelektronik Circular Connector Code 7000-78381-9780050

7/8 Inch Flange Mount Connectors


7/8 flange mount bulkhead connectors from Murr Elektronik, 5 way male and female variants with 5 attached wires at 0.75 metres in length (brown, white, blue, black, green/yellow) AWG18 with PVC insulation. The connector contacts are rated to a maximum current capacity of 9A and an overall operating voltage of a maximum of 230/400 Vac/dc. These durable 7/8 bulkhead connectors have an IP67 rating when mated and have a PG13.5 mounting set.

Operating voltage 230/400 Vac/dc max.
Maximum current 9A
IP67 once mated
Operating temperature range -25 to +85 °C

Standards

EN60529


MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors


A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.
คุณสมบัติ
Value
Number of Contacts 5
Mounting Type Bulkhead Mount
Connector Size 7/8
Plug/Socket Socket
Contact Gender Female
Termination Method Pre-Wired
IP Rating IP65, IP67
Current Rating 9.0A
Body Orientation Straight
Series 7000
Voltage Rating 250.0 V
Mating Type Plug-In
Housing Material Metal
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
